– 76 –
"How to adjust"

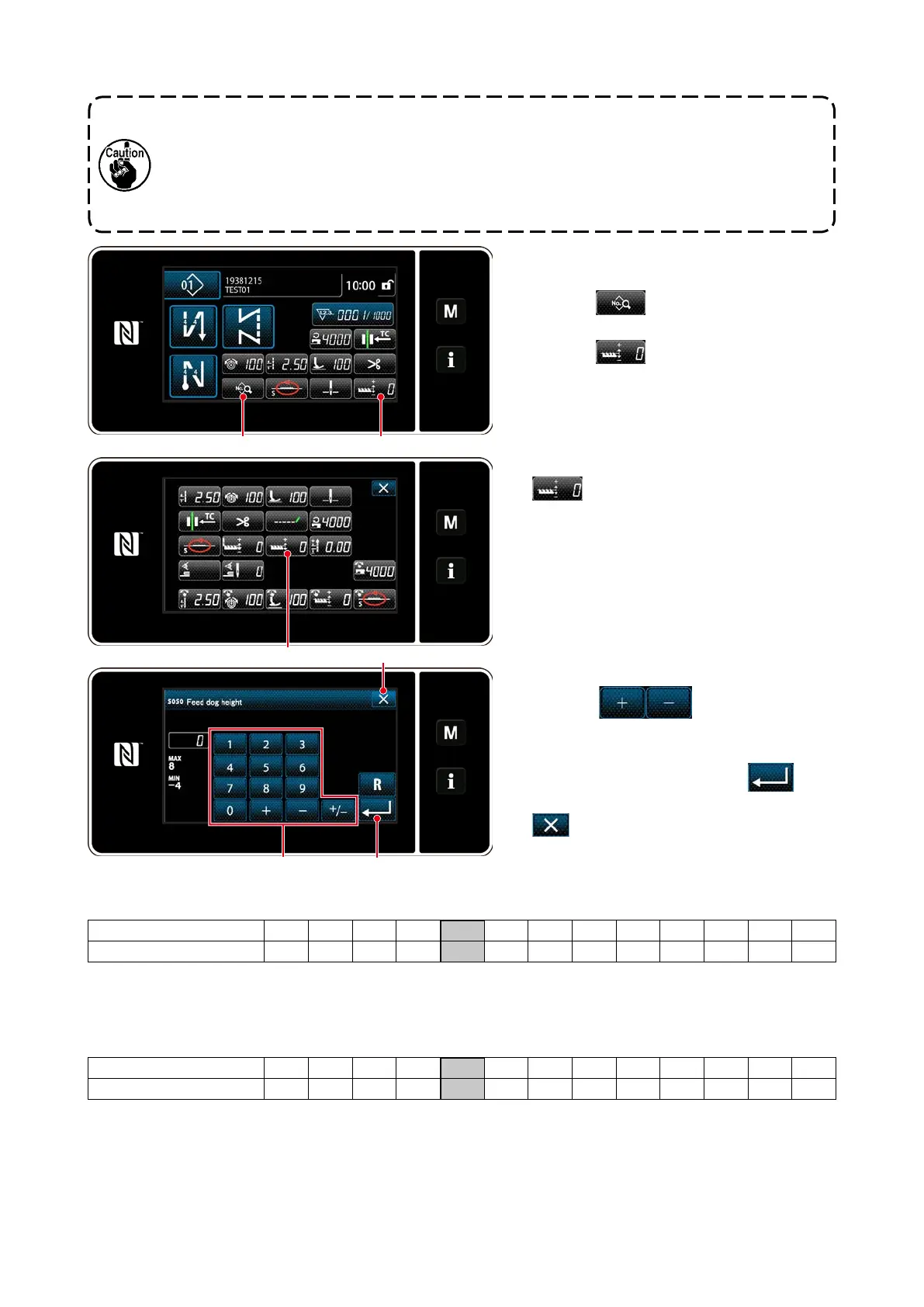

1) Display the sewing data edit screen by
pressing ❶.
Or, display "S050 Feed dog height" by
pressing ❷.
5-2. Adjusting the feed dog height
1. Be aware that interference between the throat plate and feed dog can occur depending on
the gauge used. Be sure to check the clearance in the gauge to be used. (The clearance
must be 0.5 mm or more.)
2. When you have changed the stitch length, feed dog height or feed timing, run the sewing
machine at a low speed to make sure that the gauge does not interfere with the changed
part.
2) Display "S050 Feed dog height" by pressing
❸.
3) Change the feed dog height by pressing ten
keys and ❹.
* Refer to the following for the adjustable
range of the feed dog height.
4) Conrm your entry by pressing ❺.
5) Display the sewing screen by pressing
❻.
"DDL-9000C-FMS"
Feed dog height (mm) 0.60 0.65 0.70 0.75 0.80 085 0.90 0.95 1.00 1.05 1.10 1.15 1.20
Input value on the panel -4 -3 -2 -1 0 1 2 3 4 5 6 7 8
Low ←←← ↑ →→→ High
Standard
(Factory-setting at the time of shipment)
"DDL-9000C-FSH"
Feed dog height (mm) 1.00 1.05 1.10 1.15 1.20 1.25 1.30 1.35 1.40 1.45 1.50 1.55 1.60
Input value on the panel -4 -3 -2 -1 0 1 2 3 4 5 6 7 8
Low ←←← ↑ →→→ High
Standard
(Factory-setting at the time of shipment)
* Range of input values on the panel is from -4 to 8.
❸
❶ ❷
❺❹
❻
To Next Page
