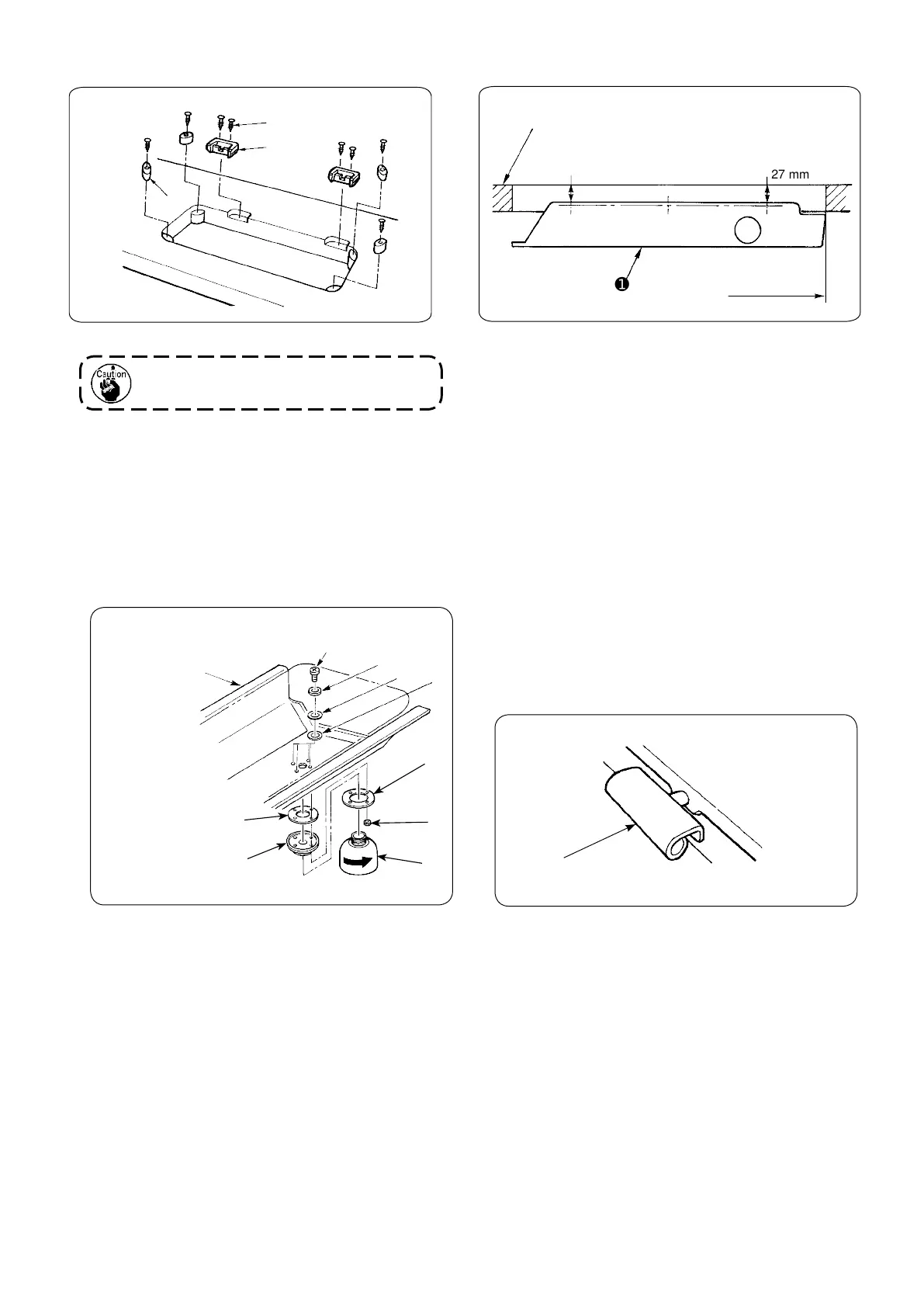

1. INSTALLATION
1) Carry the sewing machine with two persons.
2) Do not put protruding articles such as the screwdriver
and the like at the location where the sewing machine
is placed.
3) Fix the hinge seats
➊
and the support rubbers
➋
supplied with the machine on the table using nails
➌
.
Do not hold the handwheel.
Table
Align
4) supplied with the machine using six nails.Fix oil pan
– 8 –
5) Attach drain plug
➊
, oil seal
➋
and washer
➌
to the
oil pan. Attach packing
➎
and washer
➑
to screw
➍
and fix them with nut
➏
.
6) After they are fixed, screw in waste oil container
➐
into
drain plug
➊
.
Oil pan
➊
➋
➎
➍
➌
➏
➐
➑
➎
7) Fit hinge
➊
into the opening in the machine bed, and fit
the machine head to table rubber hinge before placing
the machine head on rubber seats on the four corners.
➊
– 9 –
➊
