2
.
5
m
m
10 mm
➋
➎
➍
➌
➐
➑
➏
➊
B
A
➑
➒

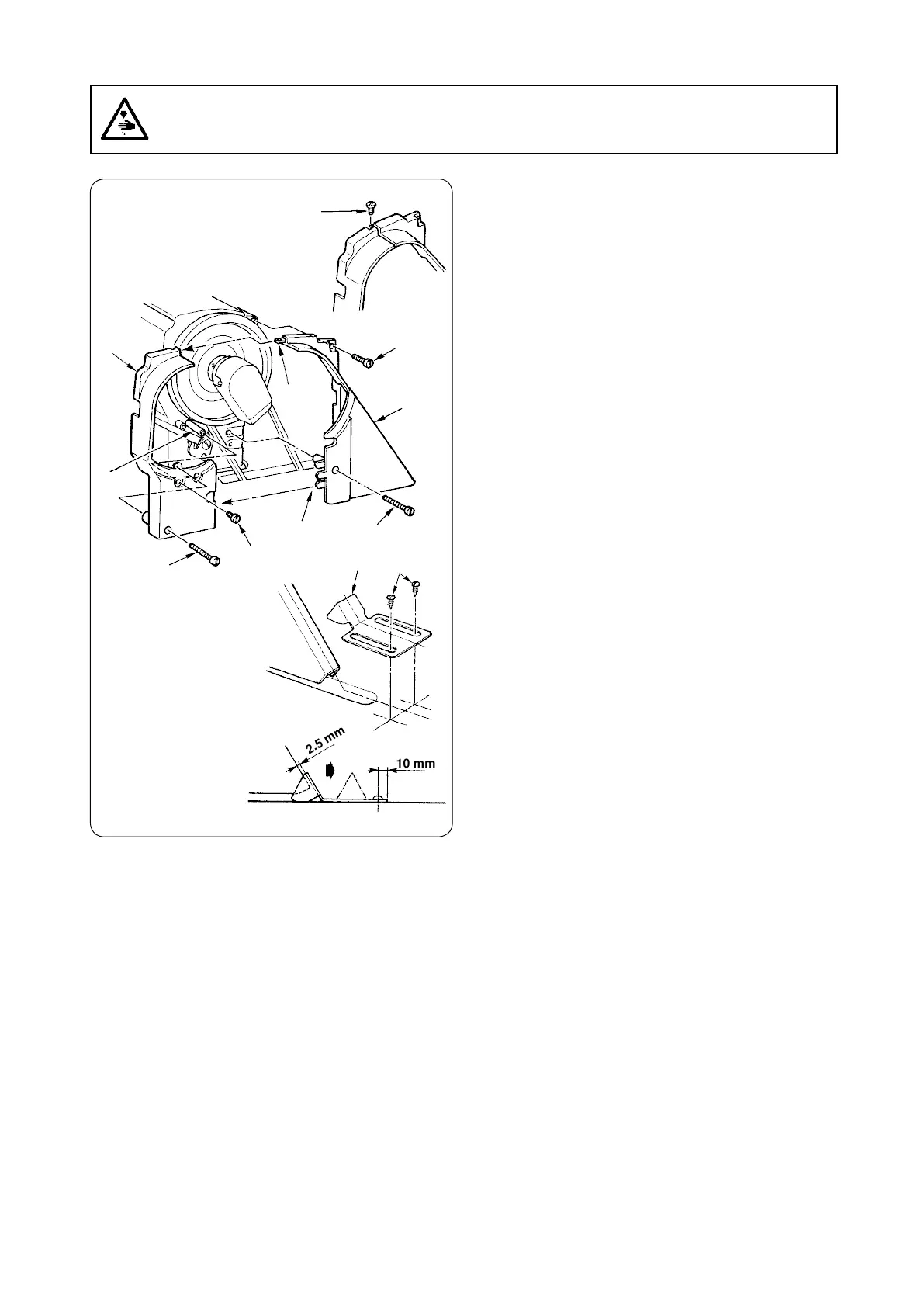

3. ATTACHING THE BELT COVER
WARNING :
To protect against possible personal injury due to abrupt start of the machine, be sure to start the follow-
ing work after turning the power off and ascertaining that the motor is at rest.
1) Attach belt cover stud
➐
to the screw hole in the arm.
2)
Fix belt cover (right)
➊
on the arm with screws
➋
and
➑
.
3) Fit belt cover (left)
➌
to notch
A
and
B
of the belt
cover (right).
4) Fix belt cover (left)
➌
with screws
➍
,
➎
and
➏
.
5) Fix belt cover auxiliary plate
➑
at the position of 10
mm from the rear end with wood screws
➒
when there
is a clearance of 2.5 mm between the belt cover and
the auxiliary plate.
6) When tilting the machine head, loosen wood screws
➒
and move the belt cover auxiliary plate in the direction
of the arrow until it stops. Then, tilt the machine head.
– 12 –
