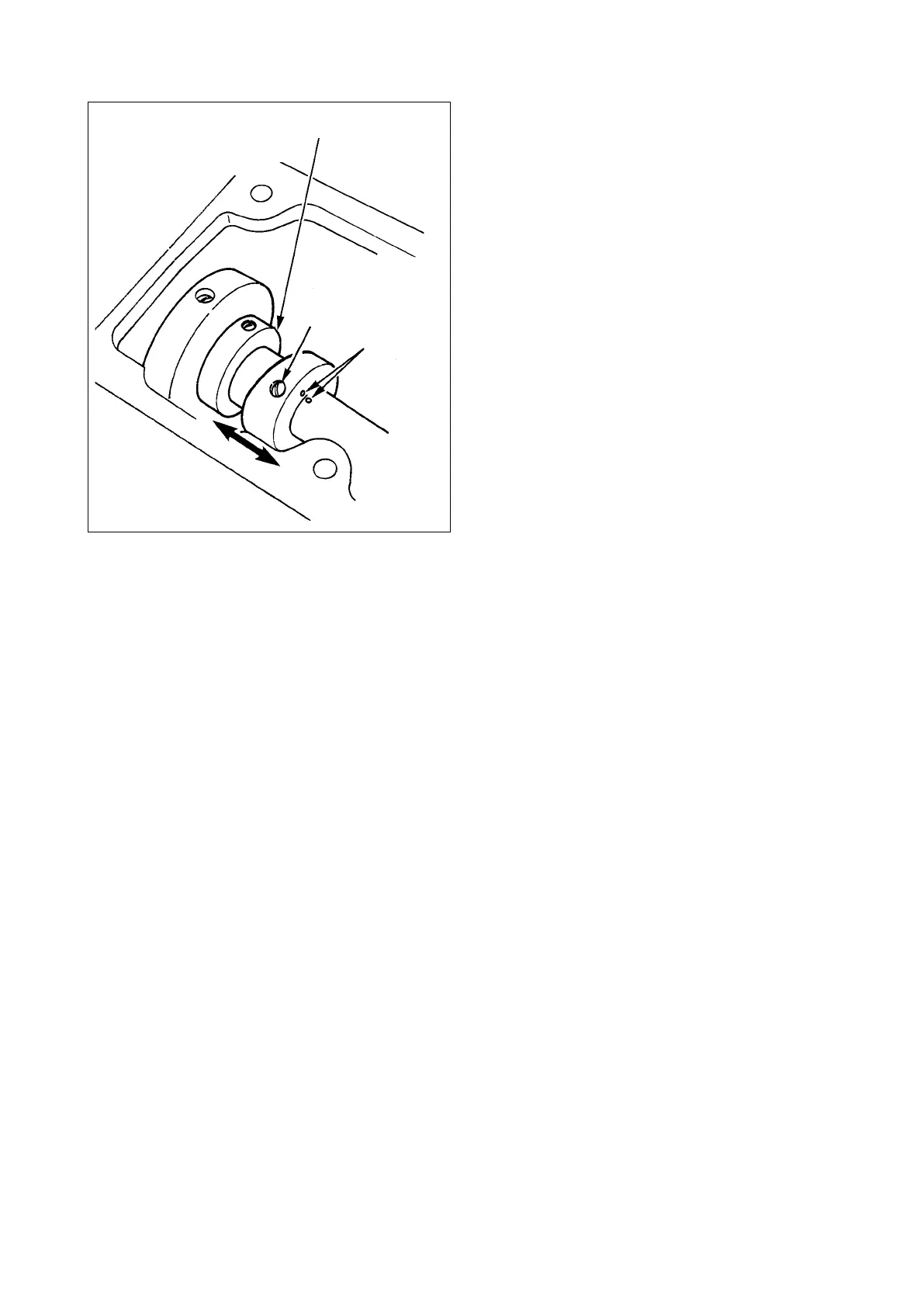

(2) Adjusting the intermediate presser stroke to 0 mm
Intermediate presser cam stopper
❶
A
B
C
1) Remove the top cover.
2) Loosen two setscrews
❶
in the intermediate
presser cam and slide the cam in the direction
of
B
by 7 to 10 mm. Then, tighten setscrews
❶
.
3) When returning the cam to its home position
again, loosen setscrews
❶
, slide the cam
in the direction of
C
, strike the end face of
the intermediate presser cam against the
intermediate presser cam stopper, and align
the engraved marker dots
A
. Then, tighten
setscrews
❶
.
