3. INSTALLATION
1) Securely install control box
❷
, power switch
❸
and pedal switch
❹
on table (14117501)
❶
. (Refer
to
"3-2. Installation procedure of the electrical box" p.5
for the electrical box.)
2) Connect the pedal with
❹
the pedal switch using the chain
.
3) Securely x the respective power cables with the staples.
4) Securely x oil drain
❼
on the table
❶
, and screw oil receiver
❽
.
5) Set cushion rubber
❺
on oil pan
❻
, and t oil pan
❻
to the holes of the table hinges (4 places)
❾
.
Then x oil pan
❻
at 4 places with wood screws.
6) Close the center portion of oil pan
❻
with the rubber plug after screwing it.
7) Strike head support bar
in the hole of table
.
8) Connect the pedal with manual pedal link A (machine head side) using chain
supplied with the
machine.

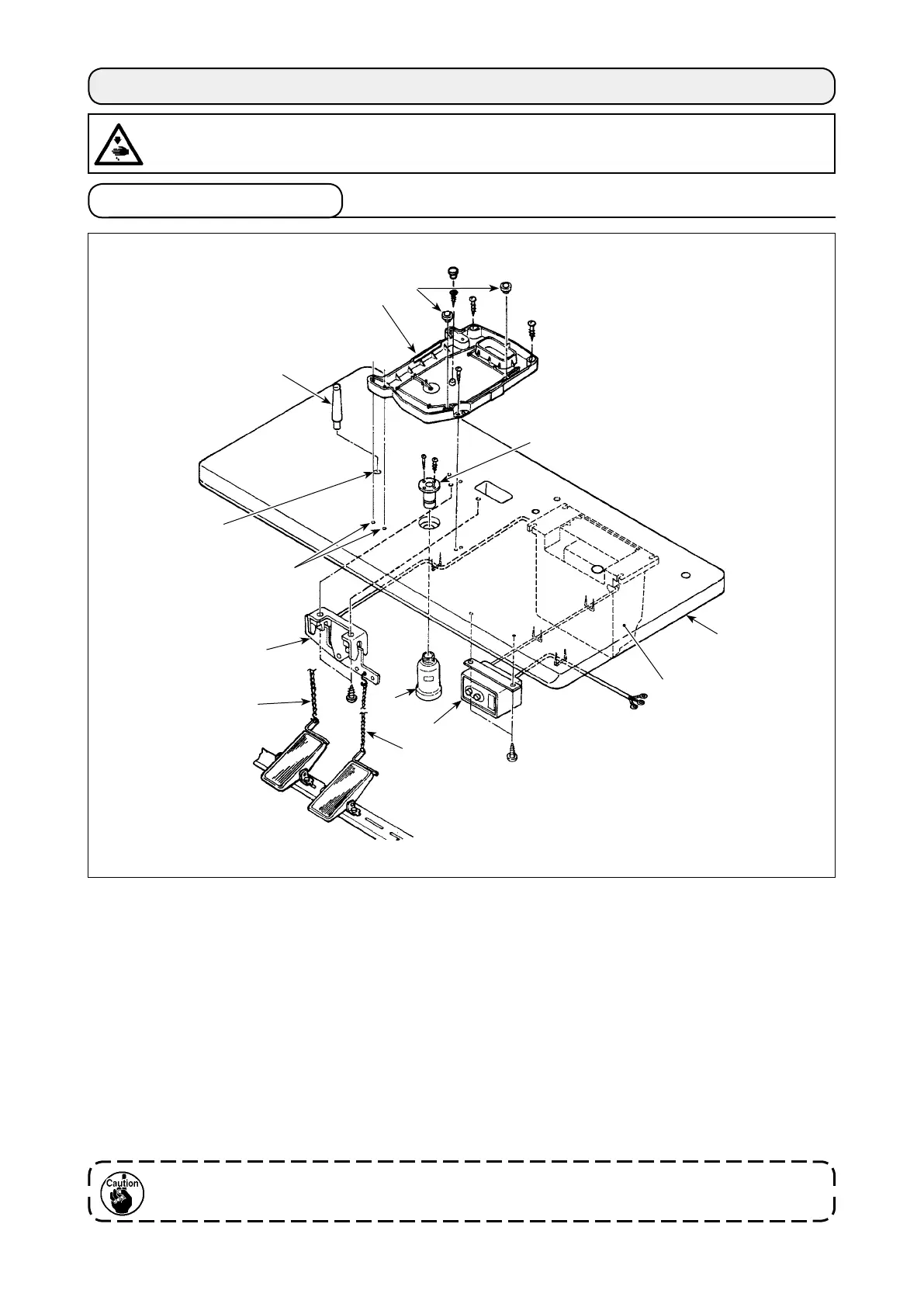

3-1. Installing the table
For pneumatic type, it is not necessary to install
❹
,
and
.
❶
❷
❺
❹
❸
❻
❼
❽
❾
Note)
Note)
Note)
DANGER :
To prevent possible accidents caused by the fall of the sewing machine, perform the work by two
persons or more when the machine is moved.
