– 74 –

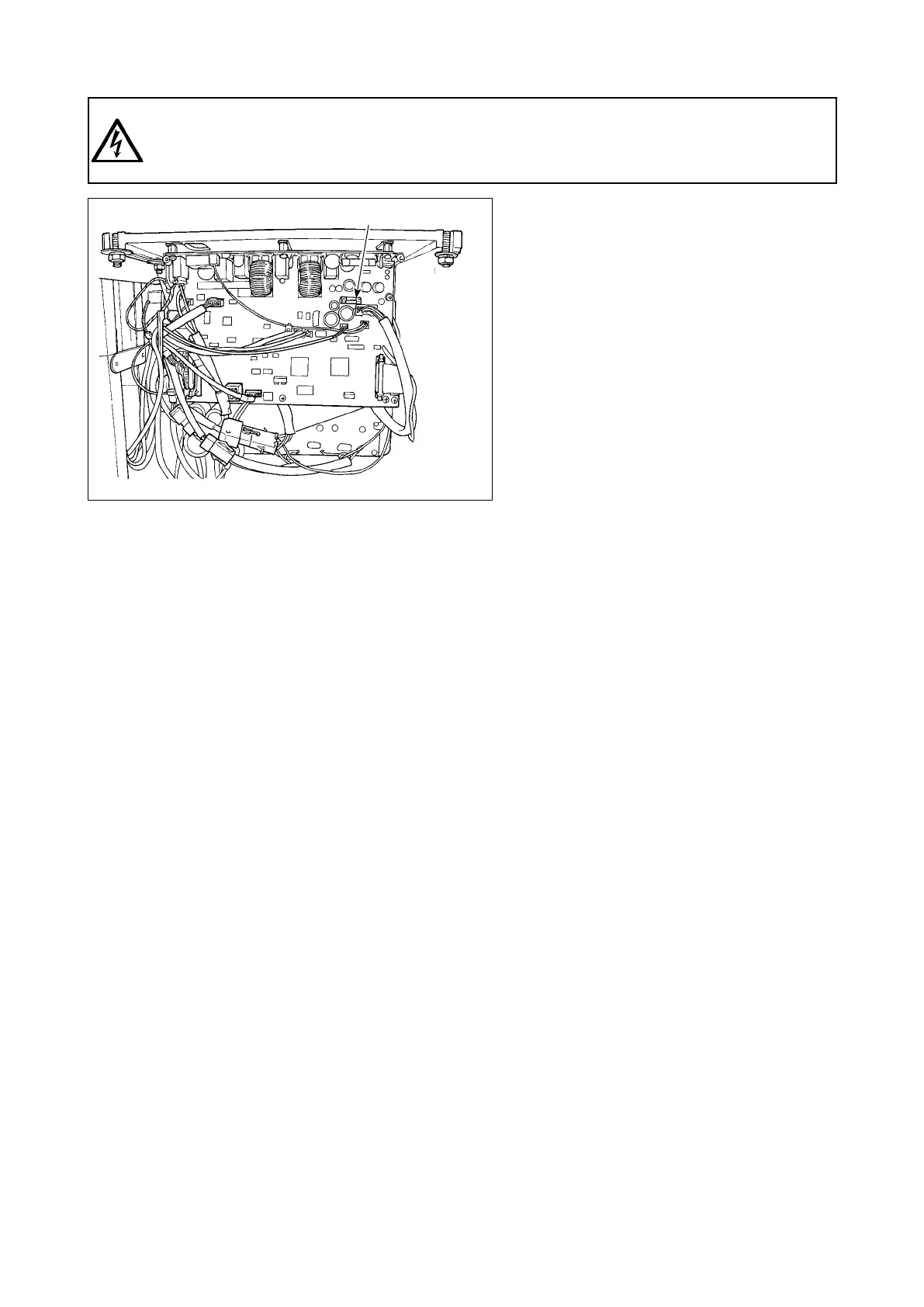

The machine uses the following one fuse :
MAIN PWB
❶
For 85V power supply protection
5A
(time-lag fuse)
DANGER :
1. T
o avoid electrical shock hazards, turn OFF the power and open the control box cover after about
ve minutes have passed.
2. Open the control box cover after turning OFF the power without fail. Then, replace with a new fuse
with the specied capacity
.
5-5. Replacing the fuse
❶
76
Table of Contents
Default Chapter
2
Table of Contents
2
1 Specifications
4
Specifications of the Sewing Machine Head
4
Specifications of the Control Box
4
2 Setup
5
Setting up the Sewing Machine
5
Adjusting the Sewing Machine Head
5
Changing the Position of the Operation Panel
6
Installing the Thread Stand
6
Oiling and Draining of Oil
7
3 Preparation before Sewing
8
Attaching the Needle
8
Threading the Machine Head
9
Adjusting the Thread Tension
10
Adjusting the Stitch Length
11
Adjusting the Needle Guard
12
Adjusting the Looper Thread Cam
13
Adjusting the Feed Dog Height
13
Adjusting the Take-Up Thread Tension Control Lever
14
Adjusting the Position of the Intermediate Tension Release Lever and Needle Thread Tension Controller
14
How to Adjust the Cloth Puller
15
Adjusting the Cloth Puller Belt and Its Longitudinal Position
15
Adjusting the Inclination of the Cloth Puller Belt
16
LED Hand Light
16
To Use the Sewing Machine with a Cloth Puller for Sewing Heavy-To Medium-Weight Materials
17
Replacing the Feed Dog
17
Changing the Throat Plate
17
Adjusting the Difference in Height of the Presser Foot
18
Replacing the Needle Thread Guide
18
Table of Replaceable Gauges
19
Adjusting the Material Edge Detector
20
Needle Cooler
21
Adjusting the Position of the Blow Pipe
21
Adjusting the Air Flow
21
Chain-Off Thread Cutter (Suction of Thread Waste)
21
4 How to Use the Operation Panel
22
Explanation of the Operation Panel Switch
22
Operation to be Done at First
23
Selection of the Language
23
How to Select a Sewing Pattern
26
How to Change the Sewing Data
27
Method of Changing the Sewing Data
27
Method of Selecting a Specific Sewing Data Item
27
How to Change the Part Number, Process or Comment for the Sewing Pattern Data
29
How to Carry out Teaching of the Multi-Layered Section of Material
30
Sewing Data on a Free Sewing Pattern
31
How to Edit a Step Sewing Pattern
37
How to Carry out the Teaching of the Number of Stitches
41
List of Sewing Data
42
How to Edit/Check the Data Other than Sewing Data
47
Memory Switch Data
48
Counter Function
53
How to Copy / Newly Create a Pattern
57
How to Use the Warning Function
59
How to Use the F Key
62
Checking the Version Information
65
Adjusting the Contrast of the LCD of the Operation Panel
65
Communication Function
66
Information
67
Simple Lock
67
List of Errors
68
External Interface
72
Usb
72
Nfc
73
5 Care
74
Oil Quantity in the Oil Tank
74
Lubricating the Chain off Thread Cutter
74
Changing the Cloth Puller Belt
75
Cleaning
76
Replacing the Fuse
77
