Juniper J-series Services Router J4350 User Manual

Table 29: LEDs for Dual-Port Fast Ethernet PIM
DescriptionStateColorLabel
Online and link is active.On steadilyGreen (100 Mbps)
Yellow (10 Mbps)
LINK/SPEED
Link is unavailable.DisconnectedRed
Online with network traffic.BlinkingGreen
ACTIVITY
Online without traffic.On steadilyGreen
For alarms, see the configuring and monitoring alarms information in the J-series
Services Router Administration Guide.
4-Port Fast Ethernet ePIM
You can install 4-Port Fast Ethernet ePIMs in any of the high-speed slots, as follows:
■ J4350—Install up to two 4-Port Fast Ethernet ePIMs in slots 3 and 6.
■ J6350—Install up to four 4-Port Fast Ethernet ePIMs in slots 2, 3, 5, and 6.
NOTE: For 4-port Fast Ethernet ePIMs, if you apply a CoS scheduler map on outgoing
(egress) traffic, the router does not divide the bandwidth appropriately among the
CoS queues. As a workaround, configure enforced CoS shaping on the ports.
The 4-Port 10/100-Mbps Fast Ethernet ePIM, shown in Figure 35 on page 61, has
four physical Fast Ethernet ports.

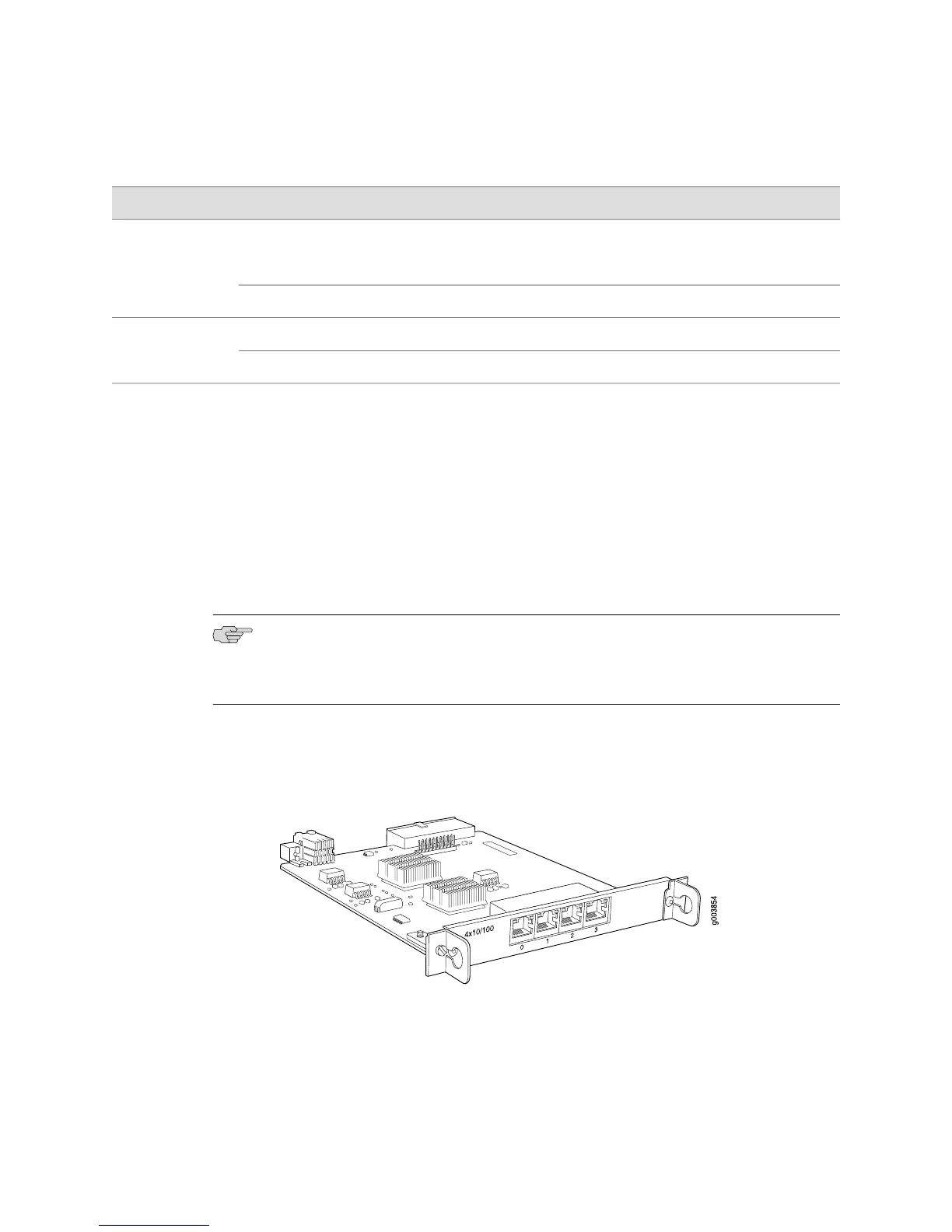

Figure 35: 4-Port Fast Ethernet ePIM
The 4-Port Fast Ethernet ePIM provides the following key features:
■ Full-duplex and half-duplex modes.
■ Autonegotiation through medium-dependent interface (MDI) and MDI crossover
(MDI–X) support.
Field-Replaceable PIMs ■ 61
Chapter 3: PIM and VoIP Module Overview
