For more information about configuring Ethernet pseudowires as part of VPLS, see the
Junos OS Feature Guides.
NOTE: This topic does not present exhaustive configuration listings for all
routers in the figures. However, you can use it with a broader configuration
strategy to complete the MX Series router network configurations.
Consider the VPLS network shown in Figure 8 on page 52.

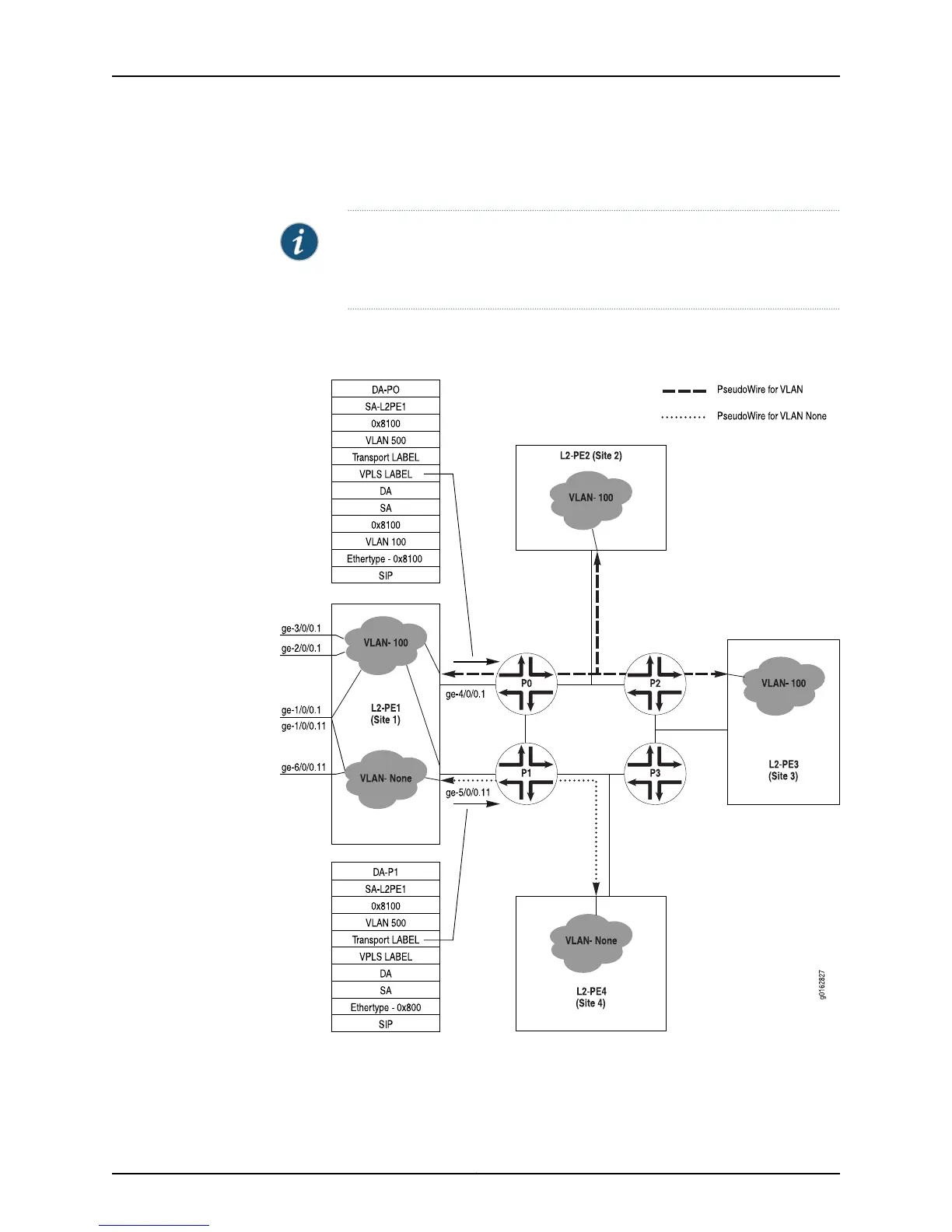

Figure 8: VLAN Tags and VPLS Labels
The Layer 2 PE routers are MX Series routers. Each site is connected to two P routers for
redundancy, although both links are only shown for L2-PE1 at Site 1. Site 1 is connected
to P0 and P1, Site 2 is connected to P0 and P2 (not shown), Site 3 is connected to P2
Copyright © 2012, Juniper Networks, Inc.52
Junos OS 12.1 MX Series 3D Universal Edge Routers Solutions Guide
