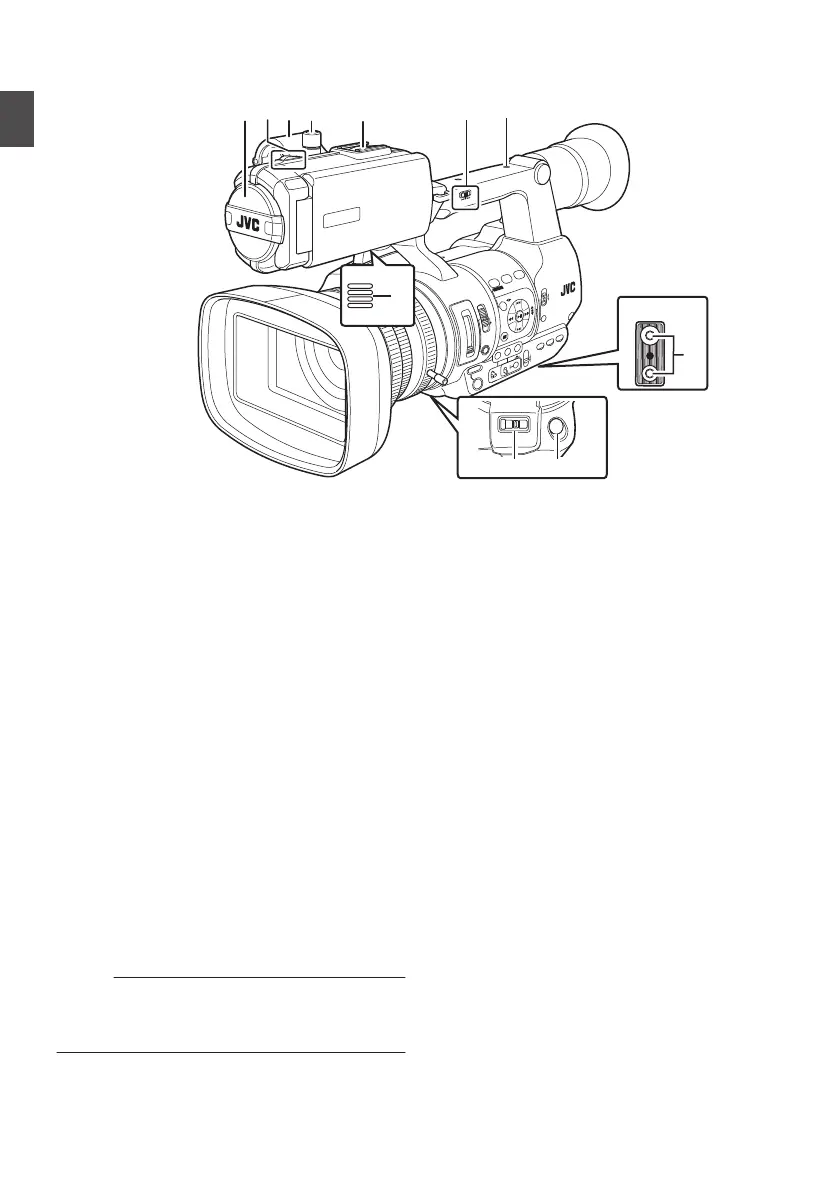

Names of Parts
.
SERVO MANUAL
ZOOM
REC
H
E
IJ
G
DACB
K
F
FIX VAR OFF
FOCUS ASSIST/1
OIS/2
LOLUX/3
MENU/THUMB
AE LEVEL
FOCUS
ND FILTER
1/64
1/1
6
1/4
OFF
POWER
MARKER/6
ZEBRA/5
AE LOCK/4
SHUTTER
WHT BAL
CANCEL
PUSH
AU
TO
IRIS
GAIN
FULL AUTO
PUSH AUTO
PRESET
B
L
M
H
A
ON
OFF
ON
MANU
∞
MODE
OFF
(CHG)
SLOT
A/B
TIME CODE
AUTO
Bottom
A
Built-in Microphone
(A P63 [Audio Recording] )
B
Tally Lamp
(
A P38 [Tally Lamp] )
(A P181 [Blinking of the Tally Lamp] )
C
Microphone Holder
(A P27 [Attaching an External Microphone] )
D
Microphone Holder Lock Knob
(A P27 [Attaching an External Microphone] )
E
Shoe
For mounting separately sold lights and
accessories.
F
[FIX/VAR/OFF] Zoom Speed Switch
(A P48 [Zoom Operation] )
For switching the zoom speed of the zoom lever
a at the handle.
G
Accessory Mounting Screw Hole
H
Tripod Mounting Hole
(A P27 [Attaching the Tripod] )
I
[REC] Record Trigger Button
Starts/stops recording.
You can also change its function in the menu.
(A P100 [ Front REC ] )
Memo :
0
This button is interlocked with the [REC] button
R on the
grip and the [REC/HOLD] button Z at
the top of the handle.
J
[ZOOM SERVO/MANUAL] Zoom Operation
Servo/Manual Switch
Set to “SERVO” when using the zoom lever at
the grip
j or the zoom lever at the handle a.
(A P48 [Zoom Operation] )
K
Monitor Speaker
(A P88 [Audio Output during Playback] )
L
Viewfinder
(A P36 [Adjusting the LCD Monitor and
Viewfinder] )
M
Visibility Adjustment Lever
(A P36 [Adjusting the LCD Monitor and
Viewfinder] )
N
Eyecup
Prevents external light from entering the
viewfinder screen and cameraman’s vision.
(A P27 [Attaching the Large Eyecup] )
O
Battery
(A P28 [Using a Battery Pack] )
P
[x] Headphone Jack (Φ3.5 mm)
(A P65 [Monitoring Audio Sound During
Recording Using a Headphone] )
Q
[AUX] AUX Input Terminal (Φ3.5 mm)
For connecting to receiver such as wireless
microphone.
20
Introduction
