Precautions for the Battery Operation
●
Do not remove the battery when the [POWER] switch is
A
ON
B
.
●
Do not insert or remove the DC cable when the battery is in
use.
●
Leaving the camera recorder unused with the battery inside
will deplete the battery power even if you set the [POWER]
switch to
A
OFF
B
. Remove the battery if you are not using the
camera recorder.

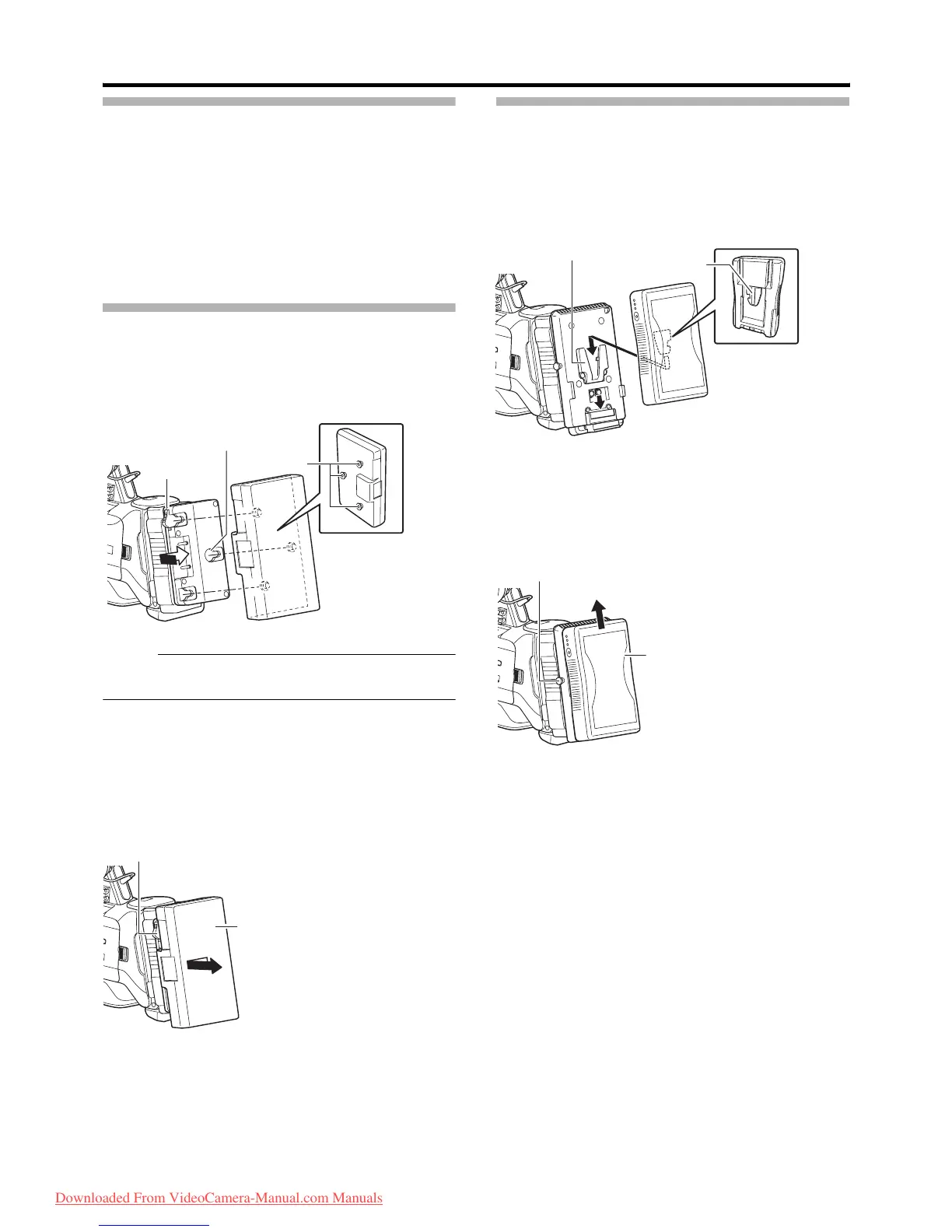

Attaching the Battery
(GY-HM790CHU/GY-HM790U)
Use the Dionic90 (Anton Bauer) battery.
1
Align the battery guide pins (x3) with the battery,
adapter, and guide hole, and insert straight.
Memo :
● If the guide pins are not inserted straight, the battery will
not be attached correctly.
2 Slide the battery toward the SDHC card cover side
panel until it snaps into place.
䡵 Detaching the Battery
Press down the release lever and slide the battery toward
you to detach it from the camera recorder.
Attaching the Battery
(GY-HM790CHE/GY-HM790E)
Use the Endura-HL9 (IDX) battery.
1
Attach the battery
Face the terminal downward and attach the V mount of the
battery onto the V mount attachment bracket of the camera
recorder.
2 Press down the battery until it snaps into place.
䡵 Detaching the Battery
Press down the release lever and slide the battery upward to
detach it from the camera recorder.
Release Lever
Guide Hole (x3)
Guide Pins
Battery
LCD Screen Side
Release Lever
Battery
V Mount
V Mount Attachment Bracket
Release Button
Battery
