54

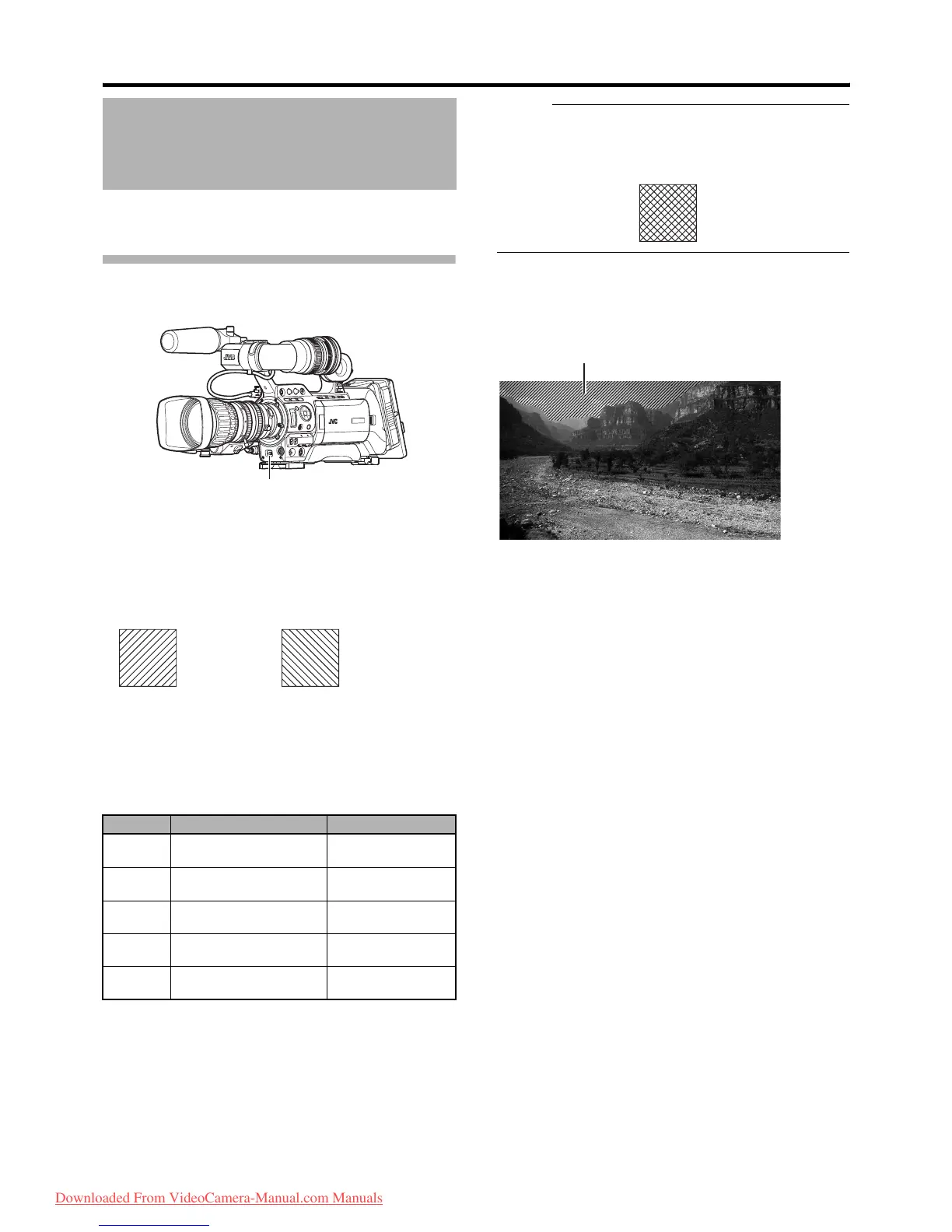

Shooting
When the luminance level range for displaying zebra patterns
is specified, diagonal lines (zebra pattern) are displayed at
areas with the specified luminance levels during shooting.
Specify the brightness (luminance) level
range for displaying zebra pattern
Specify the upper (Top1, Top2) and lower (Bottom1,
Bottom2) limits of the luminance level.
1 Set the zebra display pattern.
● Select the display pattern in [LCD/VF] menu B
[Shooting Assist] B [Zebra].
2 Specify the brightness (luminance) level range for
displaying zebra pattern.
Specify the upper (Top1, Top2) and lower (Bottom1,
Bottom2) limits of the luminance level in [LCD/VF] menu B
[Shooting Assist] B [Zebra].
Memo :
● ATo p2 B and ABottom2B cannot be set if [Zebra] is set to
A1PatternB.
● When the specified range of two zebra patterns overlaps,
the two zebra patterns overlap and are displayed in a grid.
3 Display the zebra pattern.
Set the [ZEBRA ON/OFF] switch in front of the camera
recorder to AONB to display the zebra pattern at the specified
range.
Setting Zebra Pattern
Item Settings Options
Zebra Zebra display pattern 1Pattern
2Patterns
Top1 Upper luminance limit for
displaying [Zebra1]
5 % - 100 %, Over
(in 5 % increments)
Bottom1 Lower luminance limit for
displaying [Zebra1]
0 % - 100 %
(in 5 % increments)
Top2 Upper luminance limit for
displaying [Zebra2]
5 % - 100 %, Over
(in 5 % increments)
Bottom2 Lower luminance limit for
displaying [Zebra2]
0 % - 100 %
(in 5 % increments)
[ZEBRA ON/OFF] Switch
[Zebra1] Display
[Zebra2] Display
Zebra Pattern
