Preparation
11

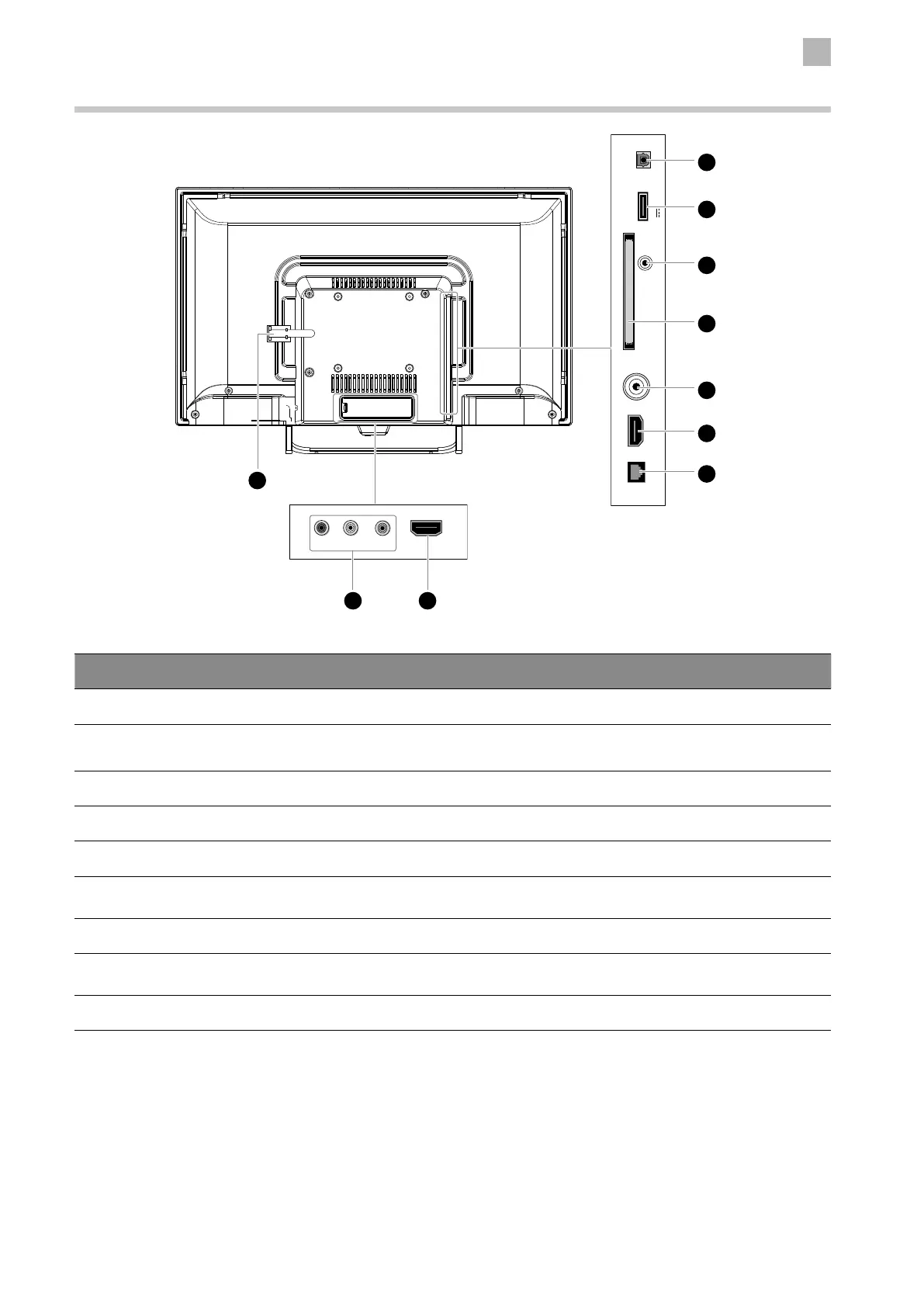

Rear View and Sockets
Item Description
1 Digital Output Connects to the audio socket on the digital/standard 5.1 audio system.
2 USB
Allows the insertion of a USB storage device to play video, audio and photo files (USB
mode) and record DTV programmes on to a USB storage device.
3 HEADPHONES Connects to the headphones.
4 COMMON INTERFACE Allows the insertion of a Common Access Module.
5 RF Aerial Connects to the aerial socket on the wall with the RF coaxial cable.
6 HDMI1(ARC) / HDMI2
Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
7 LAN Connects your TV to the internet router by an Ethernet cable.
8 VIDEO / AUDIO (L/R)
Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
9 Cable Tie Bundle the connecting cables to prevent stepping on them before wall mounting.
HDMI1(ARC)R L VIDEO
LAN RF
COMMON INTERFACE (CI)
HEADPHONES
USB
5V 500mA
Digital Output
HDMI2
1
2
4
3
5
6
7
68
9
