(No.YA702<Rev.001>)3-5
EXPLODED VIEW PARTS LIST -2

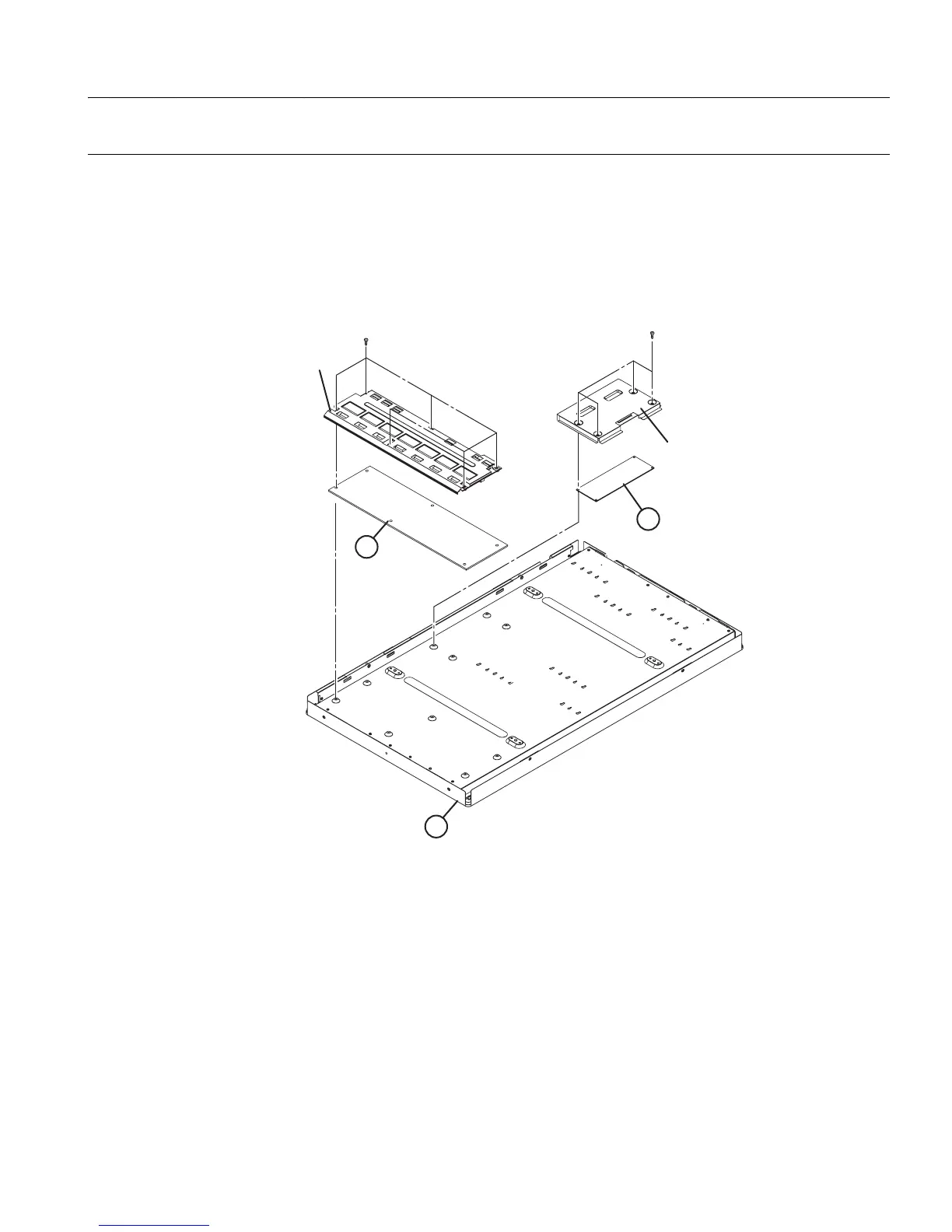

EXPLODED VIEW -2
Ref.No. Part No. Part Name Description Local
3 QLD0566-001-JMT LCD PANEL UNIT Inc.3A-3B(T315XW02 VL)
3A AU-55.31T03.C03 CONTROL PWB
3B AU-19.31T03.007 INVERTER PWB
3A
3B
3
LCD CONTROL PWB COVER
INVERTER PWB COVER
