English 5.906-246.0 Rev. 01 (09/14) 5
– Softgrip-Easypress gun with improved ergonomics
– Highest operating comfort thanks to improved, continu-
ous pressure and water volume regulation
– Servopress rotary regulator with ceramic insert
– Improved mobility on stairs thanks to large full rubber
wheels (Ø 250mm)
– Easy oil level check from the outside, without removal
of the casing cover
This service manual describes the following appliances:
1.524-xxx
– HD 6/16-4 M
– HD 6/16-4 MX
– HD 7/18-4 M
– HD 7/18-4 MX
– HD 9/19 MX
– HD 9/19 M
– HD 9/20-4 M
– HD 9/20-4 MX

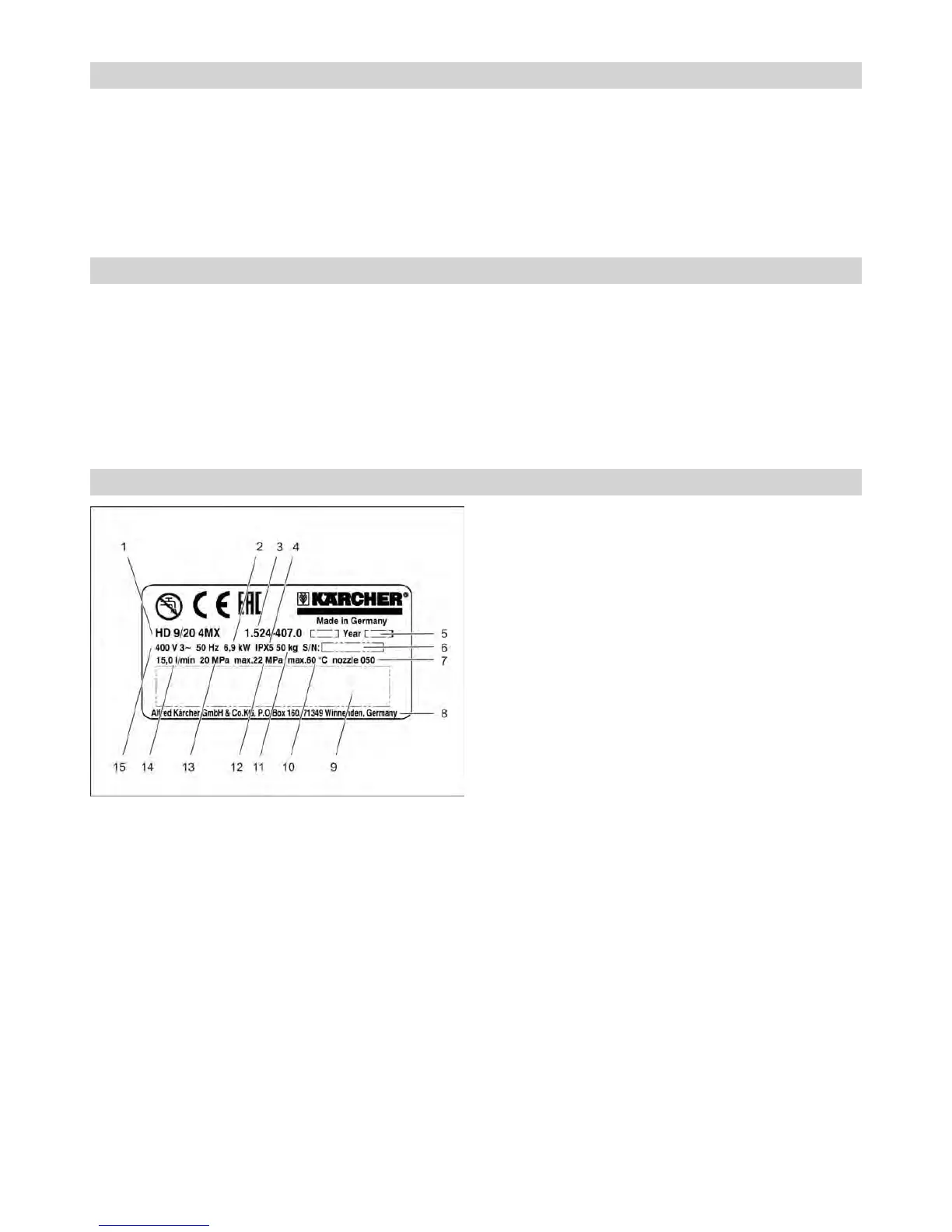

The type plate is located on the right side of the appliance.
1 Appliance description
2 Connected load
3 Part number
4 Type of protection
5 Year of manufacture
6 Serial number
7 Nozzle size
8 Address of manufacturer
9 Bar code. Contains part and serial number.
10 Max. feed temperature
11 Typical operating weight
12 Max. operating over-pressure
13 Working pressure
14 Flow rate
15 Main Supply
4.5 Other features
4.6 Field of application
4.7 Type plate
