22 English 5.906-246.0 Rev. 01 (09/14)

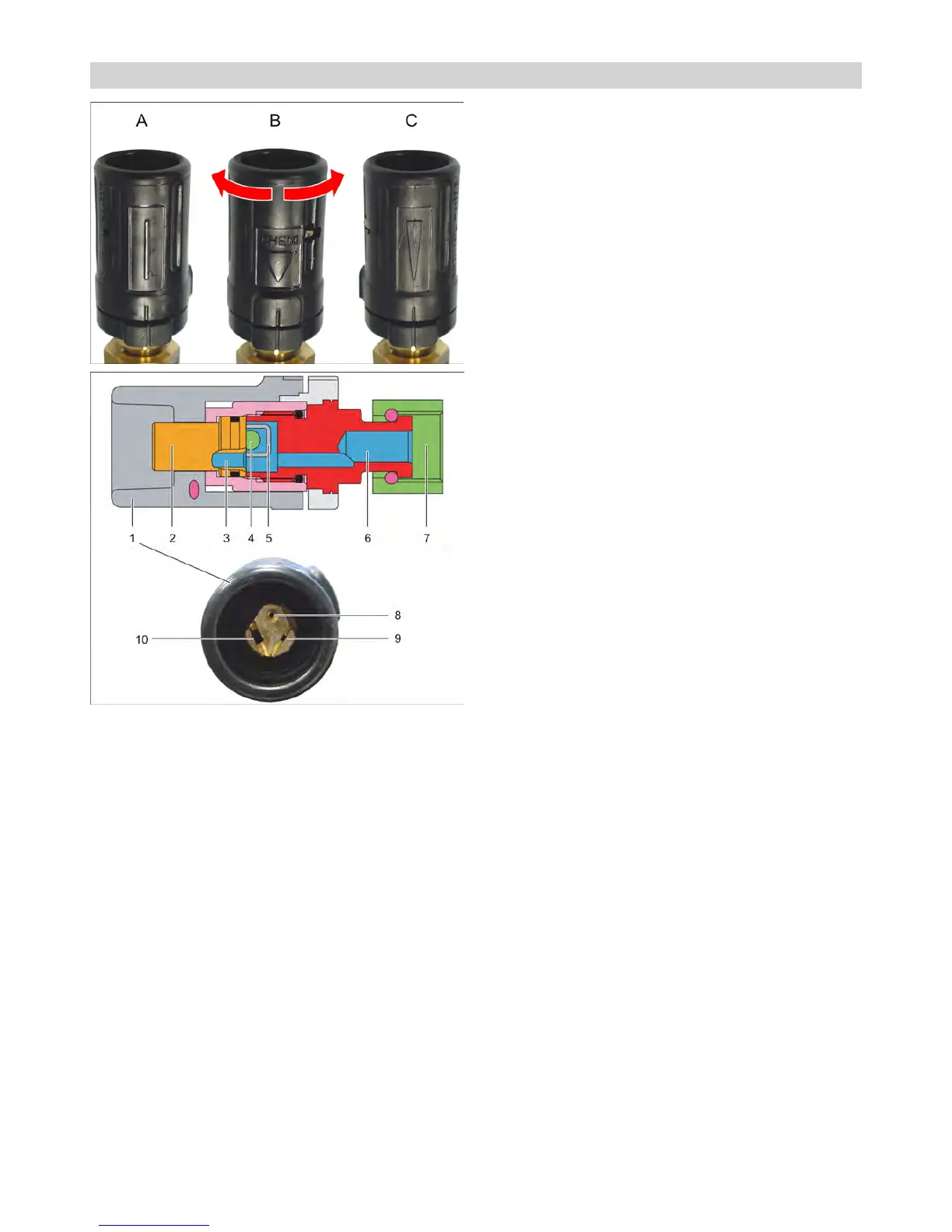

A High-pressure round jet
B Flat low pressure spray (CHEM) for operating using de-
tergents or cleaning at low pressure.
C High pressure flat spray (25°) for large dirt areas
The triple nozzle can be adjusted to three different set-
tings. By rotating the nozzle head, you can switch between
the chemical nozzle and the high pressure nozzles. The
symbols on the nozzle head show which nozzle type is se-
lected.
To adjust the required type of nozzle, the trigger gun must
be closed and the nozzle head must be turned to the posi-
tions shown (A, B, C).
1 Adjustable nozzle head
2 Nozzle
3 Nozzle channel
4 Valve ball 2x
5 Vavle ball cage
6 High pressure channel
7 Spray lance connection
8 High-pressure round jet
9 High-pressure flat jet
10 Low-pressure flat jet
6.6 Triple nozzle
