Kärcher HD 9/19 M / MX User Manual

English 5.906-246.0 Rev. 01 (09/14) 9

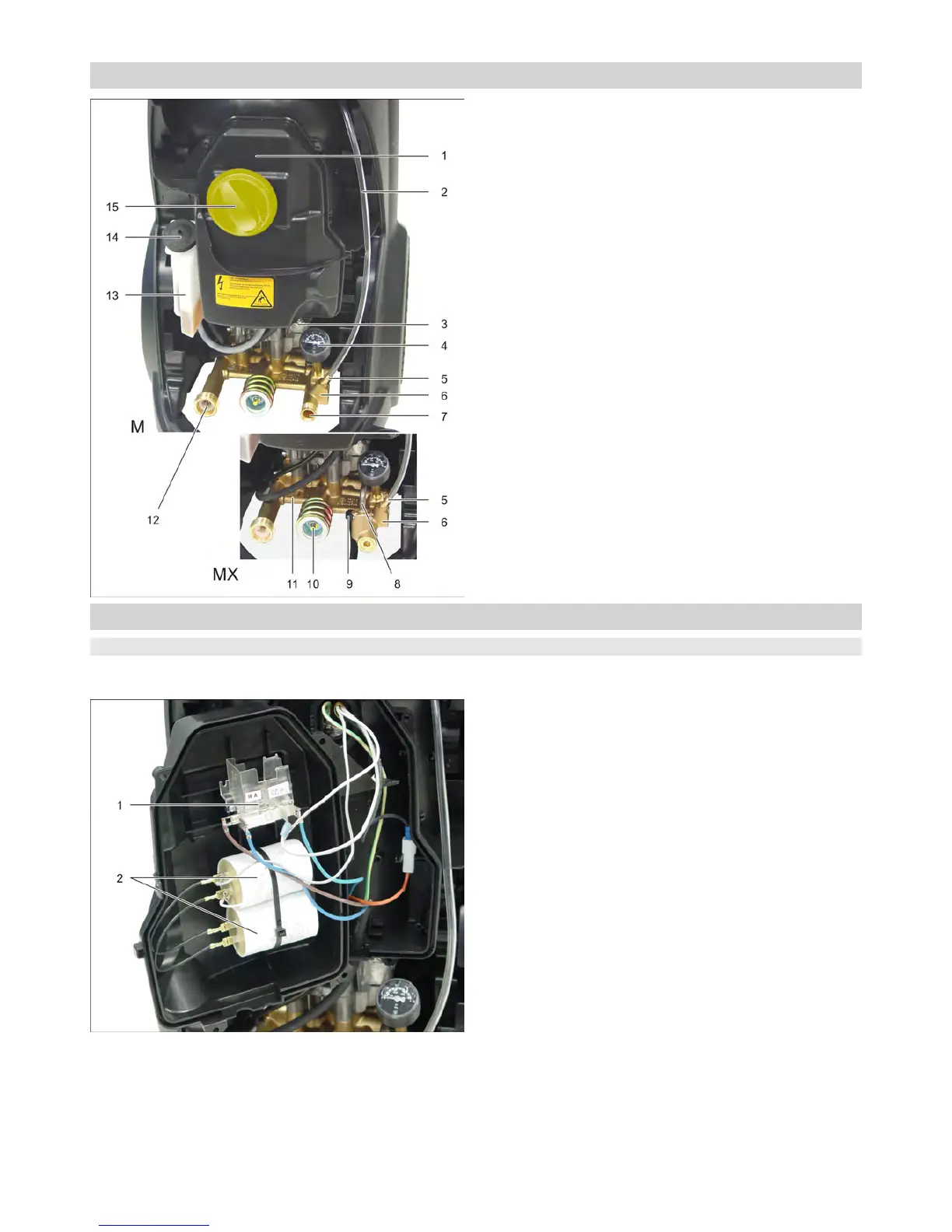

1 Electronics system
2 Detergent hose
3 Pump motor
4 Manometer
5 Detergent hose with check valve
6 Detergent injector
7 High pressure connection
8 High pressure line
9 Safety clip, high pressure line.
10 Overflow valve
11 Pump head
12 Connection for water supply with filter
13 Oil tank
14 Closing head
15 Power switch
HD 6/16-4
Version 1
5.4 Front view (without cover)
5.5 Front view (electric box opened)
5.5.1 1-phase device
1 Power switch Q1
2 Capacitors
