10 English 5.906-246.0 Rev. 01 (09/14)
HD 6/16-4
Version 2
HD 7/18-4
HD 9/19
HD 9/20-4

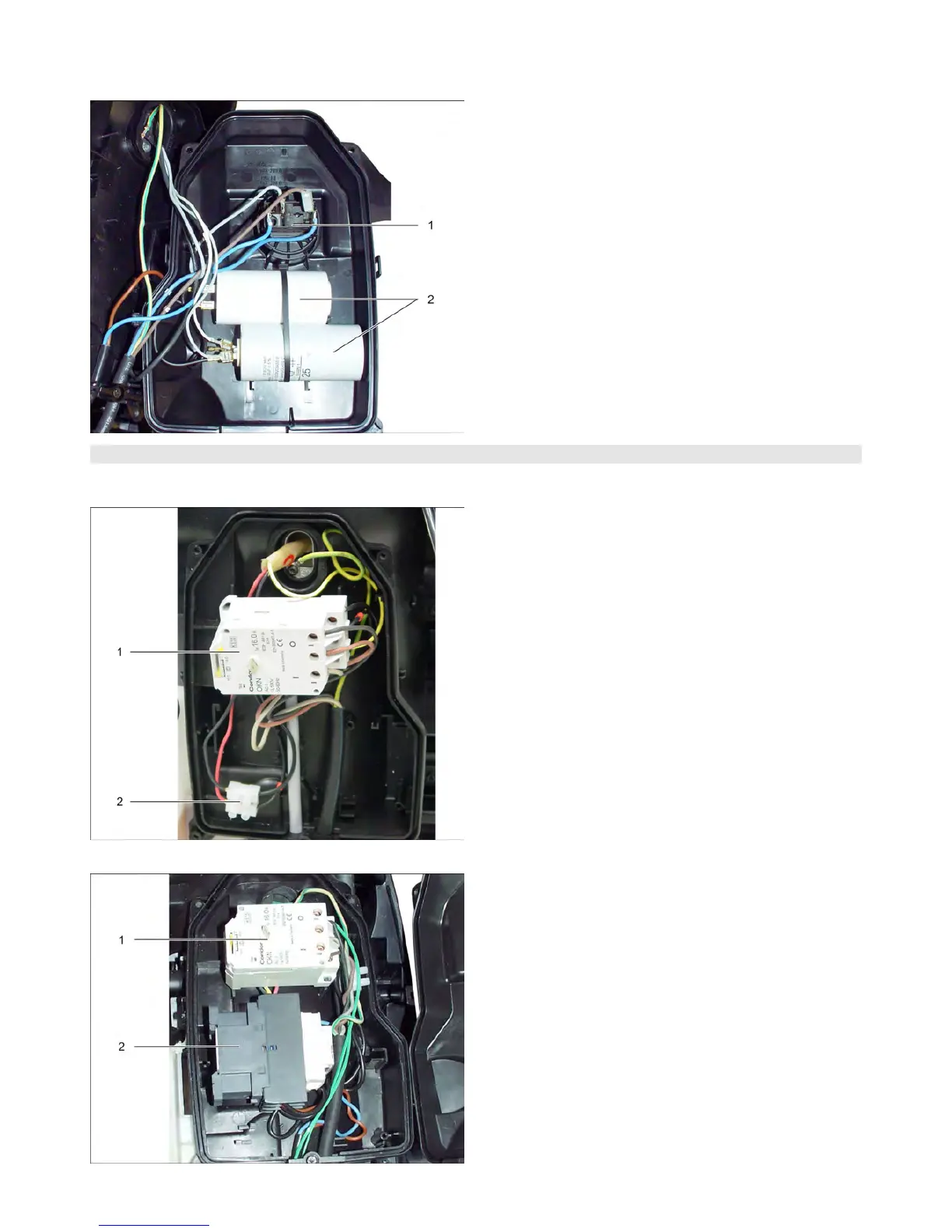

1 Power switch Q1
2 Capacitors
5.5.2 3-phase device
1 Power switch Q1
2 Pressure switch
connection
1 Power switch Q1
2 Contactor K1
