Keithley DMM6500 Calibration Manual

Model DMM6500 6½-Digit Multimeter with Scanning Calibration and Adjustment Manual Section 2: Performance verification
DMM6500-905-01 Rev. A/July 2018 2-33
Capacitance verification
To compensate for capacitance offset of the cable and 1 µF thru 100 µF decade box:
1. Connect the DMM6500, shielded banana cable, banana to dual BNC cable, and 1 µF through
100 µF decade capacitor box as shown in the following diagram.

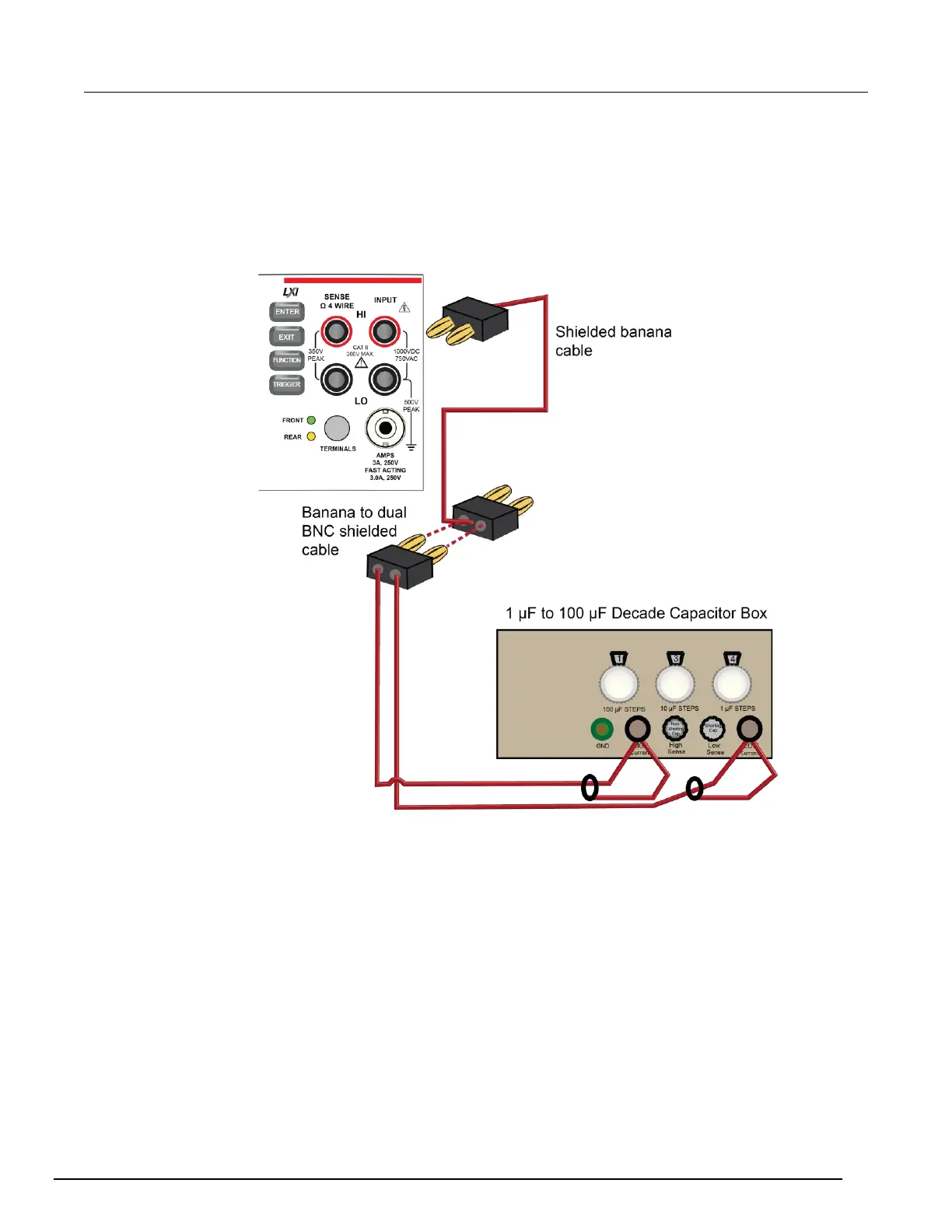

Figure 16: Connect DMM6500 to decade capacitor box
2. Set the decade capacitor box to 0 F.
3. On the DMM6500, press the FUNCTION key, select the Measure Functions tab, and select
Capacitance.
4. Press the MENU key.
5. Under Measure, select Settings.
6. Set the Range to 1 nF.
