Interactive SourceMeter® Instrument User's Manual Section 6: Leakage current and insulation resistance
2450-900-01 Rev. C / December 2013 6-5
7. Select the button next to Source (at the bottom of the screen).
8. Enter 20 V and select OK.
9. Press the MENU key.
10. Under Trigger, select Templates.
11. Next to Templates, select Duration Loop.
12. Next to Duration, enter a soak time of 30s and select OK.
13. Next to Delay, enter 0.2s, and select OK.
14. Press the HOME key to return to the Home screen.
15. Press the TRIGGER key to turn on the output and make measurements. The output is turned off
when the measurements are complete.
View the measurements on the front-panel graph
To view the leakage current measurements on the front-panel graph:
1. Press the MENU key.
2. Under Views, select Graph.
3. Select the Scale tab.
4. Under Y-Axis, next to Scale Format, select Log.
5. Under X-Axis, next to Auto Scale, select On.
6. Select the Graph tab to view the graph.

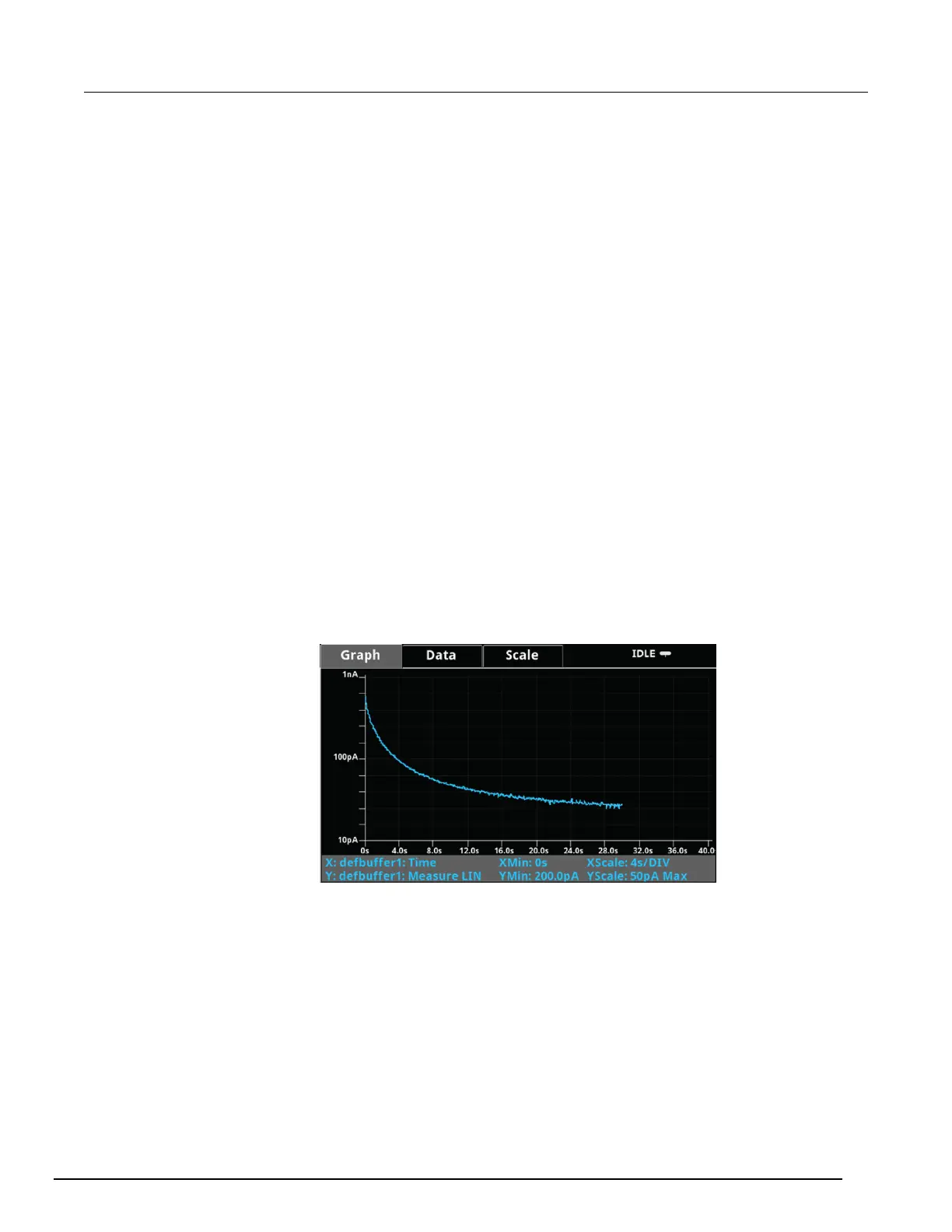

The following figure shows the front-panel graph for this application.
Figure 27: Viewing the leakage current measurement on the front-panel
