Keithley S530 Diagnostic Manual

Appendix C
S530 troubleshooting information
In this section:
Introduction ................................................................ 4-1
CVU confidence check testing ...................................4-1
Introduction
This section is intended to provide information on how to conduct further testing of the S530 system,
specifically for the Model 4200-SCS CV unit.
CVU confidence check testing
NOTE
It is recommended that you run CVU confidence check in order to test for opens and shorts on the
CVU. The following information will guide you through this process.
This is a step-by-step process to run a CVU confidence check on the CV unit in the Model 4200-SCS:
1. Open the Remote Desktop Connection function on the ACS system computer (see next Figure):

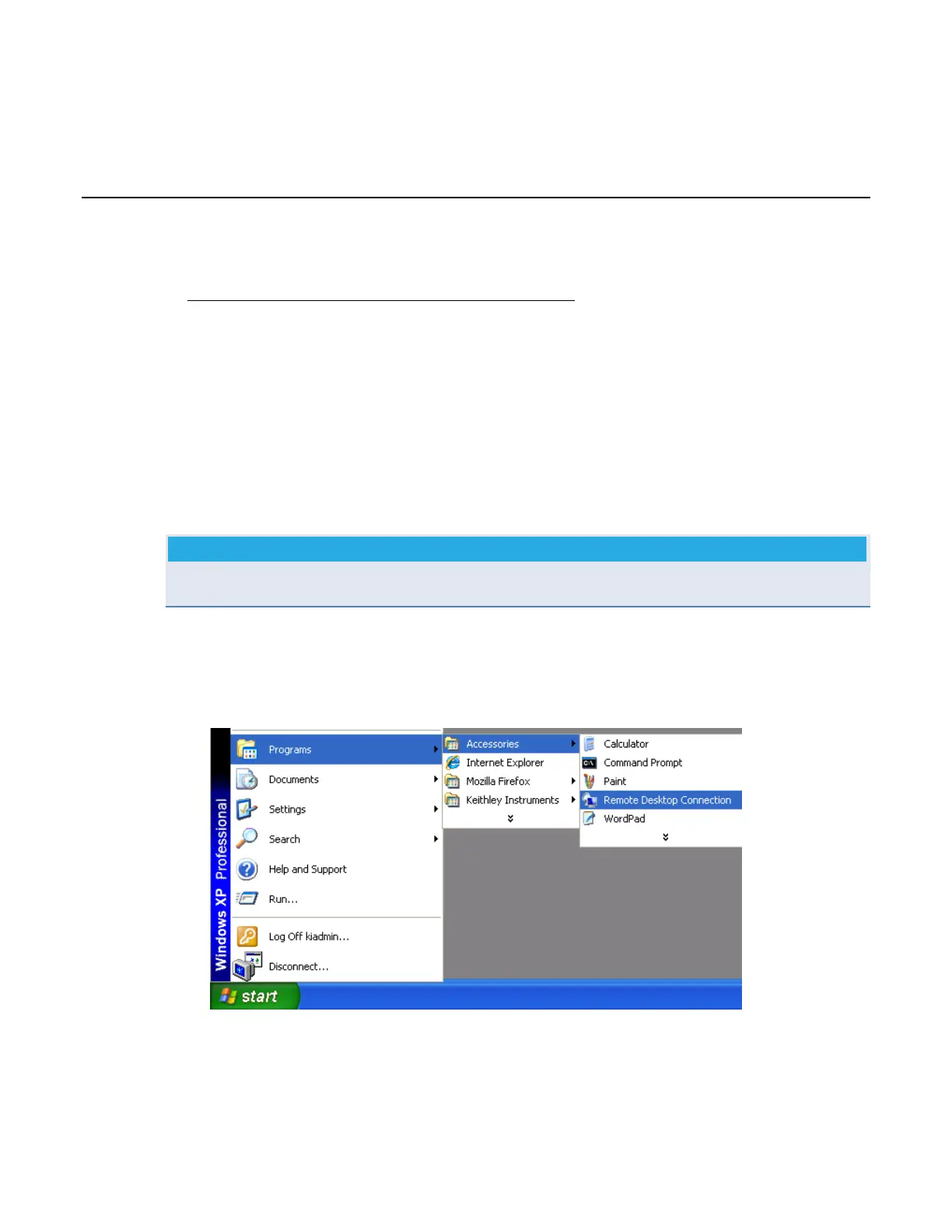

Figure 63: Remote Desktop Connection
2. Enter the I.P. address for the Model 4200-SCS in the edit box of the Remote Desktop Connection
dialog box: 192.168.1.12 (see next Figure).
