SEWINGMACHINE
SOURCE385
PAGE8
DIV. 20

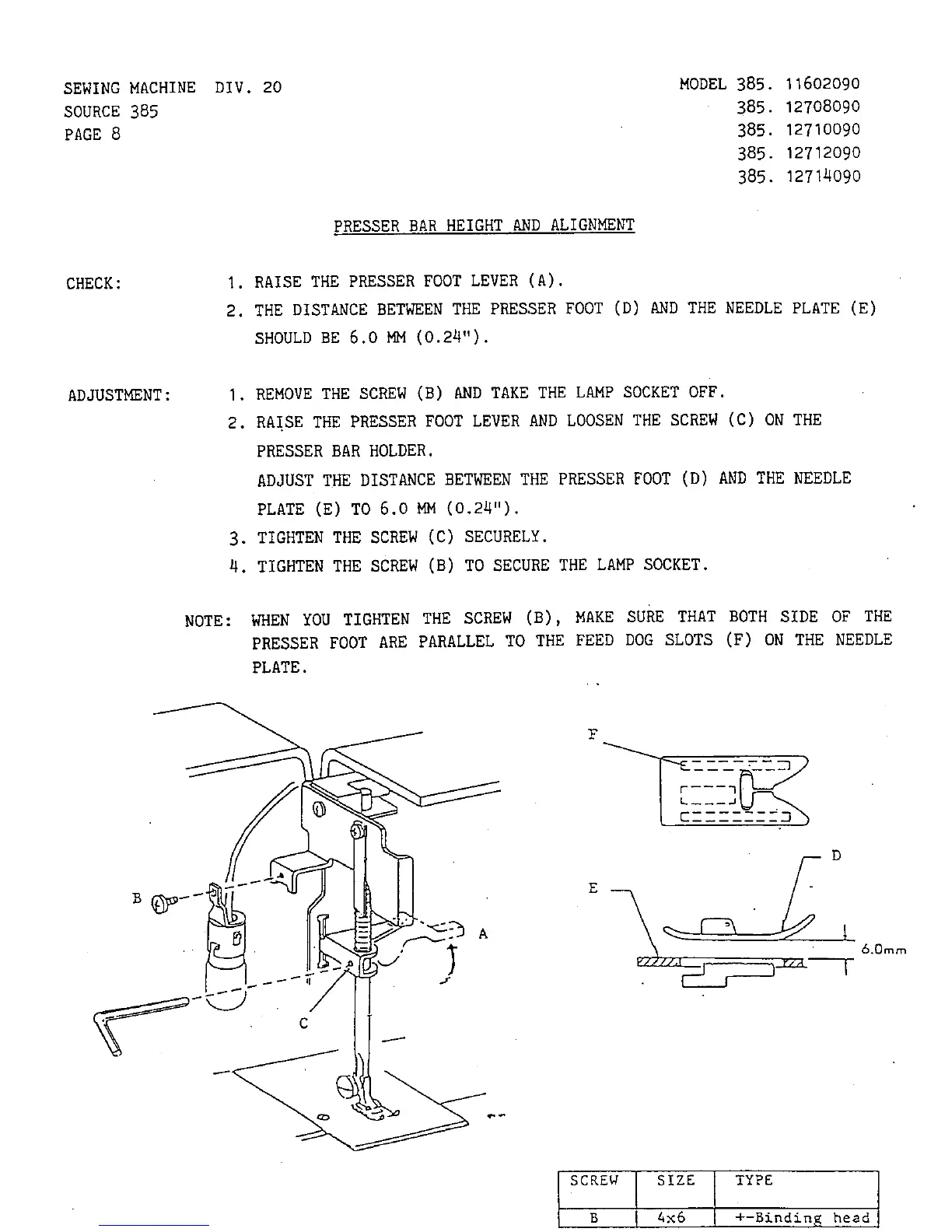

PRESSER BAR HEIGHT AND ALIGNMENT
MODEL 385. 11602090
385. 12708090
385. 12710090
385. 12712090
385. 12714090
CHECK:
I. RAISE THE PRESSER FOOT LEVER (A).
2. THE DISTANCE BETWEEN THE PRESSER FOOT (D) AND THE NEEDLE PLATE (E)
SHOULD BE 6.0 MM (0.24").
ADJUSTMENT: I. REMOVE THE SCREW (B) AND TAKE THE LAMP SOCKET OFF.
2. RAISE THE PRESSER FOOT LEVER AND LOOSEN THE SCREW (C) ON THE
PRESSER BAR HOLDER.
ADJUST THE DISTANCE BETWEEN THE PRESSER FOOT (D) AND THE NEEDLE
PLATE (E) TO 6.0 MM (0.24").
3. TIGHTEN THE SCREW (C) SECURELY.
4. TIGHTEN THE SCREW (B) TO SECURE THE LAMP SOCKET.
NOTE:
WHEN YOU TIGHTEN THE SCREW (B), MAKE SURE THAT BOTH SIDE OF THE
PRESSER FOOT ARE PARALLEL TO THE FEED DOG SLOTS (F) ON THE NEEDLE
PLATE.
F
D
SCRE_ I SIZE TYPE
B I 4x6 +-Binding head
