SEWING MACHINE
SOURCE 385
PAGE 10
DIV. 20
MODEL 385. 11602090
385. 12708090
385. 12710090
385. 12712090
385. 12714090

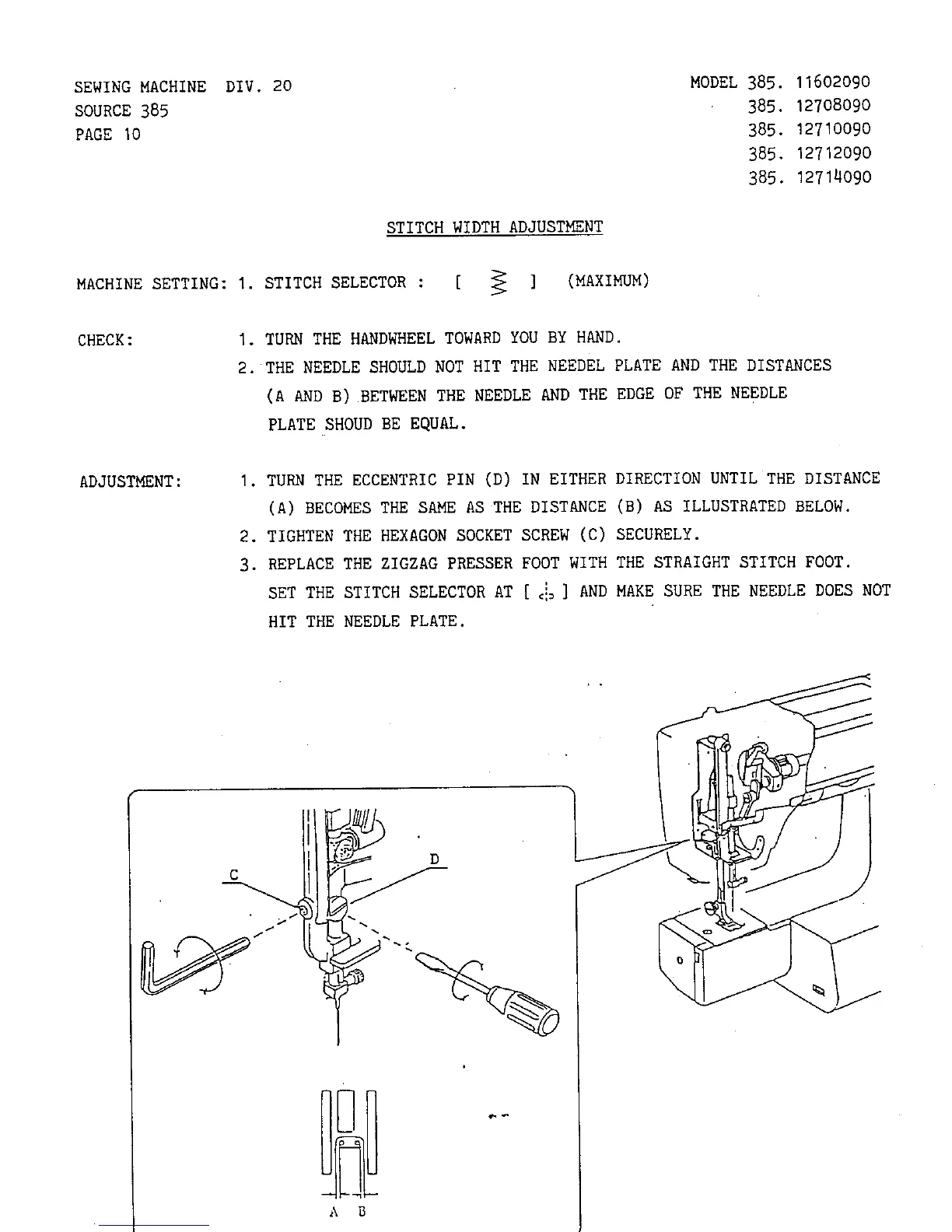

STITCH WIDTH ADJUSTMENT
MACHINE SETTING: I. STITCH SELECTOR : [ _ ] (MAXIMUM)
CHECK:
I. TURN THE HANDWHEEL TOWARD YOU BY HAND.
2. THE NEEDLE SHOULD NOT HIT THE NEEDEL PLATE AND THE DISTANCES
(A AND B) BETWEEN THE NEEDLE AND THE EDGE OF THE NEEDLE
PLATE SHOUD BE EQUAL.
ADJUSTMENT:
I. TURN THE ECCENTRIC PIN (D) IN EITHER DIRECTION UNTIL THE DISTANCE
(A) BECOMES THE SAME AS THE DISTANCE (B) AS ILLUSTRATED BELOW.
2. TIGHTEN THE HEXAGON SOCKET SCREW (C) SECURELY.
3. REPLACE THE ZIGZAG PRESSER FOOT WITH THE STRAIGHT STITCH FOOT.
SET THE STITCH SELECTOR AT [ _!=] AND MAKE SURE THE NEEDLE DOES NOT
HIT THE NEEDLE PLATE.
D
B
