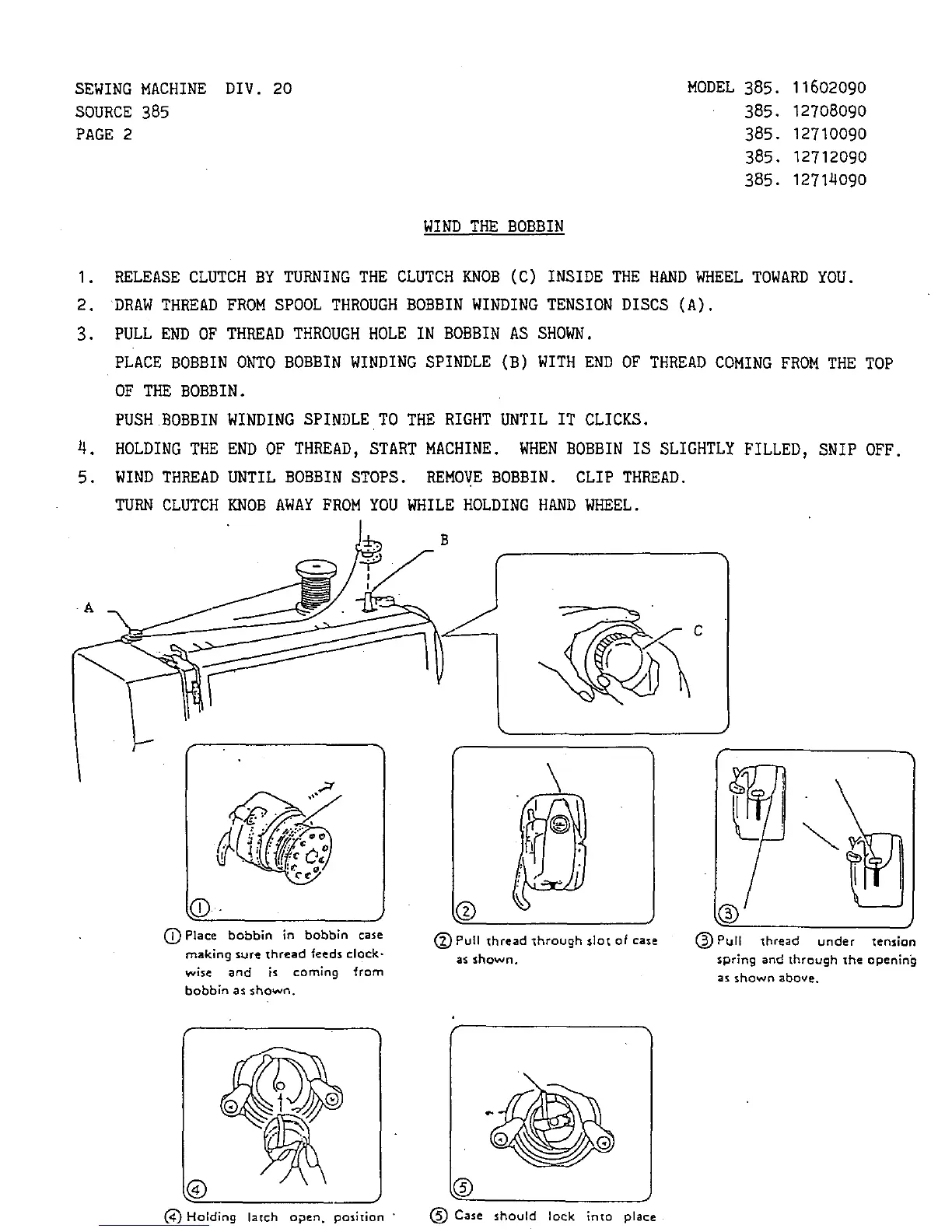

SEWING MACHINE DIV. 20 MODEL 385. 11602090
SOURCE 385 385. 12708090
PAGE 2 385. 12710090
385. 12712090
385. 12714090
WIND THE BOBBIN
I. RELEASE CLUTCH BY TURNING THE CLUTCH KNOB (C) INSIDE THE HAND WHEEL TOWARD YOU.
2. DRAW THREAD FROM SPOOL THROUGH BOBBIN WINDING TENSION DISCS (A).
3. PULL END OF THREAD THROUGH HOLE IN BOBBIN AS SHOWN.
PLACE BOBBIN ONTO BOBBIN WINDING SPINDLE (B) WITH END OF THREAD COMING FROM THE TOP
OF THE BOBBIN.
PUSH BOBBIN WINDING SPINDLE TO THE RIGHT UNTIL IT CLICKS.
4. HOLDING THE END OF THREAD, START MACHINE. WHEN BOBBIN IS SLIGHTLY FILLED, SNIP OFF.
5. WIND THREAD UNTIL BOBBIN STOPS. REMOVE BOBBIN. CLIP THREAD.
TURN CLUTCH KNOB AWAY FROM YOU WHILE HOLDING HAND WHEEL.
• .. B
r.
O Place bobbin {n bobbin case
making sure lhread fe_ds clock-
w;se and }s coming from
.D
\
(_) Pull thread _hrough slot of ca_e
as shown.
bobbin as shown.
(_ Pull thread under tens=on
spr;ng and through the opening
as shown above.
_')Holding latch open. posluon " (_) Case should lock {n:o place
