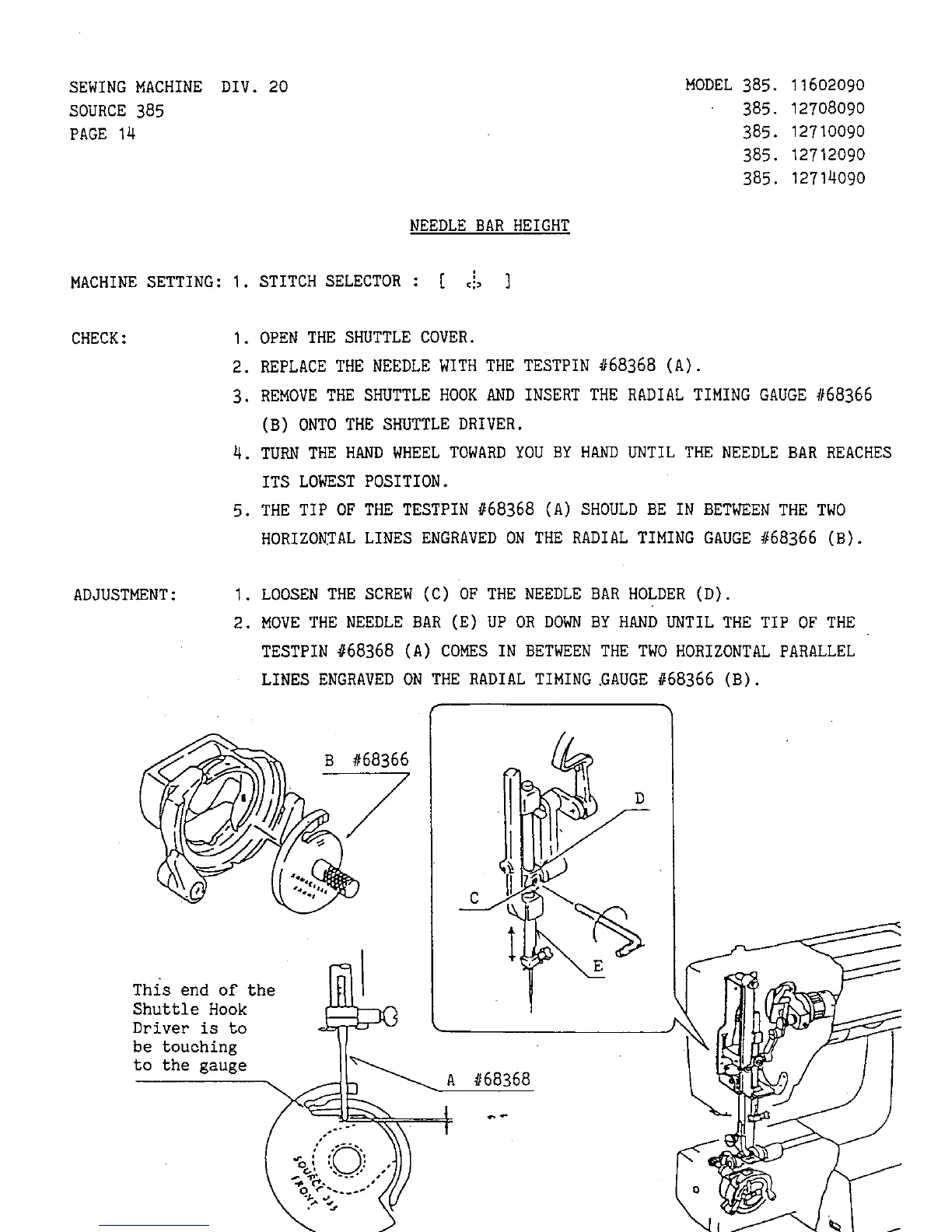

SEWINGMACHINEDIV. 20
SOURCE385
PAGE14
MACHINESETTING:I. STITCHSELECTOR
NEEDLE BAR HEIGHT
: [ ,!, ]
MODEL 385. 11602090
385. 12708090
385. 12710090
385. 12712090
385. 12714090
CHECK:
I. OPEN THE SHUTTLE COVER.
2. REPLACE THE NEEDLE WITH THE TESTPIN #68368 (A).
3. REMOVE THE SHUTTLE HOOK AND INSERT THE RADIAL TIMING GAUGE #68366
(B) ONTO THE SHUTTLE DRIVER.
4. TURN THE HAND WHEEL TOWARD YOU BY HAND UNTIL THE NEEDLE BAR REACHES
ITS LOWEST POSITION.
5. THE TIP OF THE TESTPIN #68368 (A) SHOULD BE IN BETWEEN THE TWO
HORIZONTAL LINES ENGRAVED ON THE RADIAL TIMING GAUGE #68366 (B).
ADJUSTMENT:
I. LOOSEN THE SCREW (C) OF THE NEEDLE BAR HOLDER (D).
2. MOVE THE NEEDLE BAR (E) UP OR DOWN BY HAND UNTIL THE TIP OF THE
TESTPIN #68368 (A) COMES IN BETWEEN THE TWO HORIZONTAL PARALLEL
LINES ENGRAVED ON THE RADIAL TIMING GAUGE #68366 (B).
This end of the
Shuttle Hook
Driver is to
be touching
to the gauge
A #68368
E
D
To Next Page
