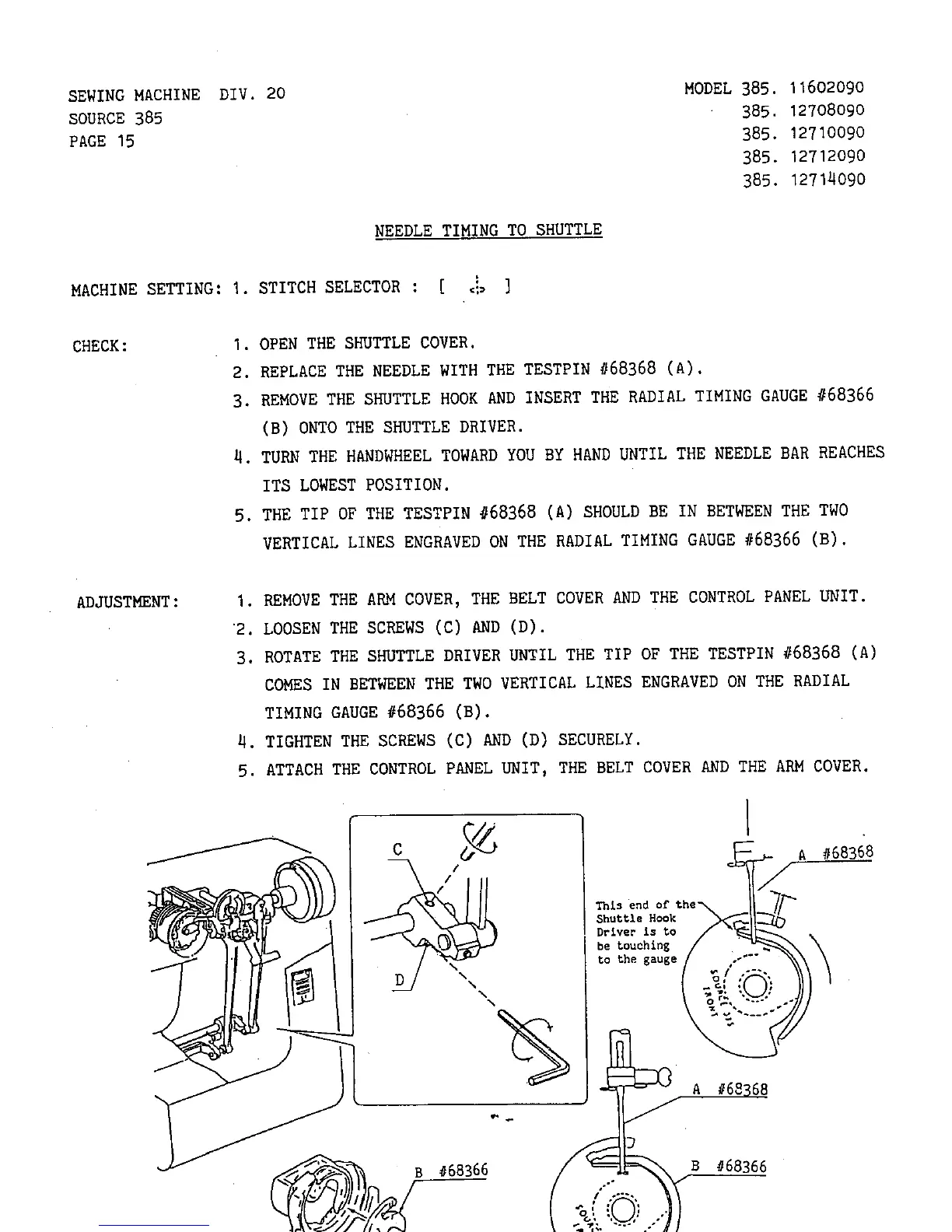

SEWING MACHINE
SOURCE 385
PAGE 15
DIV. 20
MODEL 385. 11602090
385. 12708090
385. 12710090
385. 12712090
385. 12714090
NEEDLE TIMING TO SHUTTLE
MACHINE SETTING: I. STITCH SELECTOR : [ c!, ]
CHECK:
I. OPEN THE SHUTTLE COVER.
2. REPLACE THE NEEDLE WITH THE TESTPIN #68368 (A).
3. REMOVE THE SHUTTLE HOOK AND INSERT THE RADIAL TIMING GAUGE #68366
(B) ONTO THE SHUTTLE DRIVER.
4. TURN THE HANDWHEEL TOWARD YOU BY HAND UNTIL THE NEEDLE BAR REACHES
ITS LOWEST POSITION.
5. THE TIP OF THE TESTPIN #68368 (A) SHOULD BE IN BETWEEN THE TWO
VERTICAL LINES ENGRAVED ON THE RADIAL TIMING GAUGE #68366 (B).
ADJUSTMENT:
I. REMOVE THE ARM COVER, THE BELT COVER AND THE CONTROL PANEL UNIT.
2. LOOSEN THE SCREWS (C) AND (D).
3. ROTATE THE SHUTTLE DRIVER UNTIL THE TIP OF THE TESTPIN #68368 (A)
COMES IN BETWEEN THE TWO VERTICAL LINES ENGRAVED ON THE RADIAL
TIMING GAUGE #68366 (B).
4. TIGHTEN THE SCREWS (C) AND (D) SECURELY.
5. ATTACH THE CONTROL PANEL UNIT, THE BELT COVER AND THE ARM COVER.
C
/
\
#68366
This end of
ShuttleHook
Driveris to
be touching
to the gauge
A
#68368
#68366
#68368
To Next Page
