SEWING MACHINE DIV. 20 MODEL 385. 11602090
SOURCE 385 385. 12708090
PAGE 3 385. 12710090
385. 12712090
385. 12714090

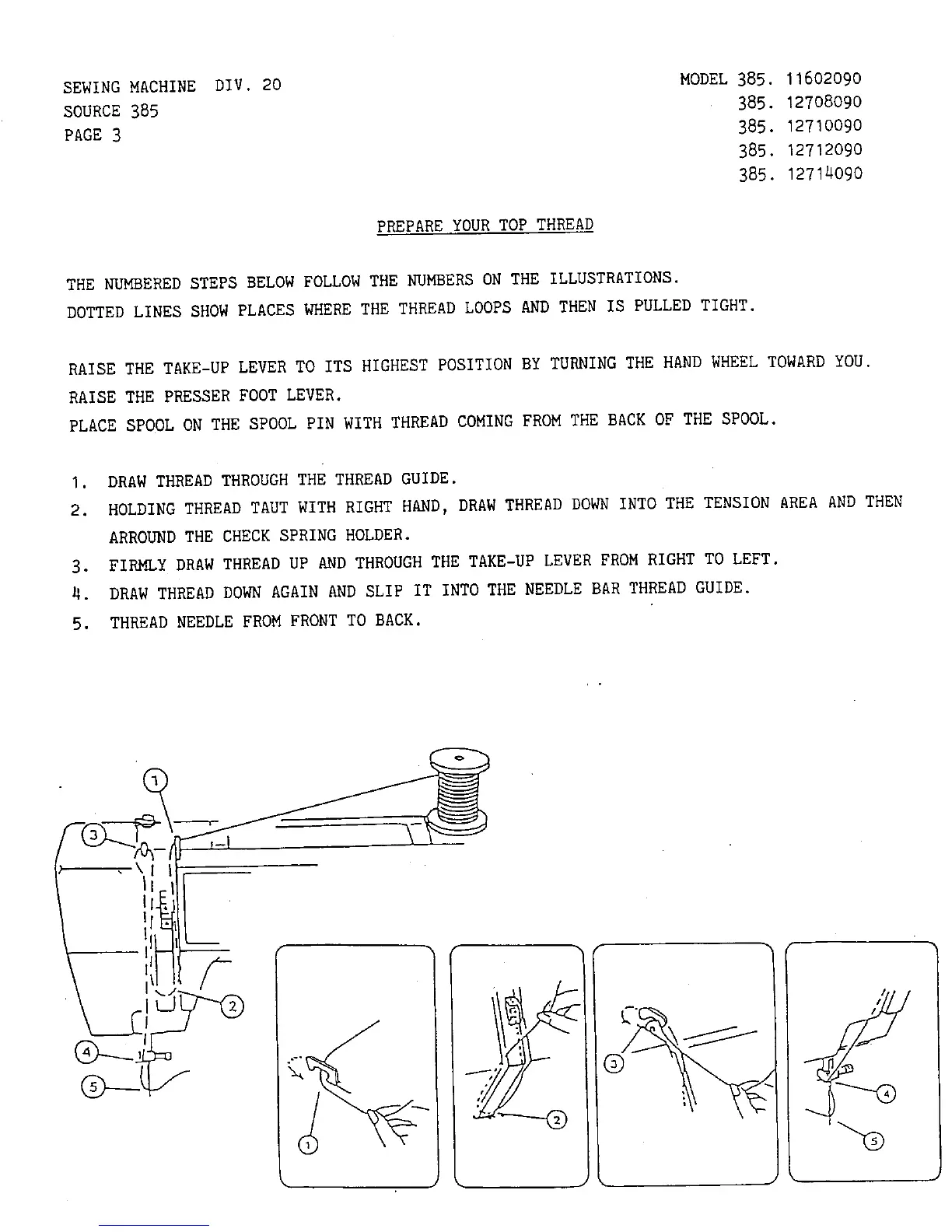

PREPARE YOUR TOP THREAD
THE NUMBERED STEPS BELOW FOLLOW THE NUMBERS ON THE ILLUSTRATIONS.
DOTTED LINES SHOW PLACES WHERE THE THREAD LOOPS AND THEN IS PULLED TIGHT.
RAISE THE TAKE-UF LEVER TO ITS HIGHEST POSITION BY TURNING THE HAND WHEEL TOWARD YOU.
RAISE THE PRESSER FOOT LEVER.
PLACE SPOOL ON THE SPOOL PIN WITH THREAD COMING FROM THE BACK OF THE SPOOL.
I. DRAW THREAD THROUGH THE THREAD GUIDE.
2. HOLDING THREAD TAUT WITH RIGHT HAND, DRAW THREAD DOWN INTO THE TENSION AREA AND THEN
ARROUND THE CHECK SPRING HOLDER.
3. FIRMLY DRAW THREAD UP AND THROUGH THE TAKE-UP LEVER FROM RIGHT TO LEFT.
4. DRAW THREAD DOWN AGAIN AND SLIP IT INTO THE NEEDLE BAR THREAD GUIDE.
5- THREAD NEEDLE FROM FRONT TO BACK.
I i
