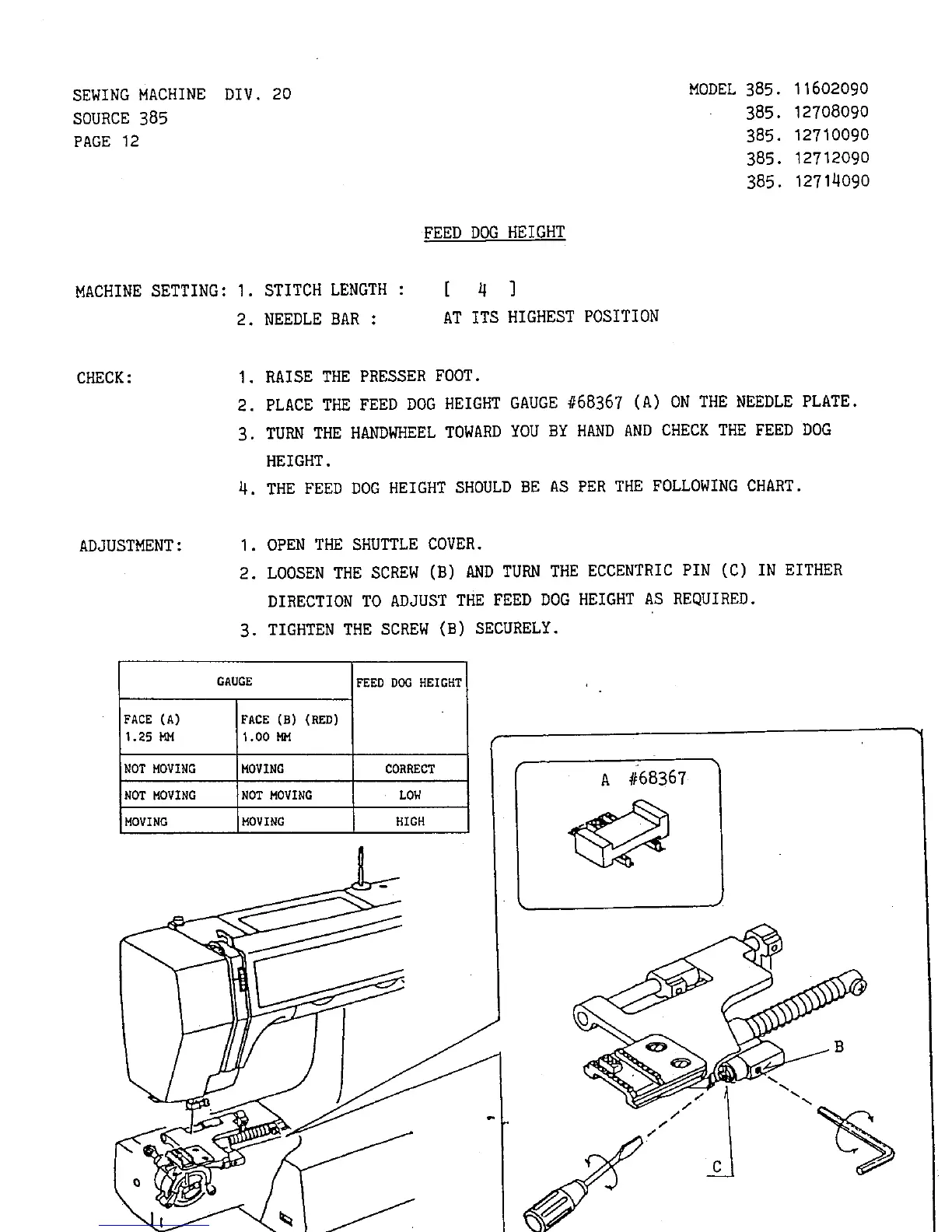

SEWING MACHINE
SOURCE 385
PAGE 12
DIV. 20
MODEL 385. 11602090
385. 12708090
385. 12710090
385. 12712090
385. 12714090
FEED DOG HEIGHT
MACHINE SETTING: I. STITCH LENGTH : [ 4 ]
2. NEEDLE BAR : AT ITS HIGHEST POSITION
CHECK:
I. RAISE THE PRESSER FOOT.
2. PLACE THE FEED DOG HEIGHT GAUGE #68367 (A) ON THE NEEDLE PLATE.
3. TURN THE HANDWHEEL TOWARD YOU BY HAND AND CHECK THE FEED DOG
HEIGHT.
4. THE FEED DOG HEIGHT SHOULD BE AS PER THE FOLLOWING CHART.
ADJUSTMENT:
I. OPEN THE SHUTTLE COVER.
2. LOOSEN THE SCREW (B) AND TURN THE ECCENTRIC PIN (C) IN EITHER
DIRECTION TO ADJUST THE FEED DOG HEIGHT AS REQUIRED.
3. TIGHTEN THE SCREW (B) SECURELY.
GAUGE
FACE (A)
1.25 MM
NOT MOVING
NOT MOVING
MOVING
FEED DOG HEIGHT
FACE (B) (RED)
1.00
MOVING CORRECT
NOT MOVING LOW
MOVING HIGH
A _68367
