SEWING MACHINE
SOURCE 385
PAGE11
DIV. 20

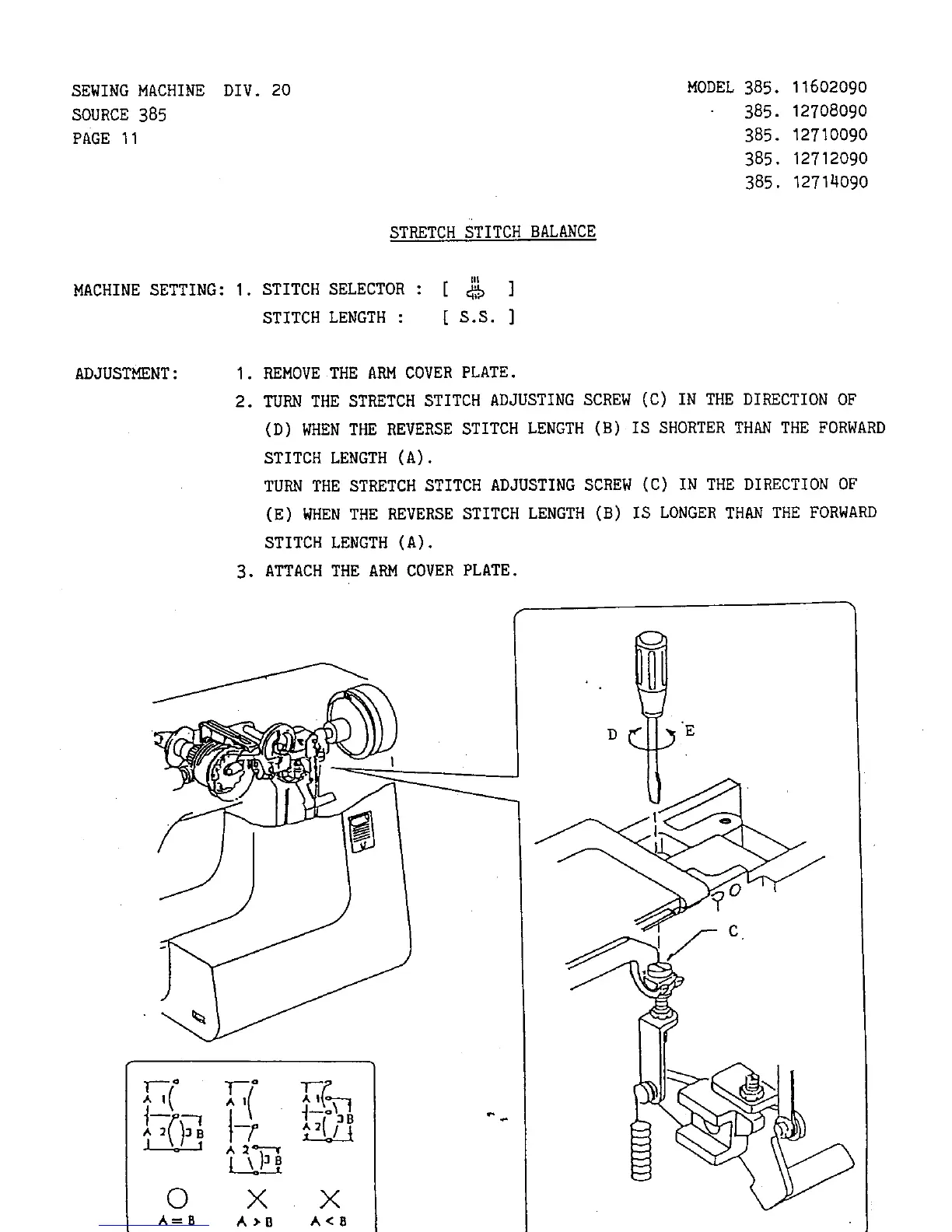

STRETCH STITCH BALANCE
MODEL 385. 11602090
385. 12708090
385. 12710090
385. 12712090
385. 12714090
MACHINE SETTING: I. STITCH SELECTOR : [ q_b ]
STITCH LENGTH : [ S.S. ]
ADJUSTMENT: I. REMOVE THE ARM COVER PLATE.
2. TURN THE STRETCH STITCH ADJUSTING SCREW (C) IN THE DIRECTION OF
(D) WHEN THE REVERSE STITCH LENGTH (B) IS SHORTER THAN THE FORWARD
STITCH LENGTH (A).
TURN THE STRETCH STITCH ADJUSTING SCREW (C) IN THE DIRECTION OF
(E) WHEN THE REVERSE STITCH LENGTH (B)
STITCH LENGTH (A).
3. ATTACH THE ARM COVER PLATE.
IS LONGER THAN THE FORWARD
©
A=B
X
A>B
X
A<B
I
