SEWINGMACHINEDIV. 20
SOURCE385
PAGE9
MACHINESETTING:I.
CHECK: I.
2.

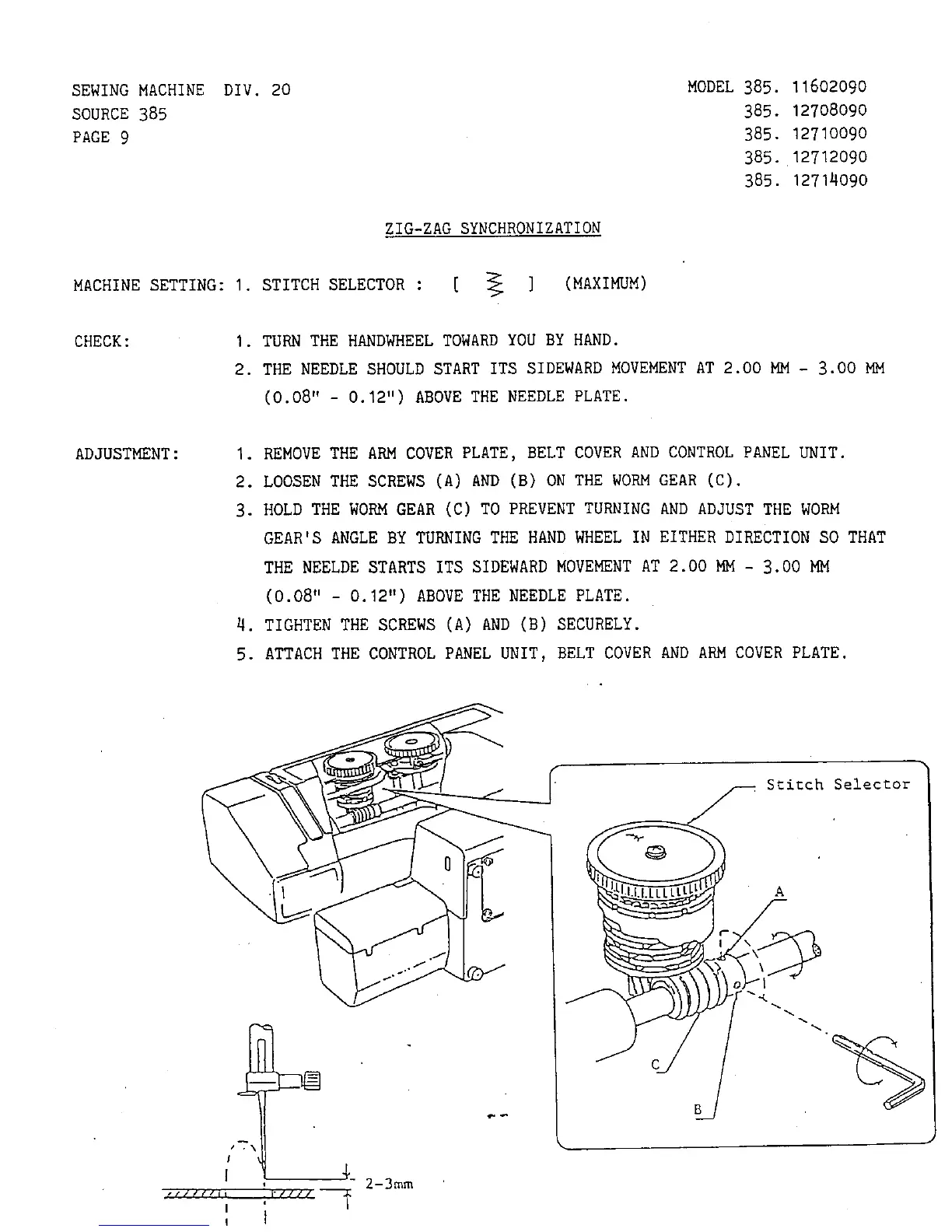

ZIG-ZAG SYNCHRONIZATION
MODEL 385. 11602090
385. 12708090
385. 12710090
385.12712090
385. 12714090
STITCH SELECTOR : [ _ ] (MAXIMUM)
TURN THE HANDWHEEL TOWARD YOU BY HAND.
THE NEEDLE SHOULD START ITS SIDEWARD MOVEMENT AT 2.00 MM - 3.00 MM
(0.08" - 0.12") ABOVE THE NEEDLE PLATE.
ADJUSTMENT: I. REMOVE THE ARM COVER PLATE, BELT COVER AND CONTROL PANEL UNIT.
2. LOOSEN THE SCREWS (A) AND (B) ON THE WORM GEAR (C).
3. HOLD THE WORM GEAR (C) TO PREVENT TURNING AND ADJUST THE WORM
GEAR'S ANGLE BY TURNING THE HAND WHEEL IN EITHER DIRECTION SO THAT
THE NEELDE STARTS ITS SIDEWARD MOVEMENT AT 2.00 MM - 3.00 MM
(0.08" - 0.12") ABOVE THE NEEDLE PLATE.
4. TIGHTEN THE SCREWS (A) AND (B) SECURELY.
5. ATTACH THE CONTROL PANEL UNIT, BELT COVER AND ARM COVER PLATE.
j
!
I
_"t / t" ( ,"i i , I" (///
i
I
i t
2-3mm
Stitch Selector
A
B
