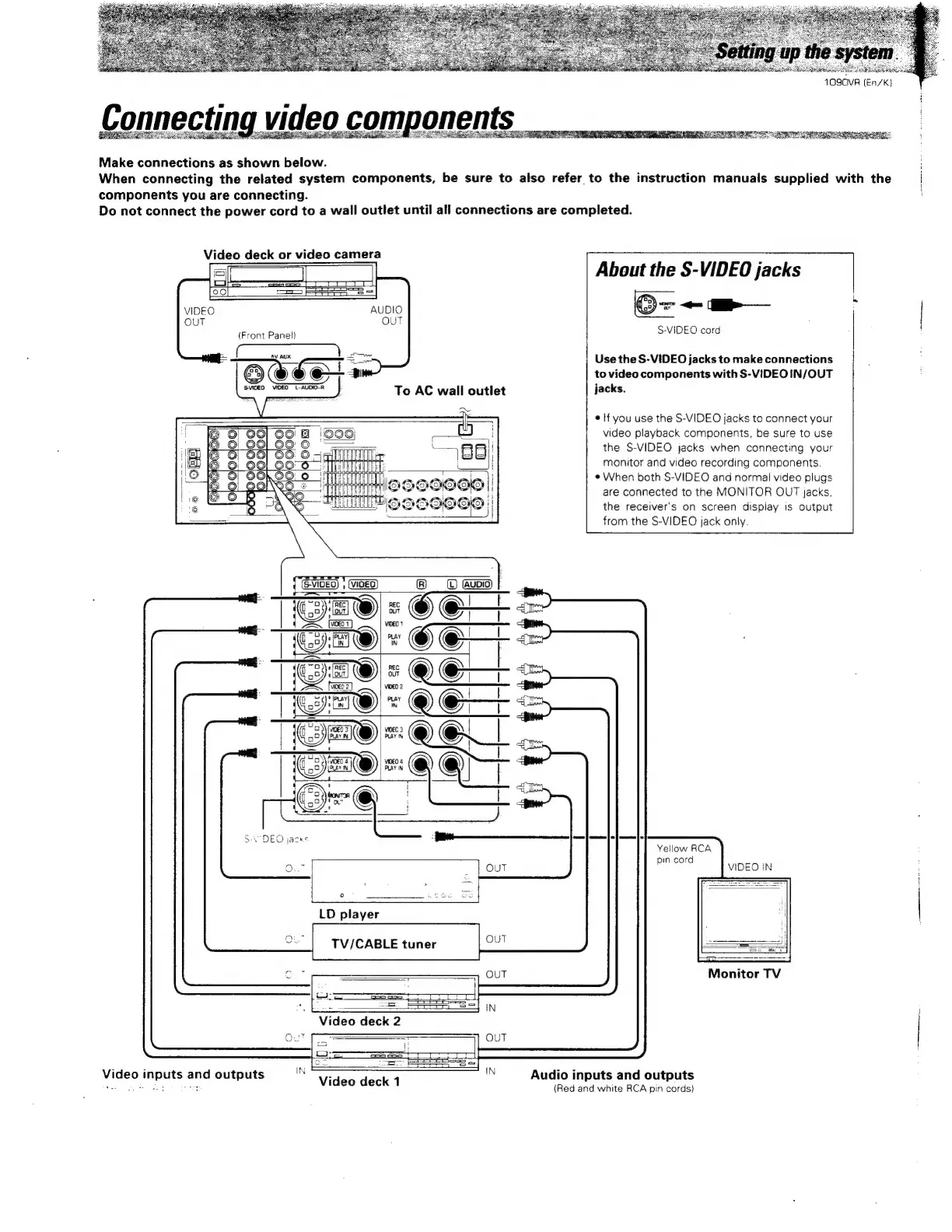

Make connections as shown below.
When connecting the related system components, be sure to also refer to the instruction manuals supplied with the
components you are connecting.
Do not connect the power cord to a wall outlet until all connections are completed.
Video deck or video camera
o Loos
LD player
Video deck 1
Video inputs and outputs
About the S-VIDEO jacks
o=-——
S-VIDEO cord
Use the S-VIDEO jacks to make connections
to video components with S-VIDEO IN/OUT
jacks.
¢ tf you use the S-VIDEO jacks to connect your
video playback components, be sure to use
the S-VIDEO jacks when connecting your
monitor and video recording components.
¢ When both S-VIDEO and normal video plugs
are connected to the MONITOR OUT Jacks,
the receiver's on screen display is output
from the S-VIDEO jack only.
Yellow RCA
pin cord
VIDEO IN
Monitor TV
Audio inputs and outputs
(Red and white RCA pin cords)
