DAB Basic Operation
Most functions can be controlled from the
source control screen.
To enter DAB source, touch [DAB] icon in the
source selection screen. (P.11)
NOTE
• Set the remote control mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.72).

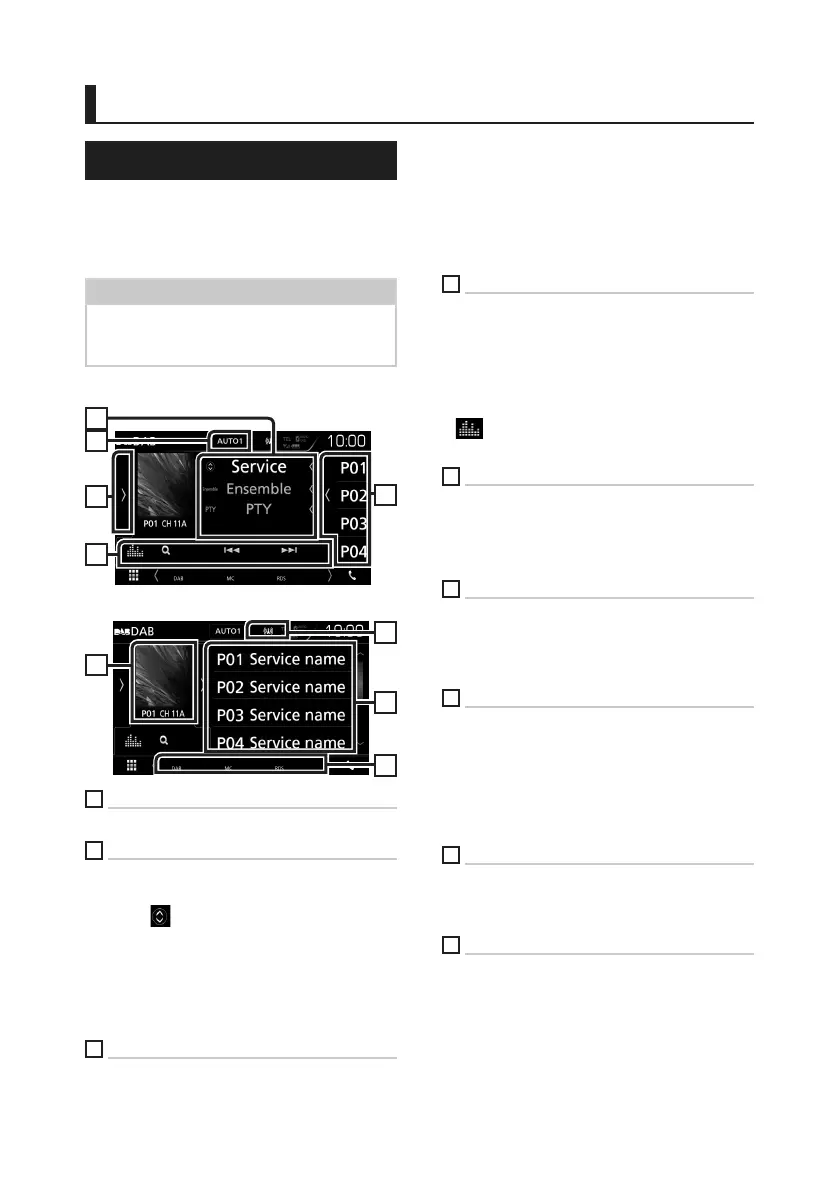

Control screen
3
6
4
2
5
Preset list screen
1
8
7
9
1
Indicator display
Displays the received signal strength.
2
Information display
Displays the information of the current station:
Service Name
Touching [
] allows you to switch between
Content A, Content B and Content C.
Content A: Ensemble name, PTY Genre
Content B: Song Title, Artist Name, DLS
Content C: Now Playing, Next Program, Audio
Quality
3
[AUTO1] / [AUTO2] / [MANUAL]
Switches the seek mode in the following
sequence; [AUTO1], [AUTO2], [MANUAL].
• [AUTO1]: Tunes in a ensemble with good
reception automatically.
• [AUTO2]: Tunes in ensemble in memory one
after another.
• [MANUAL]: Switches to the next ensemble
manually.
4
Function bar
• [1] : Displays the Service List screen. For details
on search operation, see Service search
(P.40).
• [E] [F] : Tunes in a ensemble, service, and
component. The seek mode switching can be
changed. (see 3 in table).
• [
] : Displays the Graphic Equalizer screen.
(P.66)
5
Preset key
Recalls the memorized service.
Touching on the screen or flicking the screen to
left will display the Preset list. Touching again or
flicking to right will close the list.
6
Function panel
Touch on the left side of the screen to display
the function panel. Touch again to close the
panel. For details on the keys, see Function
panel (P.39).
7
Artwork area
The picture data is displayed if available from
current content.
Touch to switch between the Control and
Information screen.
P#: Preset number
CH#: Channel display
8
[Preset list
Recalls the memorized service. When touched
for 2 seconds, stores the current service in
memory.
9
Indicator Items
• DAB: Digital Radio is being received.
• RDS: Radio Data System is being received.
• MC: Receiving service is displayed.
White: Primary Component is received.
Orange: Secondary Component is received.
