Kenwood DMX7017DABS User Manual

Connection/Installation
81English

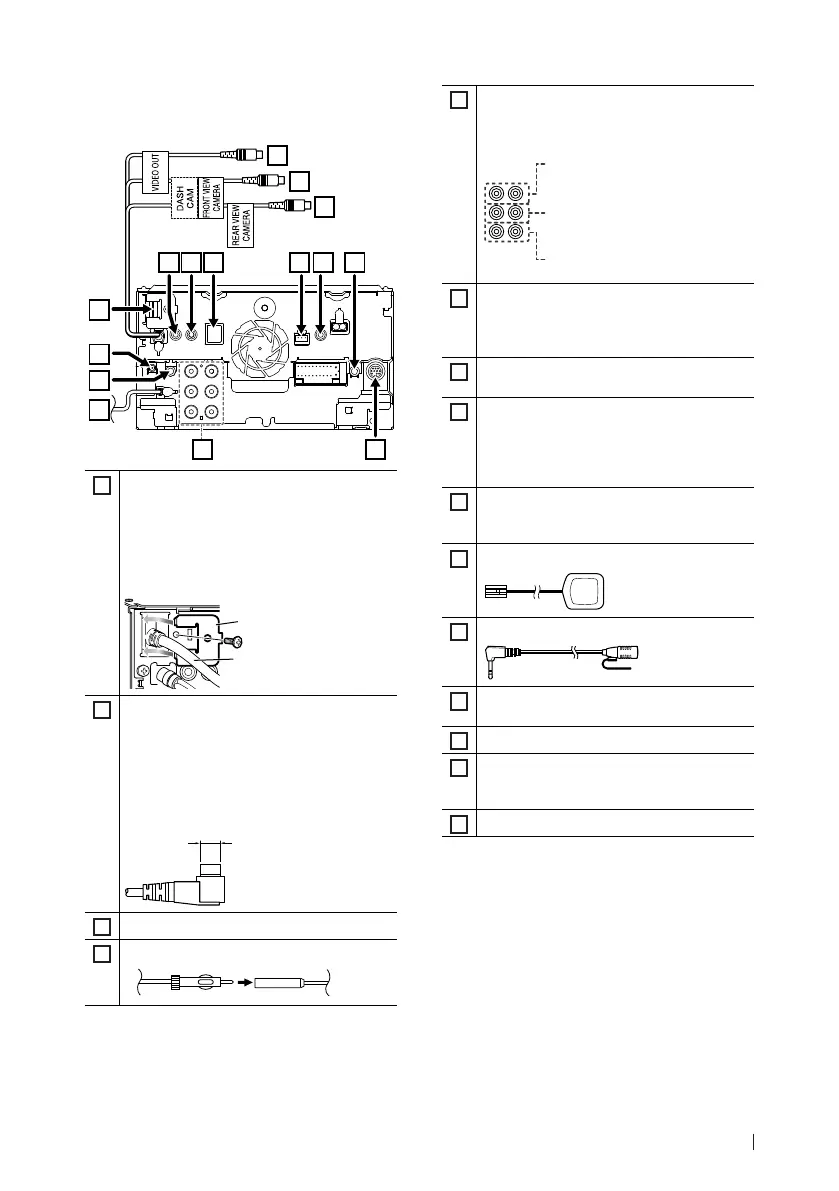

Ñ Connecting the system and
external components
4
3
2
1
5 6
78910
13
14
15
1112
1
HDMI/MHL input
(DDX9717BTS only)
MHL maximum power supply current :
5 V = 900 mA
When you connect the cable to HDMI/MHL
terminal, remove the fixture. After connecting
the cable, put the fixture again.
HDMI/ MHL connector
Fixture
2
DAB antenna CX-DAB1 (Optional accessory)
(DMX7017DABS only)
!
Use of a CX-DAB1(optional accessory) as a DAB
antenna is recommended.
When using a commercially available DAB
antenna, the diameter of the SMB connector
must be Φ6.5 mm or less.
Φ 6.5 mm (maximum)
3
AV Audio output (ø3.5 mini jack)
4
FM/AM antenna input
5
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Subwoofer Preout
(Left; White, Right; Red)
6
External I/F
(DDX9717BTS only)
Maximum power supply current :
12 V = 500 mA
7
TV tuner remote output
(DDX9717BTS only)
8
DDX9717BTS :
AV-IN (CA-C3AV; Optional Accessory) input
DMX7017DABS/ DMX7017BTS :
AV-IN (CA-C3AV; Optional Accessory)/
Dashboard camera input
9
Dashboard camera interface
Connect a Dashboard Camera DRV-N520
(optional accessory). (P.83)
10
Accessory 7: GPS Antenna
11
Accessory 4: Bluetooth Microphone
12
Connect to vehicle’s steering remote harness.
Contact your KENWOOD dealer for details.
13
Rear view camera input (Yellow)
14
Front view camera/ Dashboard camera input
(Yellow)
(DDX9717BTS only)
15
Visual Output (Yellow)

Kenwood DMX7017DABS Specifications

General

MP3 playback	Yes
CD-R playback	No
Audio formats supported	AAC, DSD, FLAC, MP3, OGG, WAV, WMA
Image formats supported	BMP, JPG, PNG
Video formats supported	H.264, MKV, MPEG1, MPEG2, MPEG4, WMV
USB version	2.0
Bluetooth version	3.0+HS
Bluetooth profiles	A2DP, HFP, PBAP, SSP
Line outputs (RCA)	3
USB ports quantity	1
DIN size	2 DIN
Output power	200 W
Product color	Black
Audio output channels	- channels
Equalizer bands quantity	13
Maximum power per channel	50 W
Display type	LCD
Display diagonal	6.95 \
Display resolution	800 x 480 pixels
Power requirements	14.4V
Key illumination color	Multi
FM band range	87.5 - 108 MHz
LW band range	153 - 279 kHz
Supported radio bands	AM, FM, LW
Preset stations quantity	20
Operating temperature (T-T)	-10 - 60 °C
Cables included	Audio (3.5mm), DC, USB

Weight and Dimensions

Weight	1700 g
Dimensions (WxDxH)	182 x 153 x 112 mm
