Controlling Audio
65English
■ FREQ (High Pass)
High Pass Filter adjustment. (When tweeter is
selected on Speaker Select screen)
■ HPF FREQ, LPF FREQ (Band Pass)
Band Pass Filter adjustment. (When mid
range speaker is selected on Speaker Select
screen)
■ FREQ (Low Pass)
Low Pass Filter adjustment. (When woofer is
selected on Speaker Select screen)
■ Slope*
3
Sets a crossover slope.
■ Gain
Sets gain of each speaker.
■ Phase Inversion*
2
Sets the phase of tweeter, mid range, and
woofer output.
Check [Phase Inversion] to shift the phase
180 degrees.
NOTE
• For how to switch to the 3-way speaker system,
see 3 way speaker system setup (P.65).
Connecting 3-way speakers with the 2-way mode
selected can break the speakers.

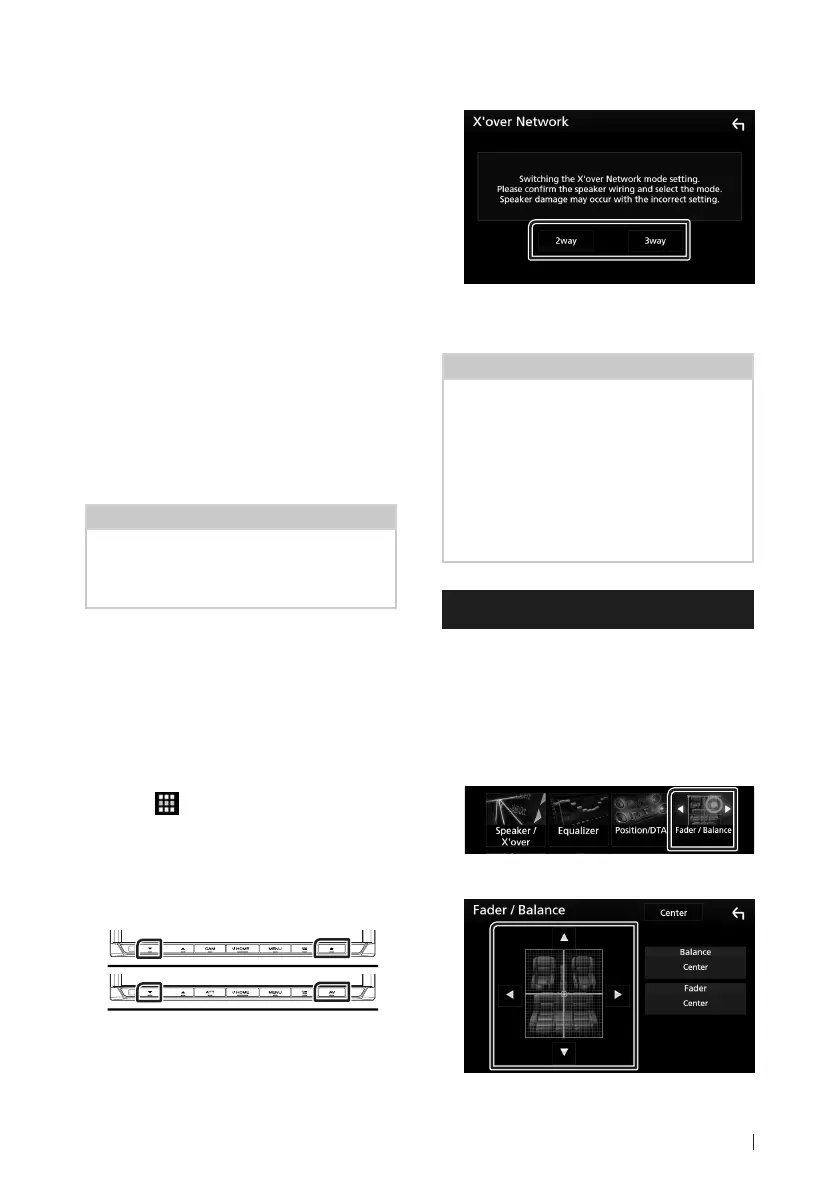

Ñ 3 way speaker system setup
Select the appropriate crossover network
mode according to the speaker system (2-way
speaker system or 3-way speaker system).
1
Press the [HOME] button.
HOME screen appears.
2
Touch [ ].
Source selection screen appears.
3
Touch [STANDBY].
4
Press the [G] / [AV] button and the [S]
button for 1 second at the same time.
Speaker system select screen appears.
5
Select the crossover network mode.
A confirmation screen appears.
6
Touch [Ye s ].
NOTE
• When the 3-way speaker system is selected, the
following functions are disabled.
– Zone Control
– Fader of Controlling General Audio
– Front focus of Listening Position/ DTA
– Select the speakers to output the sound from
cell-phone of Blutooth HF/Audio
– Beep of User Interface Setup
• Connecting 3-way speakers with the 2-way mode
selected can break the speakers.
Controlling General Audio
1
Press the [MENU] button.
Popup menu appears.
2
Touch [Audio].
Audio screen appears.
3
Touch [Fader / Balance].
4
Set each item as follows.
To Next Page
