Kenwood DPX502 User Manual

30
|
English

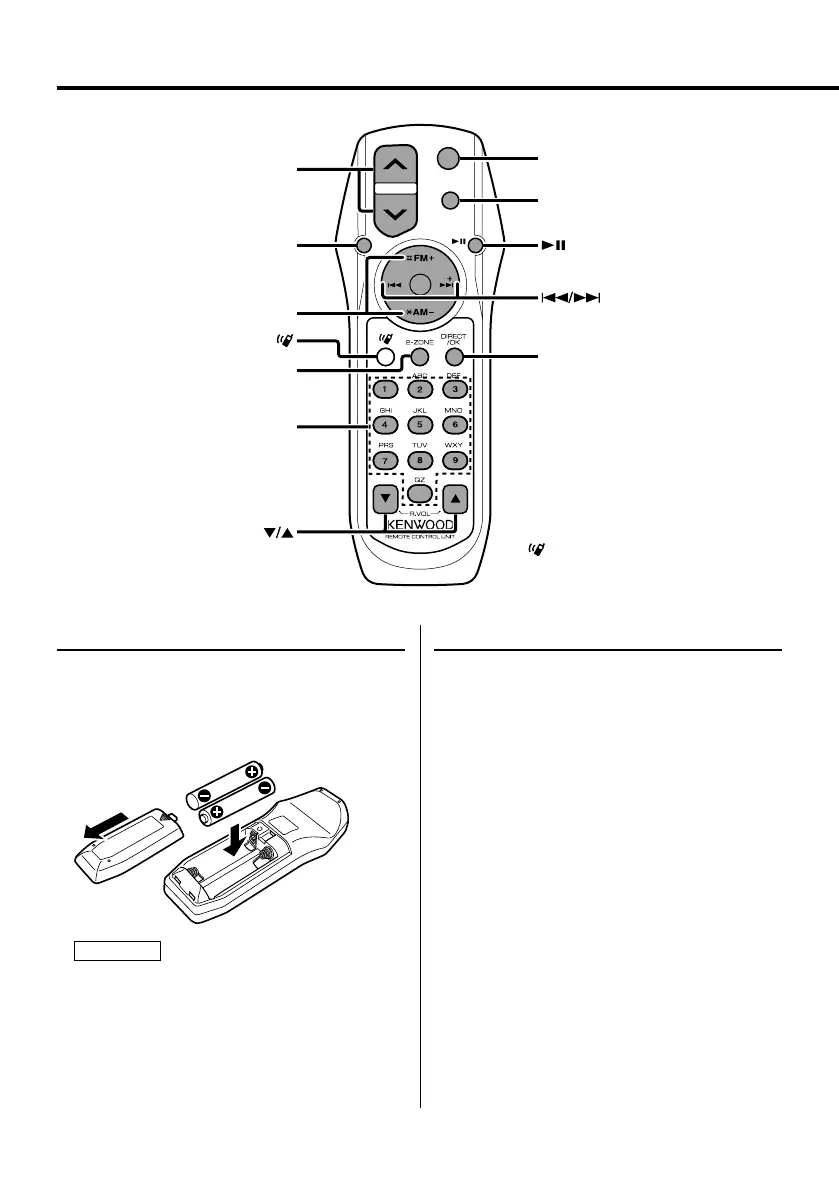

Basic Operations of remote control
Loading and Replacing the battery
Use two "AA"/ "R6"-size batteries.
Slide the cover while pressing downwards to
remove it as illustrated.
Insert the batteries with the + and – poles aligned
properly, following the illustration inside the case.
2WARNING
• Store unused batteries out of the reach of children.
Contact a doctor immediately if the battery is
accidentally swallowed.
¤
• Do not set the remote control in hot places such as on
the dashboard.
Basic operations
[VOL] buttons
Adjusts the volume.
[SRC] button
Each time you press the button, the source
alternates.
For the source alternating order refer to <Selecting
the Source> (page 7).
[ATT] button
Turns the volume down quickly.
When the button is pressed again, the volume
returns to the previous level.
SRC
VOL
AT T
AU D
ATT
DIRECT
[0] — [9]
SRC
VOL
AUD
FM/AM/ + /–
2-ZONE
: This button is used when Kenwood Bluetooth
HANDS FREE BOX is connected. For more
information, refer to the instruction manual of
Bluetooth HANDS FREE BOX.
B64-3826-0000English.Indd30B64-3826-0000English.Indd30 07.4.2411:32:14AM07.4.2411:32:14AM

Kenwood DPX502 Specifications

FM Tuner Section

frequency range	87.9 MHz – 107.9 MHz
usable sensitivity	9.3 dBf (0.8 μV /75 Ω)
quieting sensitivity	15.2 dBf (1.6 μV /75 Ω)
frequency response	30 Hz – 15 kHz
signal to noise ratio (MONO)	70 dB
selectivity	≥ 80 dB
stereo separation	40 dB

AM Tuner Section

frequency range	530 kHz – 1700 kHz
usable sensitivity	28 dBμ (25 μV)

CD Player Section

spindle speed	1000 – 400 rpm (CLV 2times)
frequency response	10 Hz – 20 kHz
total harmonic distortion	0.008 %
signal to noise ratio	105 dB
dynamic range	93 dB

Audio Output

maximum output power	50 W x 4
full bandwidth power	22 W x 4
speaker impedance	4 - 8 Ω
preout level / load	2500 mV/10 kΩ
preout impedance	≤ 600 Ω

USB Interface

usb standard	USB 1.1/ 2.0
maximum supply current	500 mA

Auxiliary Input

frequency response	20 Hz – 20 kHz
input maximum voltage	1200 mV
input impedance	100 kΩ

General Specifications

operating voltage	14.4 V
current consumption	10 A
installation size (W x H x D)	182 x 112 x 160 mm
weight	3.53 lbs (1.60 kg)
