Kenwood DPX502 User Manual

English
|
33
–
+
FRONT L
FRONT R
REAR L
REAR R
P.CONT
ILLUMIILLUMI
ANT.
CONT
MUTE

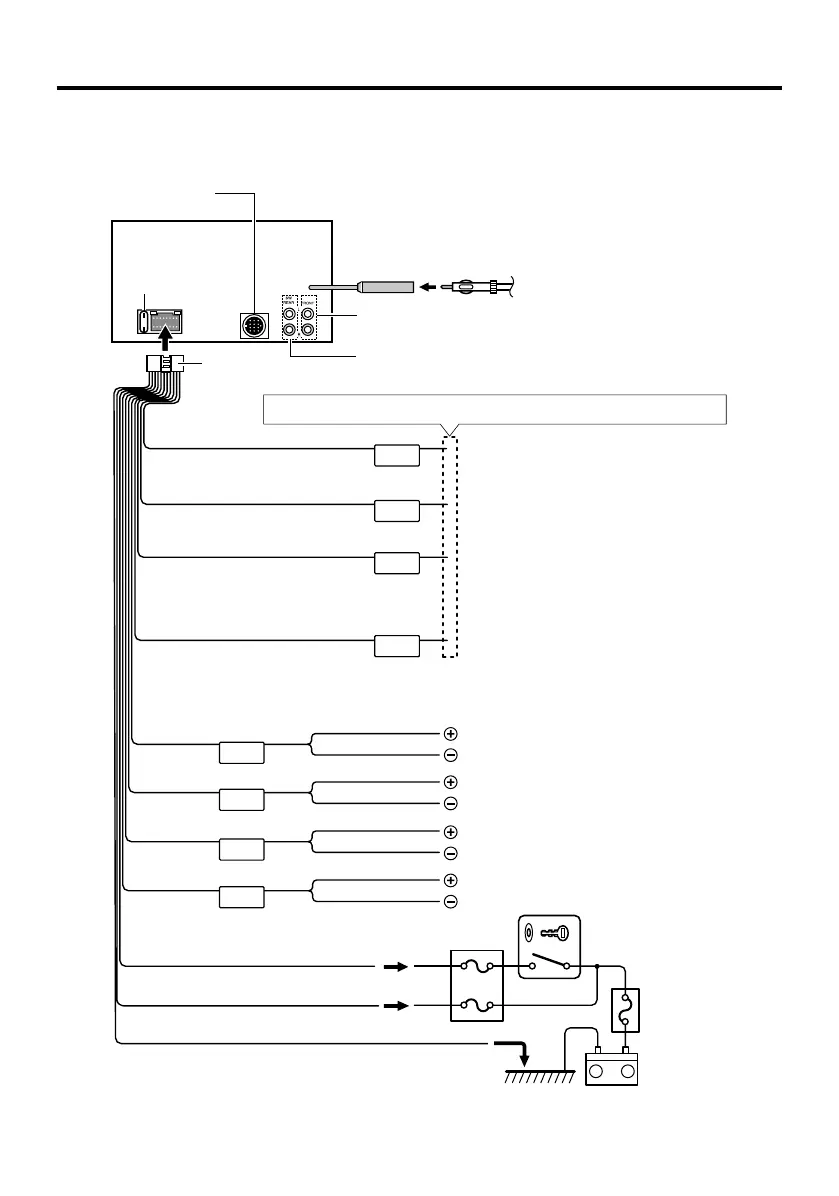

Connecting Wires to Terminals
Depending on what antenna you are using, connect
either to the control terminal of the motor antenna, or
to the power terminal for the booster amplifier of the
film-type antenna.
FM/AM
antenna input
Front left output (White)
Front right output (Red)
Fuse (10A)
To Kenwood disc changer/
External optional accessory
Wiring harness
(Accessory1)
White/Black
Gray/Black
Green/Black
Purple/Black
White
Gray
Green
Purple
To front left
speaker
To front right
speaker
To rear right
speaker
To rear left
speaker
Ignition wire (Red)
Battery wire (Yellow)
Ground wire (Black) - (To car chassis)
Ignition key
switch
Car fuse box
(Main fuse)
ACC
Car fuse box
Battery
If no connections are made, do not let the wire come out from the tab.
Rear left output (White)/ Sub Woofer left output (White)
Rear right output (Red)/ Sub Woofer right output (Red)
Motor antenna control wire (Blue)
Dimmer control wire (Orange / White)
To car light control switch
TEL mute wire (Brown)
Connect to the terminal that is grounded when either
the telephone rings or during conversation.
To connect the Kenwood navigation
system, consult your navigation manual.
⁄
⁄
Power control wire (Blue/White)
When using the optional power amplifier, connect
to its power control terminal.
To connect these leads, refer to the
relevant instruction manuals.
B64-3826-0000English.Indd33B64-3826-0000English.Indd33 07.4.2411:32:15AM07.4.2411:32:15AM

Kenwood DPX502 Specifications

FM Tuner Section

frequency range	87.9 MHz – 107.9 MHz
usable sensitivity	9.3 dBf (0.8 μV /75 Ω)
quieting sensitivity	15.2 dBf (1.6 μV /75 Ω)
frequency response	30 Hz – 15 kHz
signal to noise ratio (MONO)	70 dB
selectivity	≥ 80 dB
stereo separation	40 dB

AM Tuner Section

frequency range	530 kHz – 1700 kHz
usable sensitivity	28 dBμ (25 μV)

CD Player Section

spindle speed	1000 – 400 rpm (CLV 2times)
frequency response	10 Hz – 20 kHz
total harmonic distortion	0.008 %
signal to noise ratio	105 dB
dynamic range	93 dB

Audio Output

maximum output power	50 W x 4
full bandwidth power	22 W x 4
speaker impedance	4 - 8 Ω
preout level / load	2500 mV/10 kΩ
preout impedance	≤ 600 Ω

USB Interface

usb standard	USB 1.1/ 2.0
maximum supply current	500 mA

Auxiliary Input

frequency response	20 Hz – 20 kHz
input maximum voltage	1200 mV
input impedance	100 kΩ

General Specifications

operating voltage	14.4 V
current consumption	10 A
installation size (W x H x D)	182 x 112 x 160 mm
weight	3.53 lbs (1.60 kg)
