Kenwood DPX502 User Manual

English
|
35
Installation
Installing the Unit
Accessory4 (M5 × 7 mm)
or Accessory5(M5 × 6 mm)
Installing in Japanese-Made Cars and
General Motors Cars

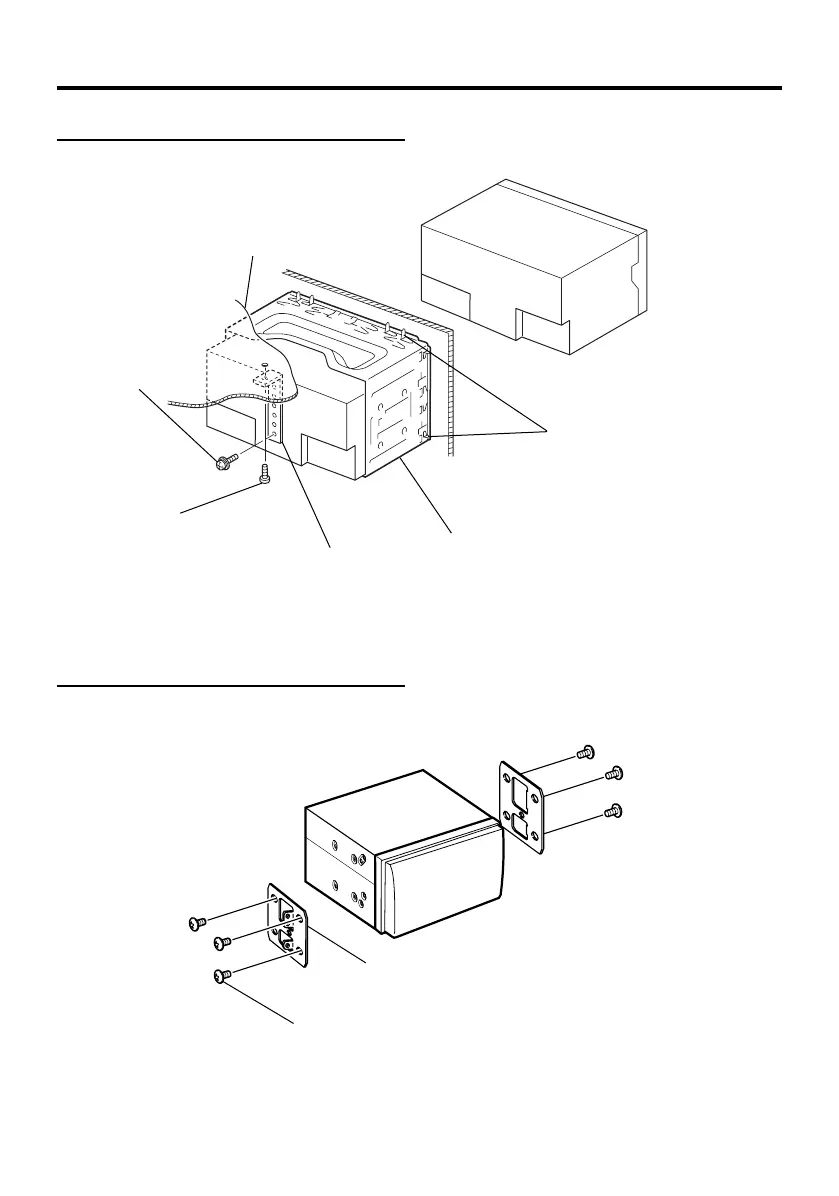

Install onto the car bracket using the supplied screws
(M5 × 6 mm, M5 × 7 mm).
The holes of the car bracket to use will differ
depending on the car model.
Car Bracket
Accessory6
Firewall or metal support
Screw (M4X8)
(commercially available)
Self-tapping screw
(commercially available)
Metal mounting strap
(commercially available)
Bend the tabs of the mounting
sleeve with a screwdriver or similar
utensil and attach it in place.
B64-3826-0000English.Indd35B64-3826-0000English.Indd35 07.4.2411:32:16AM07.4.2411:32:16AM

Kenwood DPX502 Specifications

FM Tuner Section

frequency range	87.9 MHz – 107.9 MHz
usable sensitivity	9.3 dBf (0.8 μV /75 Ω)
quieting sensitivity	15.2 dBf (1.6 μV /75 Ω)
frequency response	30 Hz – 15 kHz
signal to noise ratio (MONO)	70 dB
selectivity	≥ 80 dB
stereo separation	40 dB

AM Tuner Section

frequency range	530 kHz – 1700 kHz
usable sensitivity	28 dBμ (25 μV)

CD Player Section

spindle speed	1000 – 400 rpm (CLV 2times)
frequency response	10 Hz – 20 kHz
total harmonic distortion	0.008 %
signal to noise ratio	105 dB
dynamic range	93 dB

Audio Output

maximum output power	50 W x 4
full bandwidth power	22 W x 4
speaker impedance	4 - 8 Ω
preout level / load	2500 mV/10 kΩ
preout impedance	≤ 600 Ω

USB Interface

usb standard	USB 1.1/ 2.0
maximum supply current	500 mA

Auxiliary Input

frequency response	20 Hz – 20 kHz
input maximum voltage	1200 mV
input impedance	100 kΩ

General Specifications

operating voltage	14.4 V
current consumption	10 A
installation size (W x H x D)	182 x 112 x 160 mm
weight	3.53 lbs (1.60 kg)
