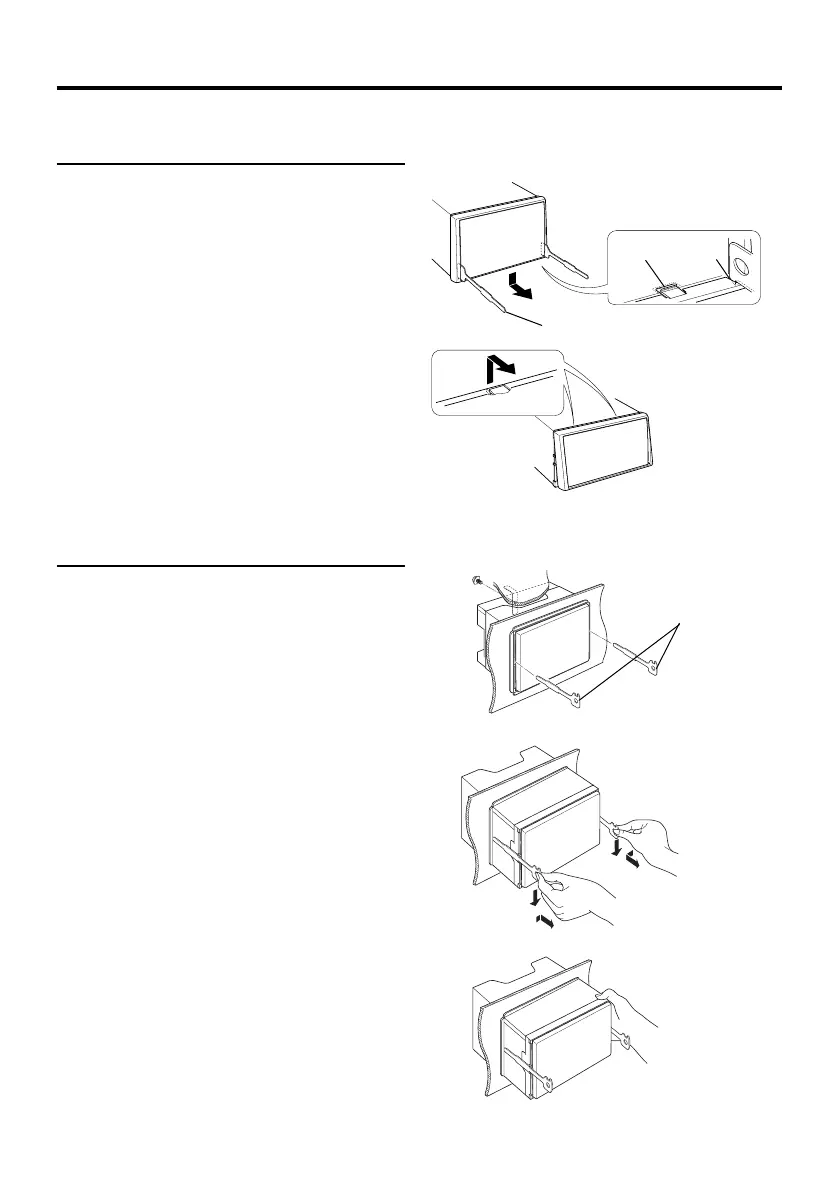

Removing the Hard Rubber Frame

(escutcheon)

Engage the catch pins on the removal tool 7 and

remove the two locks on the lower level.

Lower the frame and pull it forward as shown in

the figure.

2 When the lower level is removed, remove the

upper two locations.

⁄

• The frame can be removed from the top side in the same

manner.

Removing the Unit

1 Refer to the section <Removing the Hard Rubber

Frame> and then remove the hard rubber frame.

2 Remove the Hex-head screw with integral washer

(M4X8) on the back panel.

3 Insert the two removal tools 7 deeply into the

slots on each side, as shown.

4 Lower the removal tool towards the bottom, and

pull out the unit halfway while pressing towards

the inside.

• Be careful to avoid injury from the catch pins on the

removal tool.

5 Pull the unit all the way out with your hands,

carefully not to drop it.

Accessory7

Lock Catch

Removing the Unit
