Kenwood DPX502 User Manual

34
|
English

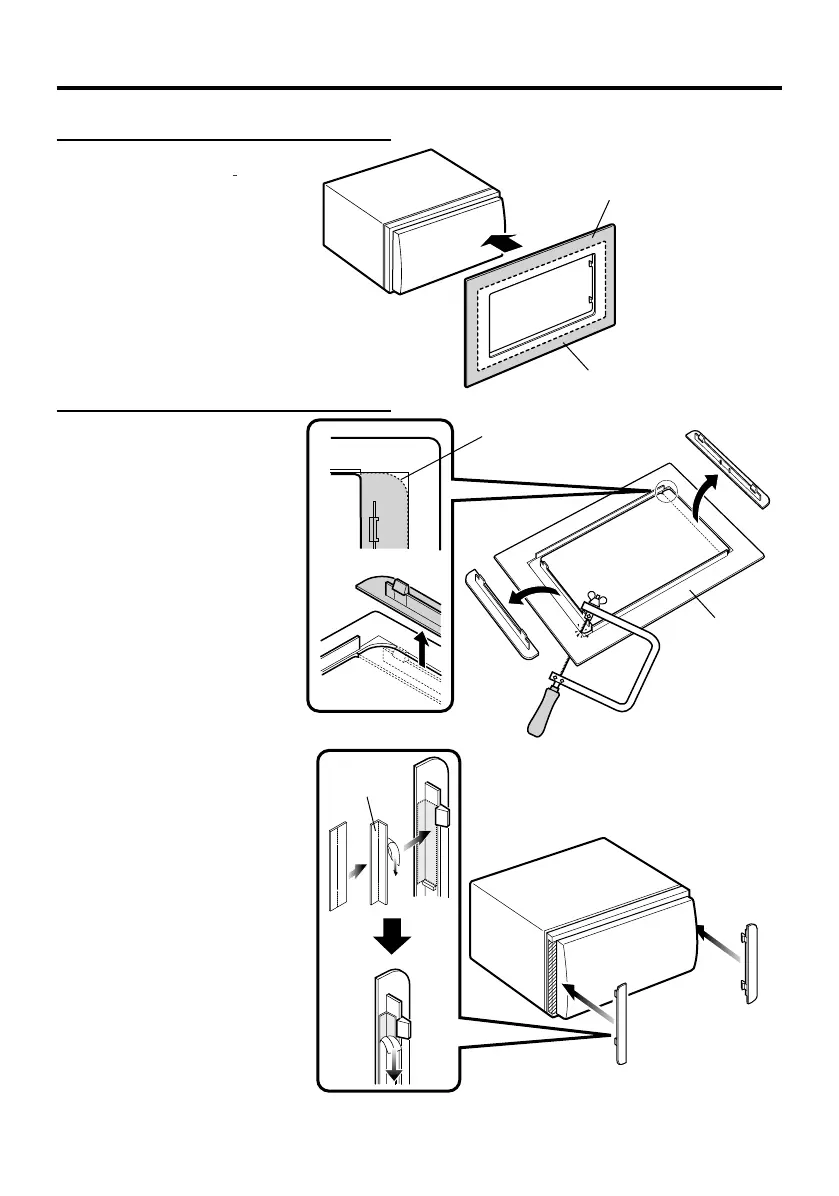

Installing the Escutcheon
For General Motors
1
Refer to the section <Removing
the Hard Rubber Frame> and then
remove the hard rubber frame.
2 Cut out accessory 2 to meet the
shape of the opening of the center
console.
3 Attach accessory 2 to the unit.
For TOYOTA/ SCION
1 Refer to the section <Removing
the Hard Rubber Frame> and then
remove the hard rubber frame.
2 Cut out accessory 2 as illustrated.
⁄
• When cutting out accessory 2, make
sure it fits the opening of the center
console.
3 Fold double-sided adhesive
(accessory 3) along the slit and
attach it to accessory 2 cut-out
against the center rib as illustrated.
Use 2 pieces of accessory 3 for 1
accessory 2 cut-out.
4 Attach accessory 2 cut-out to the
unit.
Accessory2
Cut out to meet the shape of the
opening in the vehicle.
Cutting line
Accessory2
Accessory3
B64-3826-0000English.Indd34B64-3826-0000English.Indd34 07.4.2411:32:16AM07.4.2411:32:16AM

Kenwood DPX502 Specifications

FM Tuner Section

frequency range	87.9 MHz – 107.9 MHz
usable sensitivity	9.3 dBf (0.8 μV /75 Ω)
quieting sensitivity	15.2 dBf (1.6 μV /75 Ω)
frequency response	30 Hz – 15 kHz
signal to noise ratio (MONO)	70 dB
selectivity	≥ 80 dB
stereo separation	40 dB

AM Tuner Section

frequency range	530 kHz – 1700 kHz
usable sensitivity	28 dBμ (25 μV)

CD Player Section

spindle speed	1000 – 400 rpm (CLV 2times)
frequency response	10 Hz – 20 kHz
total harmonic distortion	0.008 %
signal to noise ratio	105 dB
dynamic range	93 dB

Audio Output

maximum output power	50 W x 4
full bandwidth power	22 W x 4
speaker impedance	4 - 8 Ω
preout level / load	2500 mV/10 kΩ
preout impedance	≤ 600 Ω

USB Interface

usb standard	USB 1.1/ 2.0
maximum supply current	500 mA

Auxiliary Input

frequency response	20 Hz – 20 kHz
input maximum voltage	1200 mV
input impedance	100 kΩ

General Specifications

operating voltage	14.4 V
current consumption	10 A
installation size (W x H x D)	182 x 112 x 160 mm
weight	3.53 lbs (1.60 kg)
