Kenwood DPX502 User Manual

32
|
English

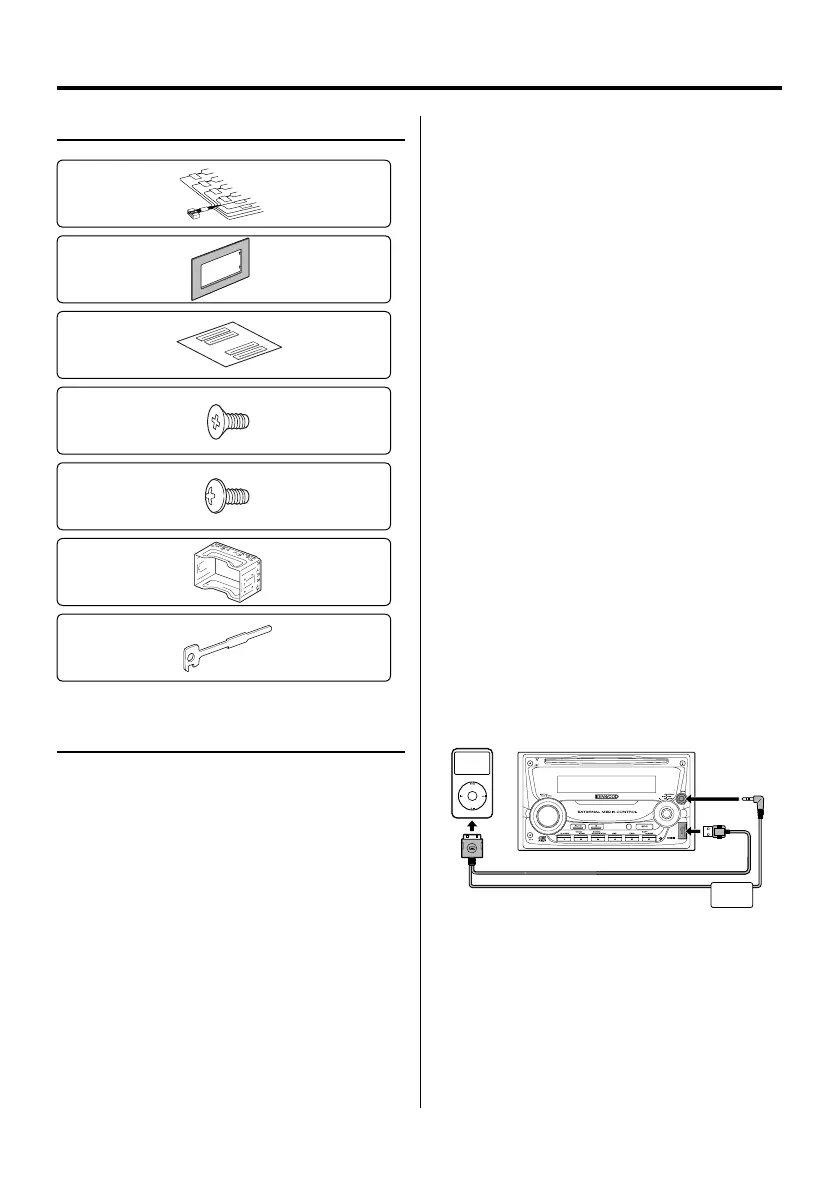

Accessories/ Installation Procedure
¤
• If the power is not turned ON ("PROTECT" is displayed),
the speaker wire may have a short-circuit or touched the
chassis of the vehicle and the protection function may
have been activated. Therefore, the speaker wire should be
checked.
• If your car’s ignition does not have an ACC position, connect
the ignition wires to a power source that can be turned on
and off with the ignition key. If you connect the ignition
wire to a power source with a constant voltage supply, as
with battery wires, the battery may die.
• If the console has a lid, make sure to install the unit so that
the faceplate will not hit the lid when closing and opening.
• If the fuse blows, first make sure the wires aren’t touching
to cause a short circuit, then replace the old fuse with one
with the same rating.
• Insulate unconnected wires with vinyl tape or other similar
material. To prevent a short circuit, do not remove the caps
on the ends of the unconnected wires or the terminals.
• Connect the speaker wires correctly to the terminals to
which they correspond. The unit may be damaged or fail to
work if you share the - wires or ground them to any metal
part in the car.
• When only two speakers are being connected to the
system, connect the connectors either to both the front
output terminals or to both the rear output terminals (do
not mix front and rear). For example, if you connect the +
connector of the left speaker to a front output terminal, do
not connect the - connector to a rear output terminal.
• After the unit is installed, check whether the brake lamps,
blinkers, wipers, etc. on the car are working properly.
• Mount the unit so that the mounting angle is 30° or less.
If You Want to Connect iPod
iPod
AUDIO OUT
KCA-iP200 (Optional accessory)
• No other optional accessory can be connected because
the USB connector and the AUX input are used for iPod
connection.
• Dual Zone System in <Audio Setup> (page 9) will become
unavailable.
Accessories
1
..........1
2
..........1
3
..........1
4
..........6
5
..........6
6
..........1
7
..........2
Installation Procedure
1. To prevent a short circuit, remove the key from the
ignition and disconnect the - battery.
2. Make the proper input and output wire
connections for each unit.
3. Connect the speaker wires of the wiring harness.
4. Connect the wiring harness wires in the following
order: ground, battery, ignition.
5. Connect the wiring harness connector to the unit.
6. Install the unit in your car.
7. Reconnect the - battery.
8. Press the reset button.
2WARNING
If you connect the ignition wire (red) and the battery wire
(yellow) to the car chassis (ground), you may cause a short
circuit, that in turn may start a fire. Always connect those
wires to the power source running through the fuse box.
B64-3826-0000English.Indd32B64-3826-0000English.Indd32 07.4.2411:32:14AM07.4.2411:32:14AM

Kenwood DPX502 Specifications

FM Tuner Section

frequency range	87.9 MHz – 107.9 MHz
usable sensitivity	9.3 dBf (0.8 μV /75 Ω)
quieting sensitivity	15.2 dBf (1.6 μV /75 Ω)
frequency response	30 Hz – 15 kHz
signal to noise ratio (MONO)	70 dB
selectivity	≥ 80 dB
stereo separation	40 dB

AM Tuner Section

frequency range	530 kHz – 1700 kHz
usable sensitivity	28 dBμ (25 μV)

CD Player Section

spindle speed	1000 – 400 rpm (CLV 2times)
frequency response	10 Hz – 20 kHz
total harmonic distortion	0.008 %
signal to noise ratio	105 dB
dynamic range	93 dB

Audio Output

maximum output power	50 W x 4
full bandwidth power	22 W x 4
speaker impedance	4 - 8 Ω
preout level / load	2500 mV/10 kΩ
preout impedance	≤ 600 Ω

USB Interface

usb standard	USB 1.1/ 2.0
maximum supply current	500 mA

Auxiliary Input

frequency response	20 Hz – 20 kHz
input maximum voltage	1200 mV
input impedance	100 kΩ

General Specifications

operating voltage	14.4 V
current consumption	10 A
installation size (W x H x D)	182 x 112 x 160 mm
weight	3.53 lbs (1.60 kg)
