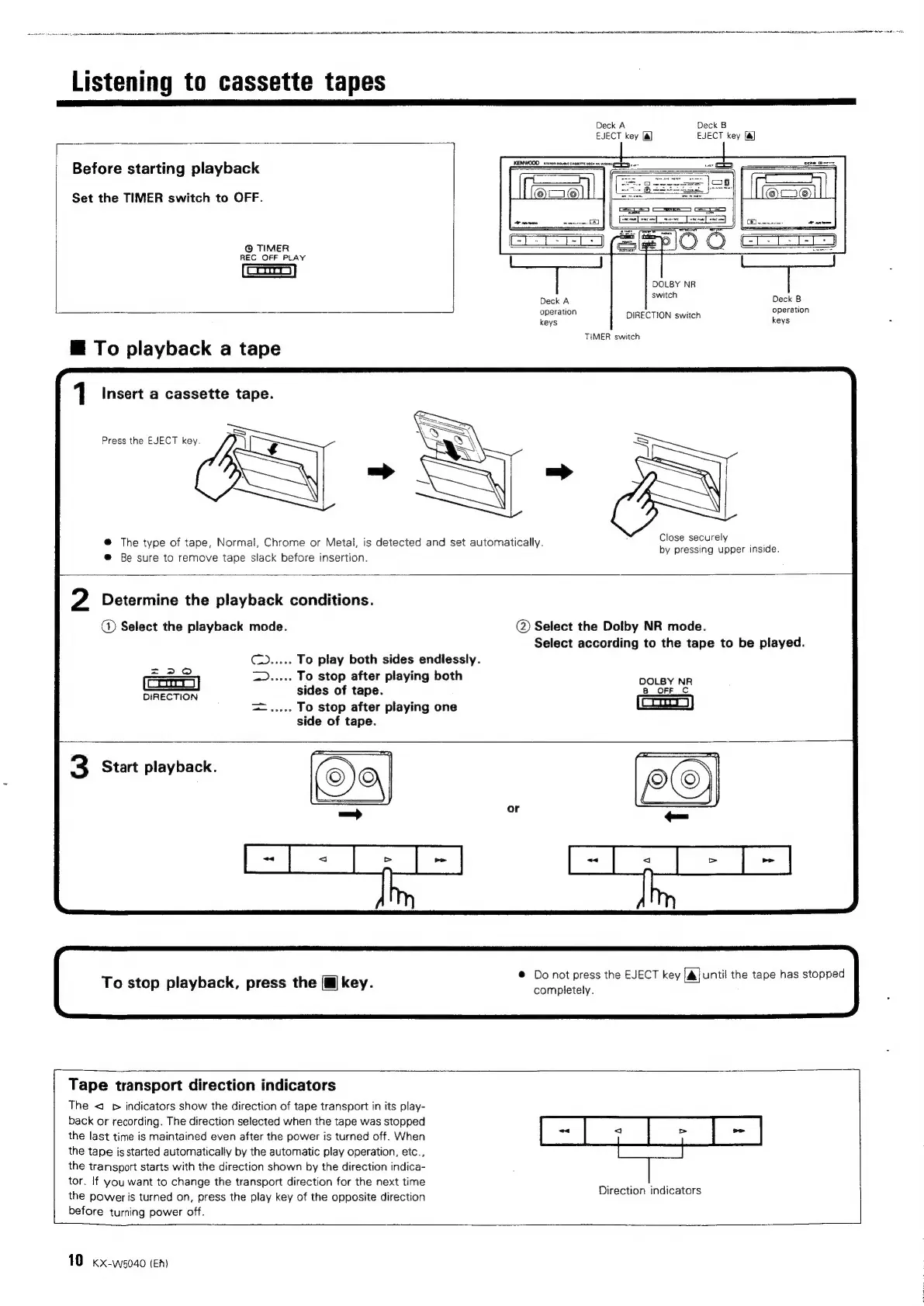

Kenwood KX-W5040 User Manual

Listening to cassette tapes
Deck A Deck B
EJECT key [al EJECT key [a]
Before starting playback
Set the TIMER switch to OFF.
@ TIMER
REC OFF PLAY
DOLBY NR
switch
Deck A Deck B
operation IRECTION wea operation
favs DIRECTION switc! keys
TIMER switch
@ To playback a tape
1 Insert a cassette tape.
Press the EJECT key.
Close securely
@ The type of tape, Normal, Chrome or Metal, is detected and set automatically. by presen union saside
@ Be sure to remove tape slack before insertion.
Determine the playback conditions.
@) Select the playback mode. @ Select the Dolby NR mode.
Select according to the tape to be played.
To play both sides endlessly.
To stop after playing both SOlLBY KA
sides of tape. B_OFF_C
DIRECTION
To stop after playing one (Co)
side of tape.
3 Start playback.
® Do not press the EJECT key |] until the tape has stopped
completely.
To stop playback, press the (@
[ Tape transport direction indicators
The <p indicators show the direction of tape transport in its play-
back or recording. The direction selected when the tape was stopped
the last time is maintained even after the power is turned off. When P~{ o< | = | =]
the tape is started automatically by the automatic play operation, etc., fiz Perea
the transport starts with the direction shown by the direction indica-
tor. If you want to change the transport direction for the next time
the poweris turned on, press the play key of the opposite direction
before turning power off.
Direction indicators
10 kx-wes040 (EA)

Kenwood KX-W5040 Specifications

Audio Specifications

track system	4-track, 2-channel stereo
harmonic distortion	Less than 0.6%
recording system	AC bias (Frequency: 105 kHz)
wow and flutter	0.08% (W.R.M.S.)
frequency response (normal tape)	20 Hz to 15, 000 Hz, +3 dB
frequency response (CrOz tape)	20 Hz to 16, 000 Hz, +3 dB
frequency response (metal tape)	20 Hz to 16, 000 Hz, +3 dB
signal-to-noise ratio (Dolby NR ON)	65 dB (Metal tape)
signal-to-noise ratio (Dolby NR OFF)	57 dB (Metal tape)

Input/Output Specifications

input sensitivity/impedance (B DECK LINE IN)	77.5 mV/50 kΩ
output level/impedance (LINE OUT)	390 mV/3.9 kΩ

Physical Specifications

dimensions (W)	440 mm (17-5/16")
dimensions (H)	129 mm (5-1/16")
dimensions (D)	269 mm (10-9/16")
weight (net)	4.5 kg (9.9 lb)

Power

power consumption	17 W
