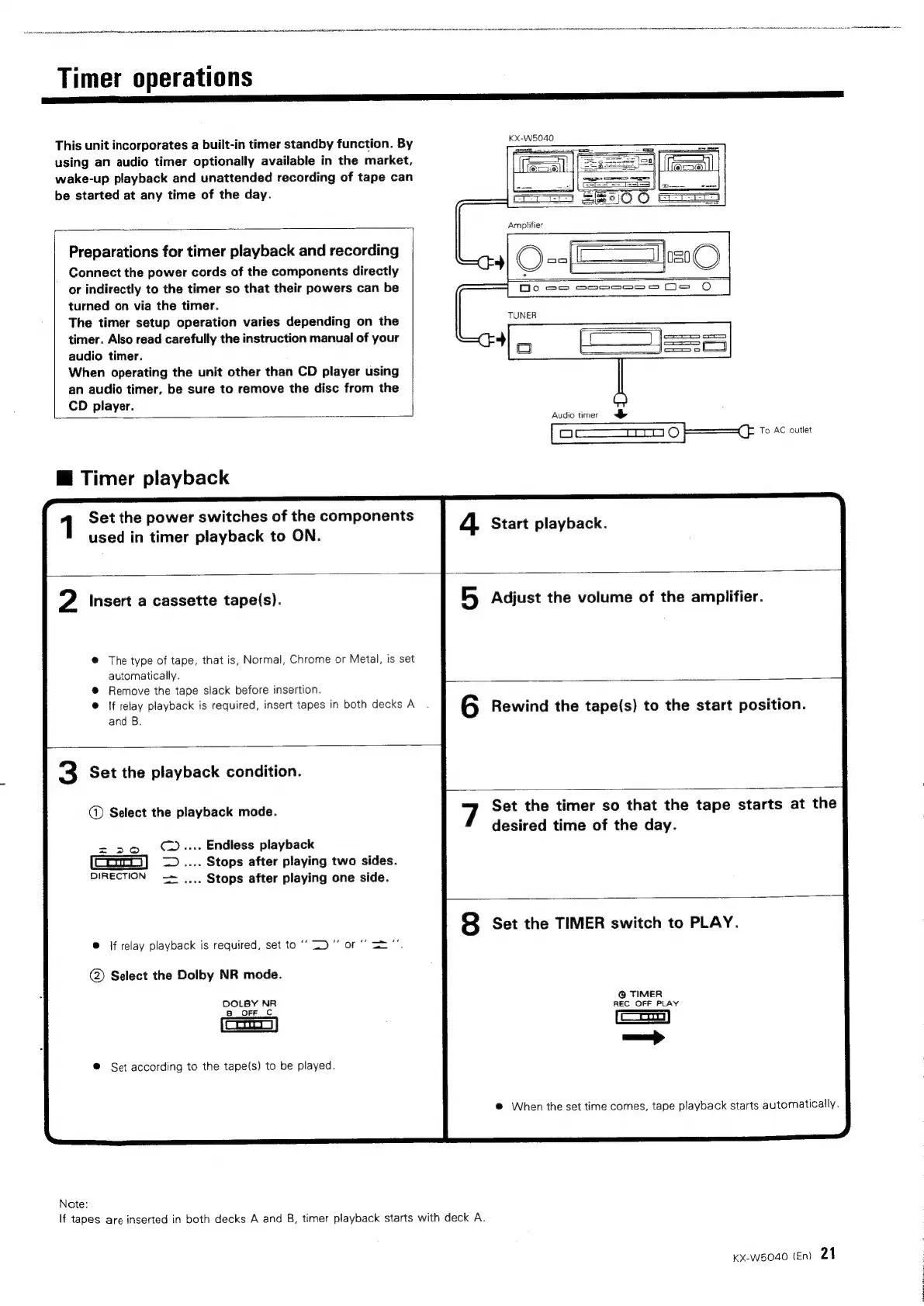

Timer operations
KX-W5040
This unit incorporates a built-in timer standby function. By
using an audio timer optionally available in the market,
wake-up playback and unattended recording of tape can
be started at any time of the day.
Amplifier
0-L=]
Oo ee Seseeas oS
Preparations for timer playback and recording
Connect the power cords of the components directly
or indirectly to the timer so that their powers can be
turned on via the timer.
The timer setup operation varies depending on the
timer. Also read carefully the instruction manual of your >
audio timer.
When operating the unit other than CD player using
an audio timer, be sure to remove the disc from the
CD player.
TUNER
o0 Ces
Audio timer
@ Timer playback
1
Set
the
power
switches
of
the
components
Start
playback.
used in timer playback to ON.
2
Insert
a
cassette
tape(s).
Adjust
the
volume
of
the
amplifier.
The type of tape, that is, Normal, Chrome or Metal, is set
automatically.
Remove the tape slack before insertion.
If
relay
playback
is
required,
insert
tapes
in
both
decks
A
.
Rewind
the
tape(s)
to
the
start
position.
and
B.
Set the playback condition.
@
Select
the
playback
mode.
Set
the
timer
so
that
the
tape
starts
at
the
desired
time
of
the
day.
=>.o0
©....
Endless
playback
=>
....
Stops
after
playing
two
sides.
DIRECTION
—
,,..
Stops
after
playing
one
side.
Set the TIMER switch to PLAY.
® jf relay playback is required, set to’ TD" or“ ="
@ Select the Dolby NR mode.
@ TIMER
DOLBY NR REC OFF PLAY
(aa)
—>
® Set according to the tape(s) to be played.
@
When
the
set
time
comes,
tape
playback
starts
automatically.
Note:
If tapes are inserted in both decks A and B, timer playback starts with deck A.
Kx-w5040
(En)
21

Kenwood KX-W5040 Specifications

Audio Specifications

track system	4-track, 2-channel stereo
harmonic distortion	Less than 0.6%
recording system	AC bias (Frequency: 105 kHz)
wow and flutter	0.08% (W.R.M.S.)
frequency response (normal tape)	20 Hz to 15, 000 Hz, +3 dB
frequency response (CrOz tape)	20 Hz to 16, 000 Hz, +3 dB
frequency response (metal tape)	20 Hz to 16, 000 Hz, +3 dB
signal-to-noise ratio (Dolby NR ON)	65 dB (Metal tape)
signal-to-noise ratio (Dolby NR OFF)	57 dB (Metal tape)

Input/Output Specifications

input sensitivity/impedance (B DECK LINE IN)	77.5 mV/50 kΩ
output level/impedance (LINE OUT)	390 mV/3.9 kΩ

Physical Specifications

dimensions (W)	440 mm (17-5/16")
dimensions (H)	129 mm (5-1/16")
dimensions (D)	269 mm (10-9/16")
weight (net)	4.5 kg (9.9 lb)

Power

power consumption	17 W
