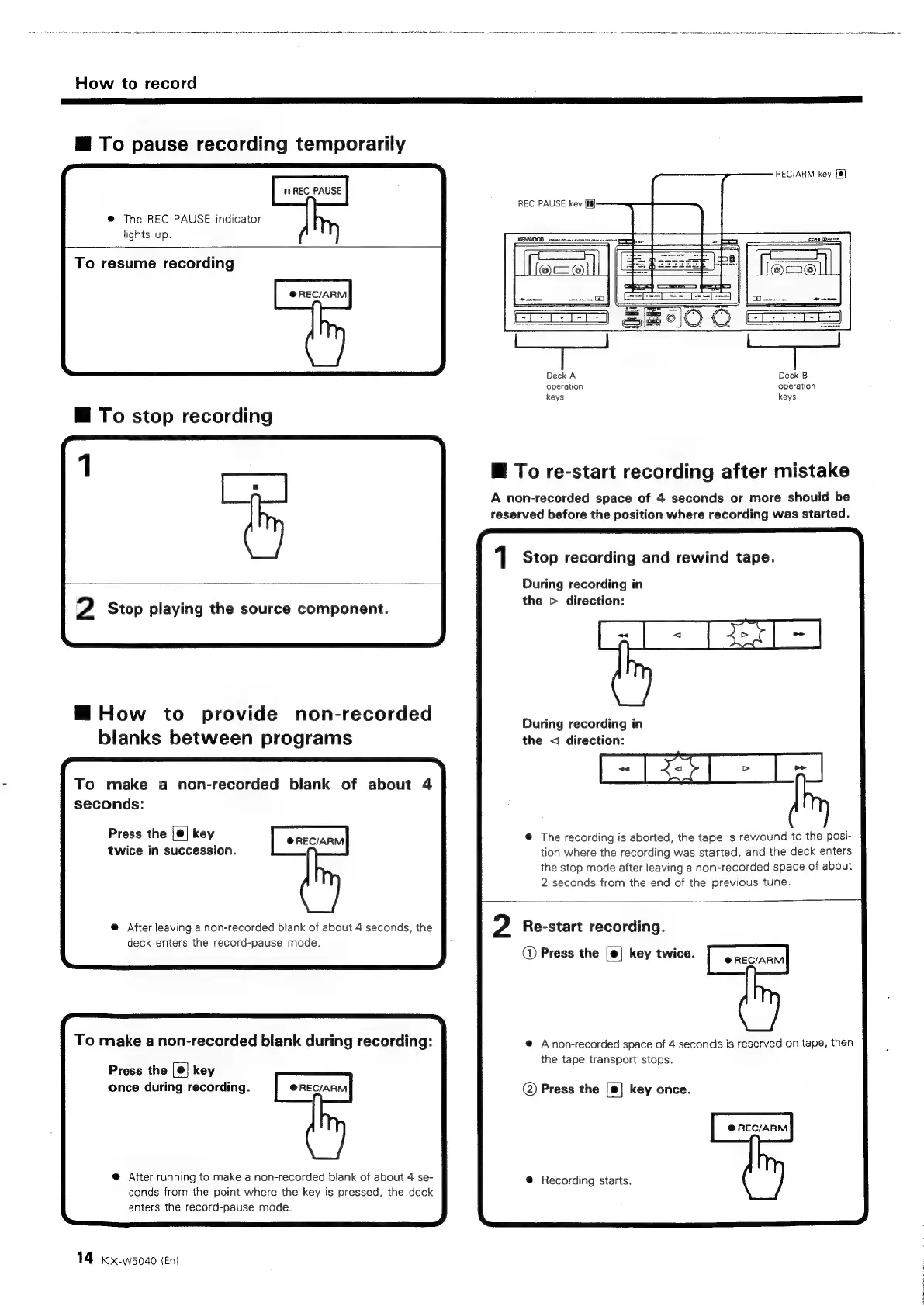

Kenwood KX-W5040 User Manual

How to record
@ To pause recording temporarily
teREC_PAUSE
@ The REC PAUSE indicator
lights up.
To resume recording
@REC/ARM
@ To stop recording
2 Stop playing the source component.
@ How to provide non-recorded
blanks between programs
To make a non-recorded blank of about 4
seconds:
Press the [@] key
its ‘ @REC/ARM
twice in succession.
@ After leaving a non-recorded blank of about 4 seconds, the
deck enters the record-pause mode.
To make a non-recorded blank during recording:
Press the [@] key
once during recording. @ REC/ARM
@ After running to make a non-recorded blank of about 4 se-
conds from the point where the key is pressed, the deck
enters the record-pause mode.
14 kx-ws040 (én)
REC/ARM key [@)
REC PAUSE key
Deck A Deck B
operation operation
keys keys
@ To re-start recording after mistake
A non-recorded space of 4 seconds or more should be
reserved before the position where recording was started.
1 Stop recording and rewind tape.
During recording in
the > direction:
Pe ee
During recording in
the < direction:
Eas oe ie
® The recording is aborted, the tape is rewound to the posi-
tion where the recording was started, and the deck enters
the stop mode after leaving a non-recorded space of about
2 seconds from the end of the previous tune.
2 Re-start recording.
@
Press
the
[@]
key
twice.
|
enegann]
®@ Anon-recorded space of 4 seconds is reserved on tape, then
the tape transport stops.
@ Press the [@] key once.
@ REC/ARM
®@ Recording starts.

Kenwood KX-W5040 Specifications

Audio Specifications

track system	4-track, 2-channel stereo
harmonic distortion	Less than 0.6%
recording system	AC bias (Frequency: 105 kHz)
wow and flutter	0.08% (W.R.M.S.)
frequency response (normal tape)	20 Hz to 15, 000 Hz, +3 dB
frequency response (CrOz tape)	20 Hz to 16, 000 Hz, +3 dB
frequency response (metal tape)	20 Hz to 16, 000 Hz, +3 dB
signal-to-noise ratio (Dolby NR ON)	65 dB (Metal tape)
signal-to-noise ratio (Dolby NR OFF)	57 dB (Metal tape)

Input/Output Specifications

input sensitivity/impedance (B DECK LINE IN)	77.5 mV/50 kΩ
output level/impedance (LINE OUT)	390 mV/3.9 kΩ

Physical Specifications

dimensions (W)	440 mm (17-5/16")
dimensions (H)	129 mm (5-1/16")
dimensions (D)	269 mm (10-9/16")
weight (net)	4.5 kg (9.9 lb)

Power

power consumption	17 W
