Kenwood KX-W5040 User Manual

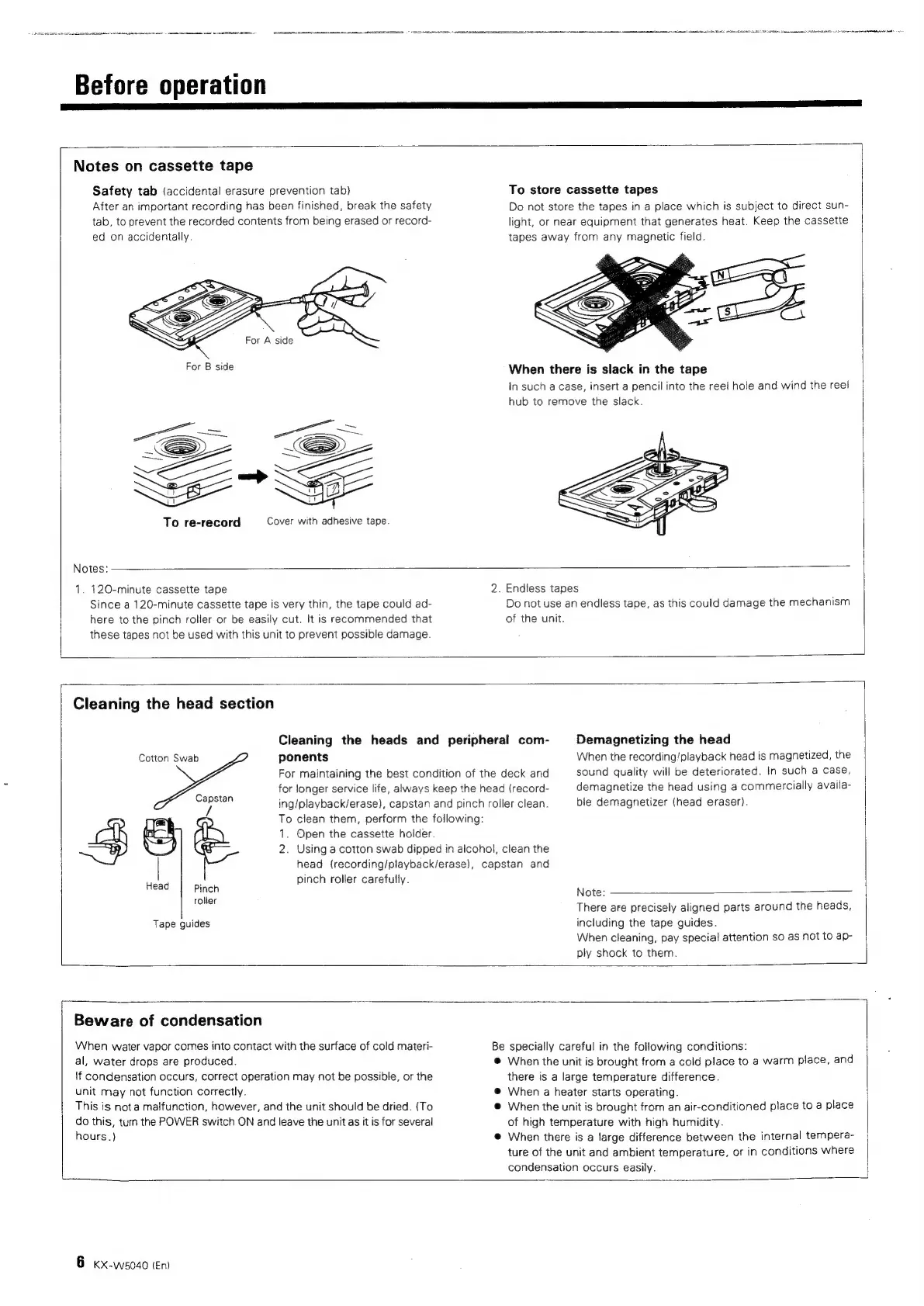

Before operation
Notes on cassette tape
Safety tab (accidental erasure prevention tab)
After an important recording has been finished, break the safety
tab, to prevent the recorded contents from being erased or record-
ed on accidentally.
For B side
To re-record Cover with adhesive tape.
Notes:
To store cassette tapes
Do not store the tapes in a place which is subject to direct sun-
light, or near equipment that generates heat. Keep the cassette
tapes away from any magnetic field.
When there is slack in the tape
in such a case, insert a pencil into the reel hole and wind the reel
hub to remove the slack.
1. 120-minute cassette tape
Since a 120-minute cassette tape is very thin, the tape could ad-
here to the pinch roller or be easily cut. It is recommended that
these tapes not be used with this unit to prevent possible damage.
2. Endless tapes
Do not use an endless tape, as this could damage the mechanism
of the unit.
—
Cleaning the head section
Cotton Swab
Capstan
Cleaning the heads and peripheral com-
ponents
For maintaining the best condition of the deck and
for longer service life, always keep the head (record-
ing/playback/erase), capstan and pinch roller clean.
Demagnetizing the head
When the recording/playback head is magnetized, the
sound quality will be deteriorated. In such a case,
demagnetize the head using a commercially availa-
ble demagnetizer (head eraser).
To clean them, perform the following:
fa F 1. Open the cassette holder.
ae 2. Using a cotton swab dipped in alcohol, clean the
head (recording/playback/erase), capstan and
pinch roller carefully.
Head
|
Pinch
Algees
tt
-
ne
There
are
precisely
aligned
parts
around
the
heads,
Tape
guides
including
the
tape
guides.
When cleaning, pay special attention so as not to ap-
ply shock to them.
Beware of condensation
When water vapor comes into contact with the surface of cold materi-
al, water drops are produced.
\f condensation occurs, Correct operation may not be possible, or the
unit may not function correctly.
This is not a malfunction, however, and the unit should be dried. (To
do this, turn the POWER switch ON and leave the unit as it is for several
hours.)
Be specially careful in the following conditions:
® When the unit is brought from a cold place to a warm place, and
there is a large temperature difference.
@ When a heater starts operating.
@ When the unit is brought from an air-conditioned place to a place
of high temperature with high humidity.
@ When there is a large difference between the internal tempera-
ture of the unit and ambient temperature, or in conditions where
condensation occurs easily.
6 kx-ws040 (en)

Kenwood KX-W5040 Specifications

Audio Specifications

track system	4-track, 2-channel stereo
harmonic distortion	Less than 0.6%
recording system	AC bias (Frequency: 105 kHz)
wow and flutter	0.08% (W.R.M.S.)
frequency response (normal tape)	20 Hz to 15, 000 Hz, +3 dB
frequency response (CrOz tape)	20 Hz to 16, 000 Hz, +3 dB
frequency response (metal tape)	20 Hz to 16, 000 Hz, +3 dB
signal-to-noise ratio (Dolby NR ON)	65 dB (Metal tape)
signal-to-noise ratio (Dolby NR OFF)	57 dB (Metal tape)

Input/Output Specifications

input sensitivity/impedance (B DECK LINE IN)	77.5 mV/50 kΩ
output level/impedance (LINE OUT)	390 mV/3.9 kΩ

Physical Specifications

dimensions (W)	440 mm (17-5/16")
dimensions (H)	129 mm (5-1/16")
dimensions (D)	269 mm (10-9/16")
weight (net)	4.5 kg (9.9 lb)

Power

power consumption	17 W
