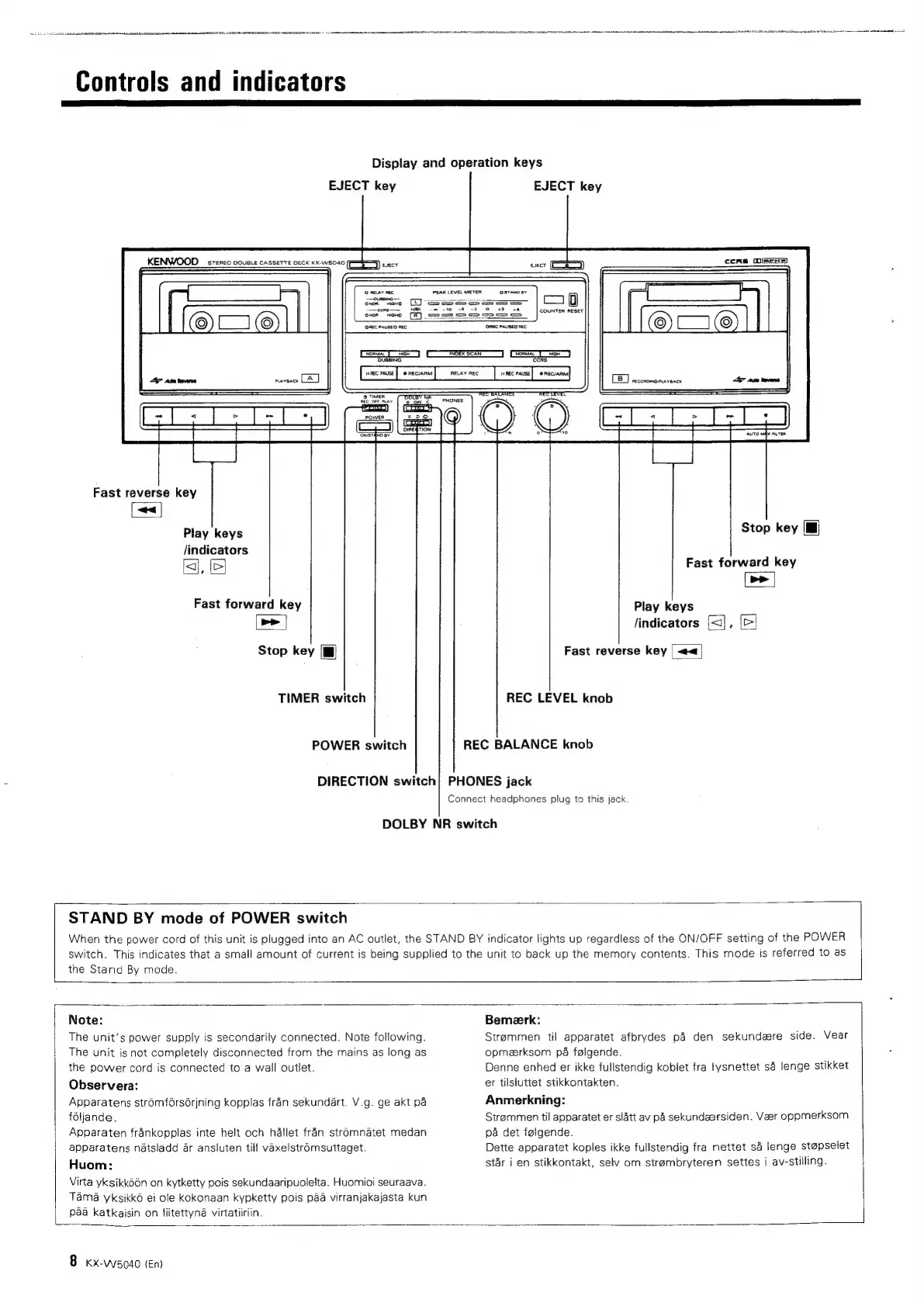

Controls and indicators
Display and operation keys
EJECT key
KENWOOD _ stereo nousie CASSETTE DECK Kx.w5040 Fj
EJECT key
—ccrs— (08)
NOR HIGHO
OSTAND BY
OREC PAUSEO REC
‘DUBEING
PURYBACK
rar
CCAS
Fast reverse key
| <a
Play keys
/indicators
fq,
Fast forward key
[>>|
Stop key
TIMER switch
POWER switch
Stop key I
Fast forward key
[>>|
Play keys
findicators [<], [>|
Fast reverse key | «|
REC LEVEL knob
REC BALANCE knob
DIRECTION switch| PHONES jack
Connect headphones plug to this jack.
DOLBY NR switch
STAND BY mode of POWER switch
When the power cord of this unit is plugged into an AC outlet, the STAND BY indicator lights up regardless of the ON/OFF setting of the POWER
switch. This indicates that a small amount of current is being supplied to the unit to back up the memory contents. This mode is referred to as
the Stand By mode.
Note:
The unit’s power supply is secondarily connected. Note following.
The unit is not completely disconnected from the mains as long as
the power cord is connected to a wall outlet.
Observera:
Apparatens stramférsorjning kopplas fran sekundart. V.g. ge akt pa
fdljande.
Apparaten frankopplas inte helt och hallet fran str6mnatet medan
apparatens natsladd ar ansluten till vaxelstr6msuttaget.
Huom:
Virta yksikkoOn on kytketty pois sekundaaripuoleita. Huomioi seuraava.
Tama yksikk6 ei ole kokonaan kypketty pois paa virranjakajasta kun
paa katkaisin on liitettyna virtatiiriin.
Bemeerk:
Strammen til apparatet afbrydes pé den sekundare side. Vear
opmeerksom pa falgende.
Denne enhed er ikke fullstendig kobiet fra lysnettet s& lenge stikket
er tilsluttet stikkontakten.
Anmerkning:
Strammen til apparatet er slatt av pa sekundzersiden. Veer oppmerksom
pa det faigende.
Dette apparatet koples ikke fullstendig fra nettet sa lenge stepselet
star i en stikkontakt, selv om strambryteren settes i av-stilling.
B kx-w5040 (En)

Kenwood KX-W5040 Specifications

Audio Specifications

track system	4-track, 2-channel stereo
harmonic distortion	Less than 0.6%
recording system	AC bias (Frequency: 105 kHz)
wow and flutter	0.08% (W.R.M.S.)
frequency response (normal tape)	20 Hz to 15, 000 Hz, +3 dB
frequency response (CrOz tape)	20 Hz to 16, 000 Hz, +3 dB
frequency response (metal tape)	20 Hz to 16, 000 Hz, +3 dB
signal-to-noise ratio (Dolby NR ON)	65 dB (Metal tape)
signal-to-noise ratio (Dolby NR OFF)	57 dB (Metal tape)

Input/Output Specifications

input sensitivity/impedance (B DECK LINE IN)	77.5 mV/50 kΩ
output level/impedance (LINE OUT)	390 mV/3.9 kΩ

Physical Specifications

dimensions (W)	440 mm (17-5/16")
dimensions (H)	129 mm (5-1/16")
dimensions (D)	269 mm (10-9/16")
weight (net)	4.5 kg (9.9 lb)

Power

power consumption	17 W
