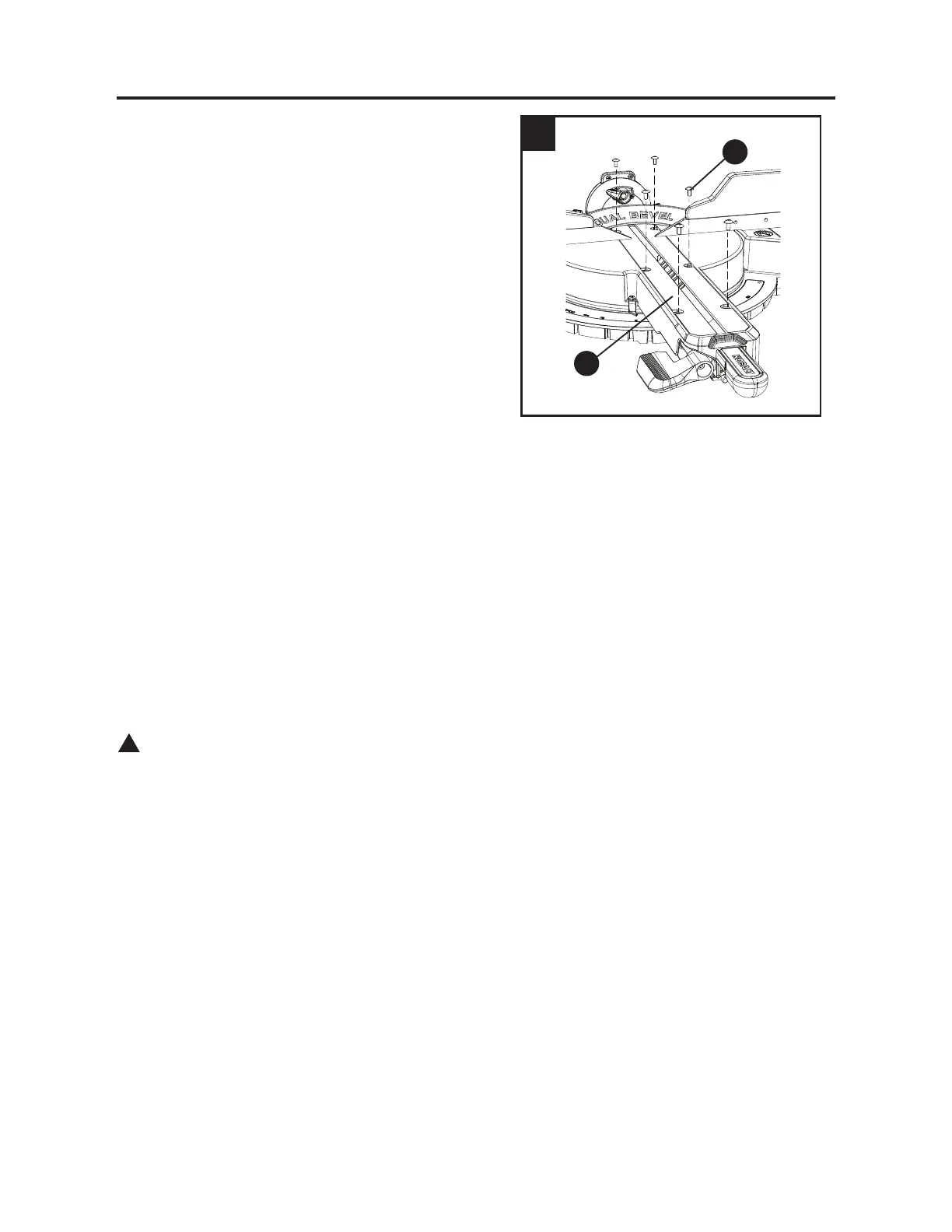

REMOVING AND INSTALLING THE TABLE
INSERTS (FIG. 5)
NOTE: The miter saw comes with the table
inserts already installed. These instructions are for
replacing or adjusting either insert side.
To avoid injury:
ŏ Always unplug the saw to avoid accidental
starting. Remove all small pieces of material
from the table cavity before performing any
cuts. The table insert may be removed for this
purpose, but always reattach the table insert
prior to performing a cutting operation.
ŏ Do not start the sliding compound miter saw
without checking for interference between the
blade and table insert. Damage could result
to the blade, table insert or turntable if a blade
strike occurs during the cutting operation.
ŏ To remove, loosen and remove the six
screws (1) on the table insert (2) with a Phillips
screwdriver and remove the inserts.
ŏ To install, reposition the left and right side
inserts on either side of the cut line, replace the
six screws and tighten.
ŏ Check for blade clearance by moving the slide
carriage through the full motion of the blade in
the table slot. If neither side of the insert hits the
saw blade, loosen the three screws for that side
and adjust. Tighten the screws and check again
for blade clearance.
Never use the saw without the table inserts in place.
