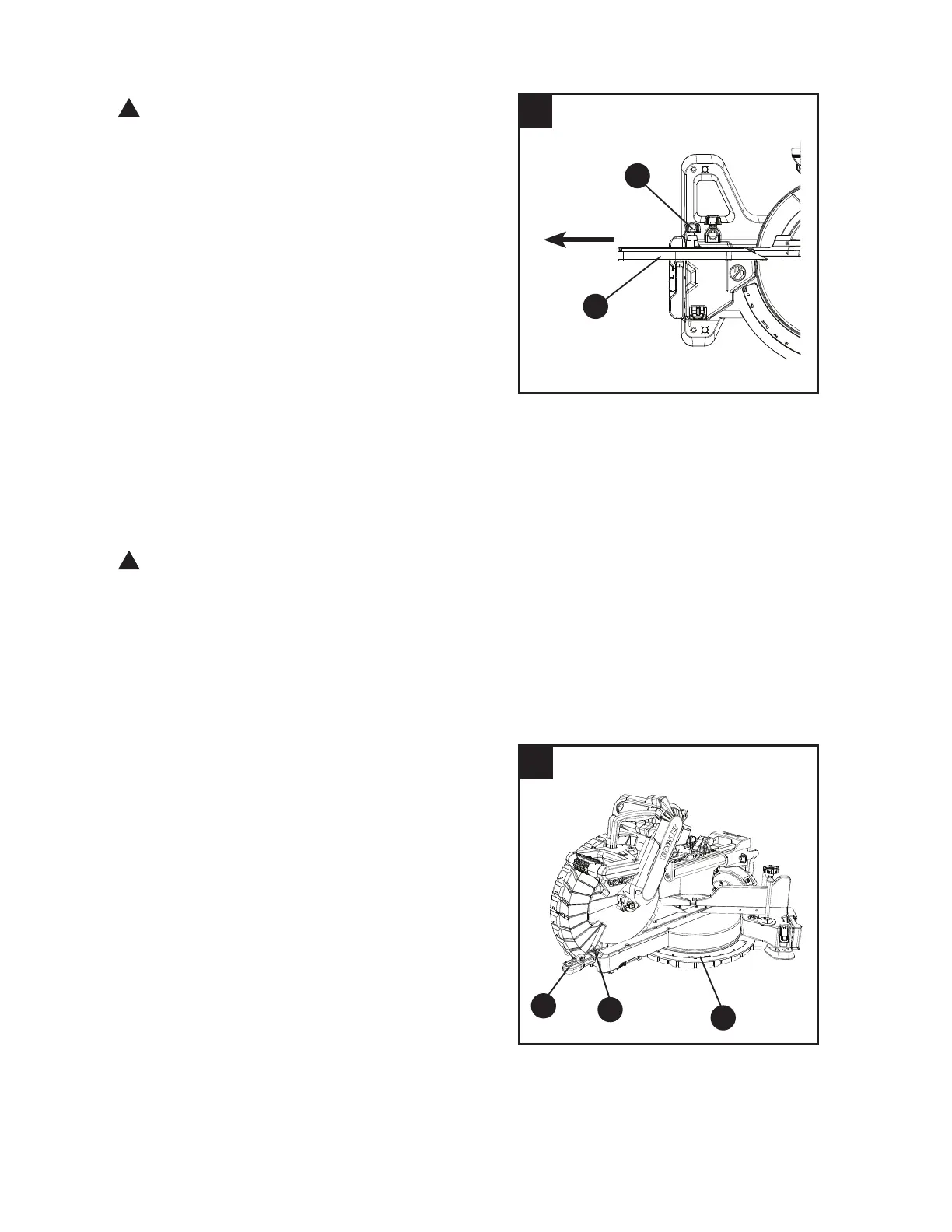

SLIDING FENCE (FIG. 32)
The sliding fence must be extended when making
any bevel cut. Failure to extend the sliding fence
will not allow enough space for the blade to pass
through, which could result in serious injury. At
extreme miter or bevel angles, the saw blade may
also contact the fence.
ŏ Loosen the fence locking knob (1) by turning it
counterclockwise, then slide the fence (2) out.
ŏ Tighten the fence locking knob (1).
NOTE: When transporting the saw, always
secure the sliding fence in the inward position
and locked.
BEFORE LEAVING THE SAW
ŏ Never leave tool running unattended. Turn
power OFF. Wait for all moving parts to stop.
ŏ Make workshop childproof. Lock the shop.
Disconnect master switches. Store tool away
IURPFKLOGUHQDQGRWKHUXQTXDOL¿HGXVHUV
To avoid injury from materials being thrown, always
unplug the saw to avoid accidental starting and
remove small pieces of material from the table
cavity.
MITER CUT (FIG. 33)
ŏ When a miter cut is required, unlock the miter
table by lifting up the miter lock handle (1).
ŏ While holding the miter handle, press down on
the positive stop locking button (2).
ŏ Rotate the miter table to the right or left with the
miter handle.
ŏ When the table is in the desired position, as
shown on the miter scale (3), release the
positive stop locking button and pressing down
the miter handle to tighten the miter table.
The table is now locked at the desired angle.
Positive stops are provided at 0°, 15°, 22.5°,
31.6°, 45° left and right and 60° right.
ŏ Turn the laser guide on and position the
workpiece on the table for pre-alignment of
your cut.
IMPORTANT: Always tighten the miter handle
before performing a cut.
WARNING
!
WARNING
!
1
2
33
1
2
3
