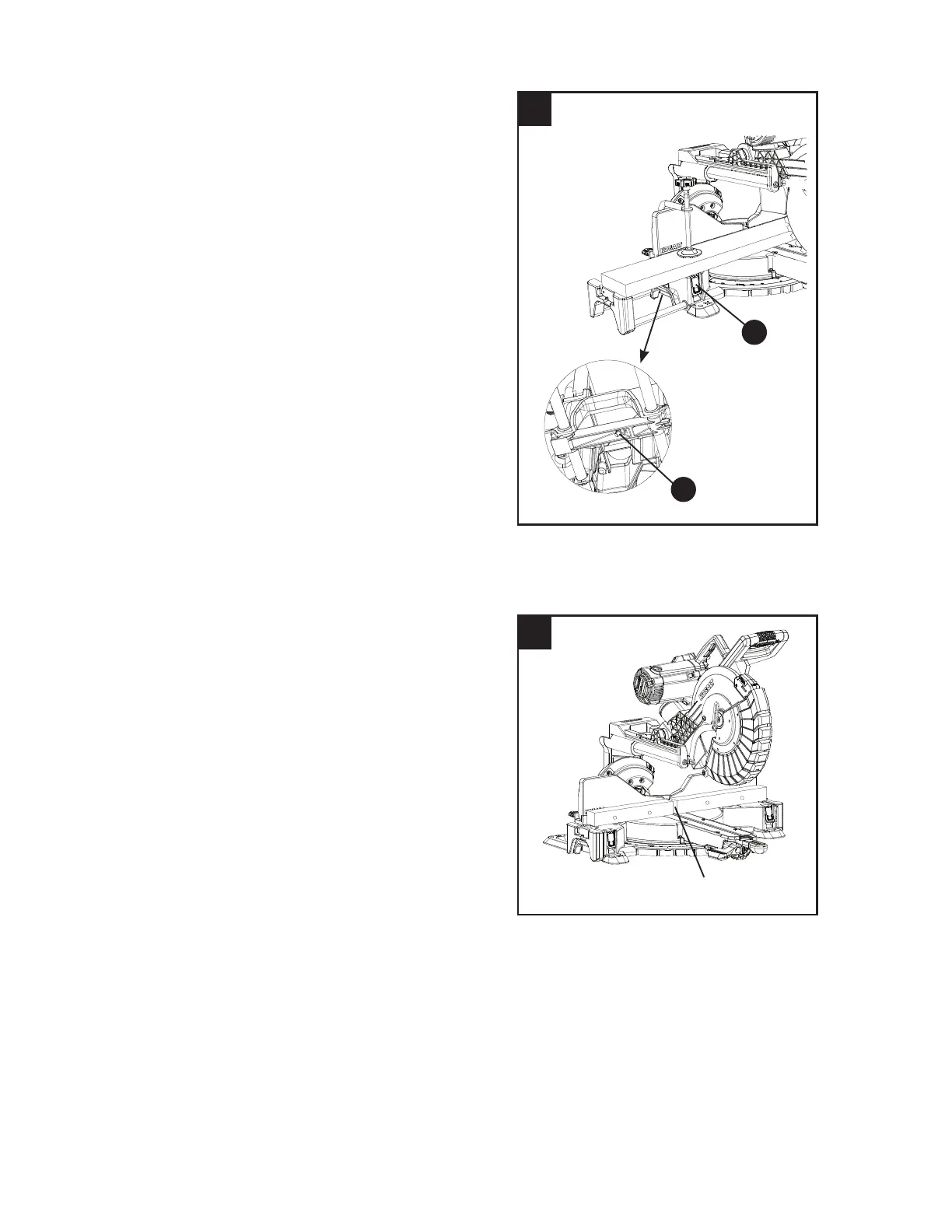

WORKPIECE SUPPORT (FIG. 41)
NOTE: Long pieces need extension wing support.
ŏ Lift up the lock lever (1) to unlock the extension
table. Slide the extension wing to desired
position and push down the lock lever (1) to
tighten. If the lock lever (1) is not tight enough,
adjust the nuts (2) located underneath the base
1/4 turn counterclockwise.
AUXILIARY WOOD FENCE (FIG. 42)
When making multiple or repetitive cuts that result
in cut-off pieces of one inch or less, it is possible for
the saw blade to catch the cut-off piece and throw it
out of the saw or into the blade guard and housing,
possibly causing damage or injury. To minimize this,
an auxiliary wood fence can be mounted to your
saw.
Holes are provided in the saw fence to attach an
auxiliary wood fence. This fence is to be constructed
of straight wood approximately 3/4 in. thick by
2-1/2 in. high by 22 in. long.
Attach the wood fence securely and make a full depth
cut to make a blade slot. Check for interference
between the wood fence and the lower blade guard.
Adjust if necessary.
NOTE: This auxiliary fence is used only with the
saw blade in the 0° bevel position (90° to the table).
The auxiliary wood fence must be removed when
bevel cutting.
