37
CUTTING BASE MOULDING (FIG. 43)
Base mouldings and many other mouldings can
be cut on a compound miter saw. The setup of
the saw depends on moulding characteristics and
applications, as shown. Perform practice cuts on
scrap material to achieve best results:
ŏ $OZD\VPDNHVXUHPRXOGLQJVUHVW¿UPO\
against the fence and table. Use hold-down or
C-clamps, whenever possible, and place tape
on the area being clamped to avoid marks.
ŏ Reduce splintering by taping the cut area prior
to making cut. Mark cut line directly on the tape.
ŏ Splintering typically happens due to wrong blade
application and thinness of the material.
NOTE: Always perform a dry run cut so you can
determine if the operation being attempted is
possible before power is applied to the saw.
CUTTING CROWN MOULDING (FIG. 44, 45)
<RXUFRPSRXQGPLWHUVDZLVVXLWHGIRUWKHGLI¿FXOW
WDVNRIFXWWLQJFURZQPRXOGLQJ7R¿WSURSHUO\FURZQ
moulding must be compound-mitered with extreme
accuracy. The two surfaces on a piece of crown
PRXOGLQJWKDW¿WÀDWDJDLQVWWKHFHLOLQJDQGZDOO
are at angles that, ZKHQDGGHGWRJHWKHUHTXDO
exactly 90°.
Most crown moulding has a top rear angle (the
VHFWLRQWKDW¿WVÀDWDJDLQVWWKHFHLOLQJRIDQGD
ERWWRPUHDUDQJOHWKHVHFWLRQWKDW¿WVÀDWDJDLQVW
the wall) of 38°.
In order to accurately cut crown moulding for a 90°
inside or outside corner, lay the moulding with its
EURDGEDFNVXUIDFHÀDWRQWKHVDZWDEOH
When setting the bevel and miter angles for
compound miters, remember the settings are
interdependent; changing one changes the other,
as well.
43
F
e
n
c
e
Miter at 45°, bevel at 0°
Miter saw table
Workpiece
Miter at 0°, bevel at 45°
F
e
n
c
e
Miter saw table
Workpiece
44
45
F
e
n
c
e
Miter saw table
Workpiece
Miter saw table
Workpiece
F
e
n
c
e

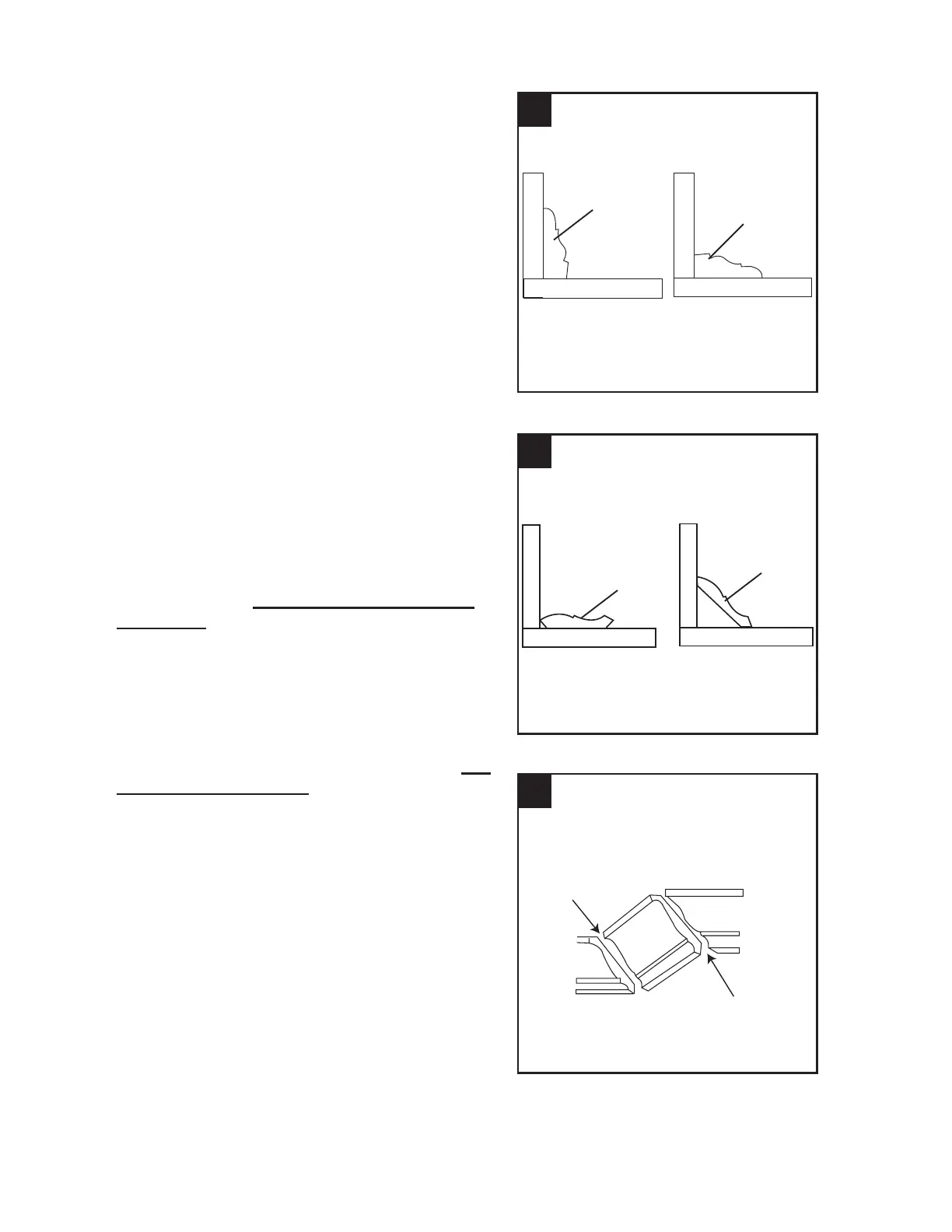

Settings for standard crown moulding lying
ÀDWRQFRPSRXQGPLWHUVDZWDEOH
Compound cut crown mouldings
Inside corner
Outside corner
IR
IL
OL
OR
Bevel/Miter Settings
See next page for settings chart
To Next Page
