ŏ Slide the two fences into the rear position (2).

Tighten the two fence locking knobs.

$OZD\VPDNHGU\UXQVXQSRZHUHGEHIRUH¿QLVK

cuts to check the path of the blade and the operation

of the guards. Ensure the fence does not interfere

with the action of the saw or guards.

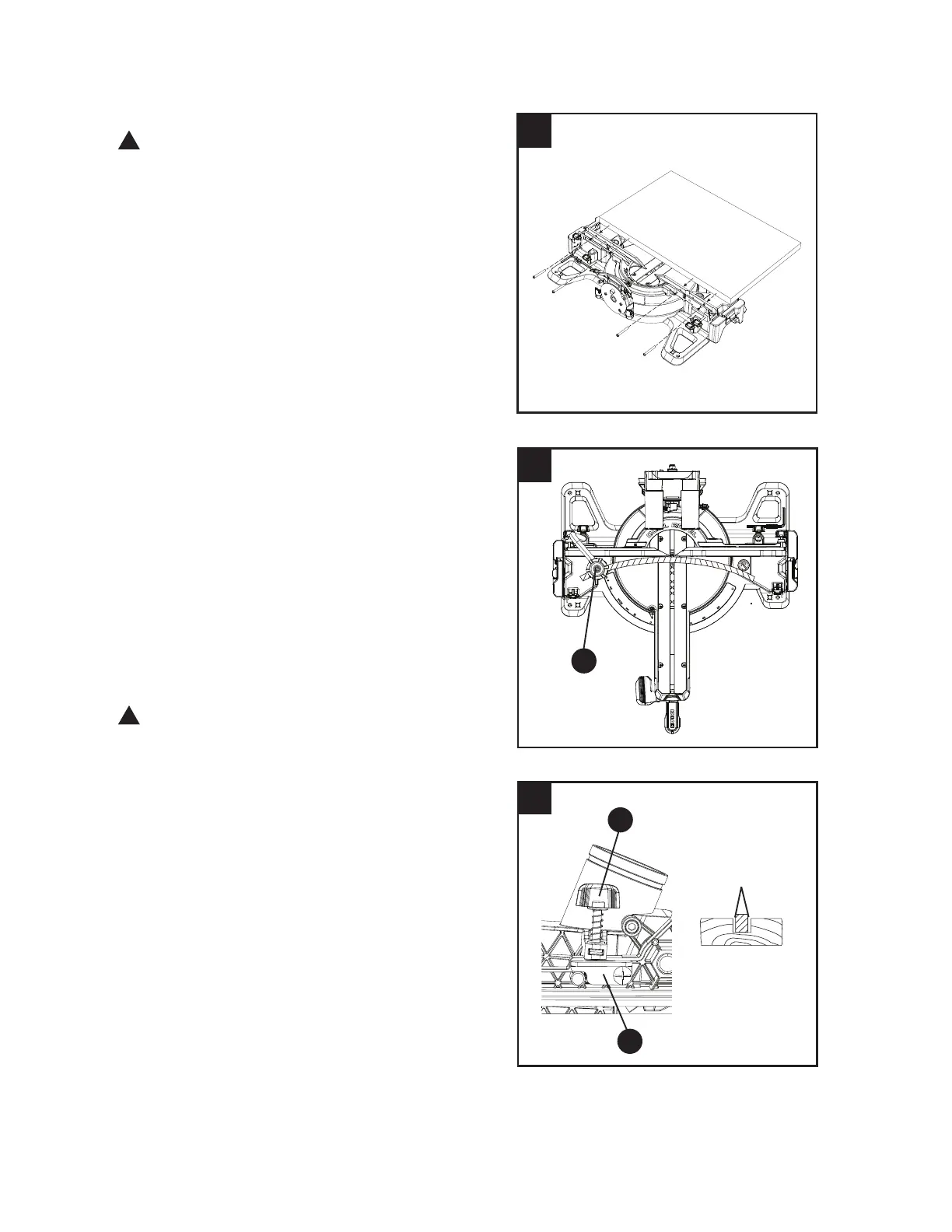

CUTTING BOWED MATERIAL (FIG. 39)

A bowed workpiece must be positioned against the

fence and secured with a clamp (1) before cutting

as shown. Do not position workpiece incorrectly or

try to cut the workpiece without the support of the

fence. This will cause the blade to bind and could

result in personal injury.

CUTTING GROOVES (FIG. 40)

DO NOT USE A DADO BLADE, use only the

standard 12 in. diameter saw blade for this

operation.

ŏ Mark lines identifying the width and depth of

the desired cut on the workpiece and position

on the table so the outside tip of the blade is

positioned on the inside edge of the line. Use

a clamp to secure the workpiece beside the

blade.

ŏ Lower the cutting head to the depth marked

on the workpiece, holding the upper arm and

adjust the stop knob (1) until it touches the

stop plate (2).

ŏ Cut two parallel grooves as shown in Fig. 38.

WARNING

Cut these

grooves

with saw

Use a chisel

to cut out the

middle

WARNING
