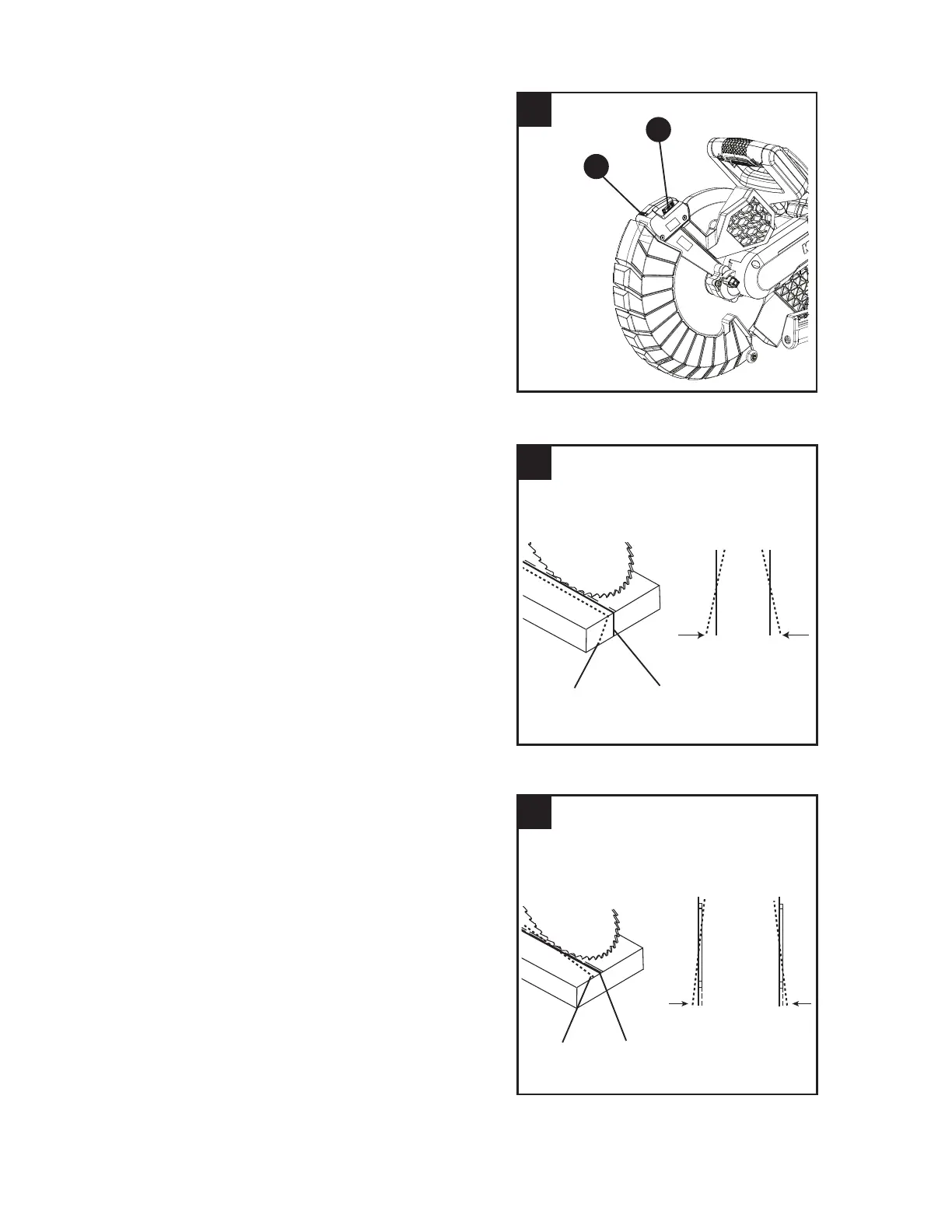

B. Adjusting the Position of the Laser Line
(Fig. 26, 27, 28)
Front Line (Fig. 26, 27)
If the laser line is angled from left to right,
turn the laser vertical adjustment knob (1)
counterclockwise to align the laser line parallel
with pattern line. If the laser line is angled from
right to left, turn the knob clockwise to align the
laser line parallel with pattern line.
Top Line (Fig. 26, 28)
If the laser line is angled from left to right, turn the
laser horizontal adjustment knob (2) clockwise to
align the laser line parallel with pattern line. If the
laser line is angled from right to left, turn the knob
counterclockwise to align the laser line parallel with
pattern line.
After performing the above adjustments, visually
check that both the front and top laser lines are
parallel with pattern line.
NOTE: If you have any problem or questions
concerning the laser guide, call the Customer
Service Department at 1-888-356-2258.
28
27
Laser line
Clockwise
Counterclockwise
Pattern line
Front Line
ClockwiseCounterclockwise
Laser line
Pattern line
Top Line
